Casio V-R100 Service Manual

V-R100
– 19 –

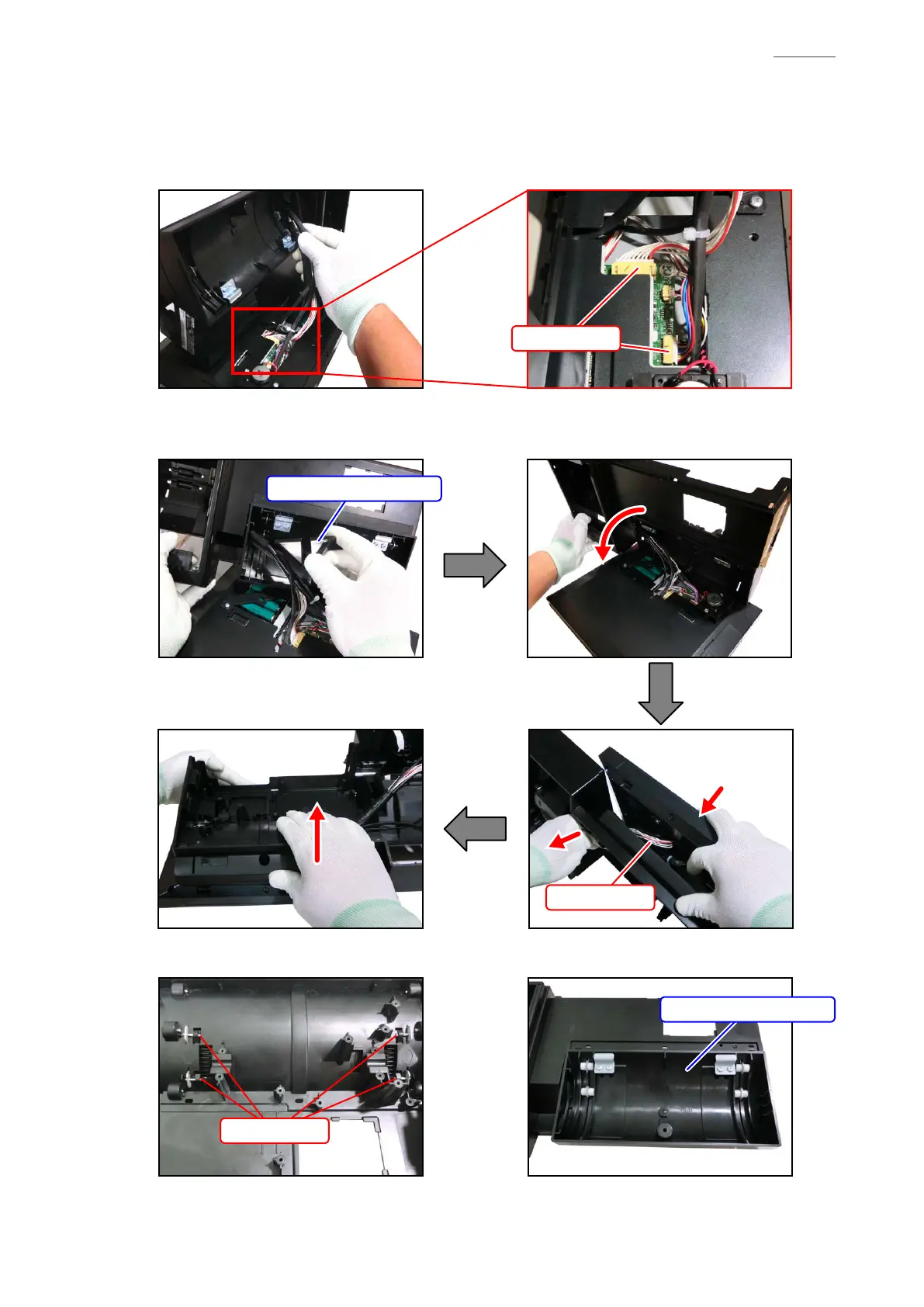

H-3. Extracting four ROLLER-PINs enables to dismount LCD-STAND.
LCD-STAND
ROLLER-PIN
Caution for assembly: Cable for DISPLAY-ASSY
First, let the cable in a tube pass through the hole of the case.
Then make two ground cables pass through the hole.
Caution for assembly: Connectors
Be cautious with connectors not to be disconnected.
Caution for assembly: Mount CABLE-MASK.
Caution for assembly: Conrming the length of the cable, mount DISPLAY-ASSY.
Connectors
CABLE-MASK
Cables
