V-R100
– 20 –

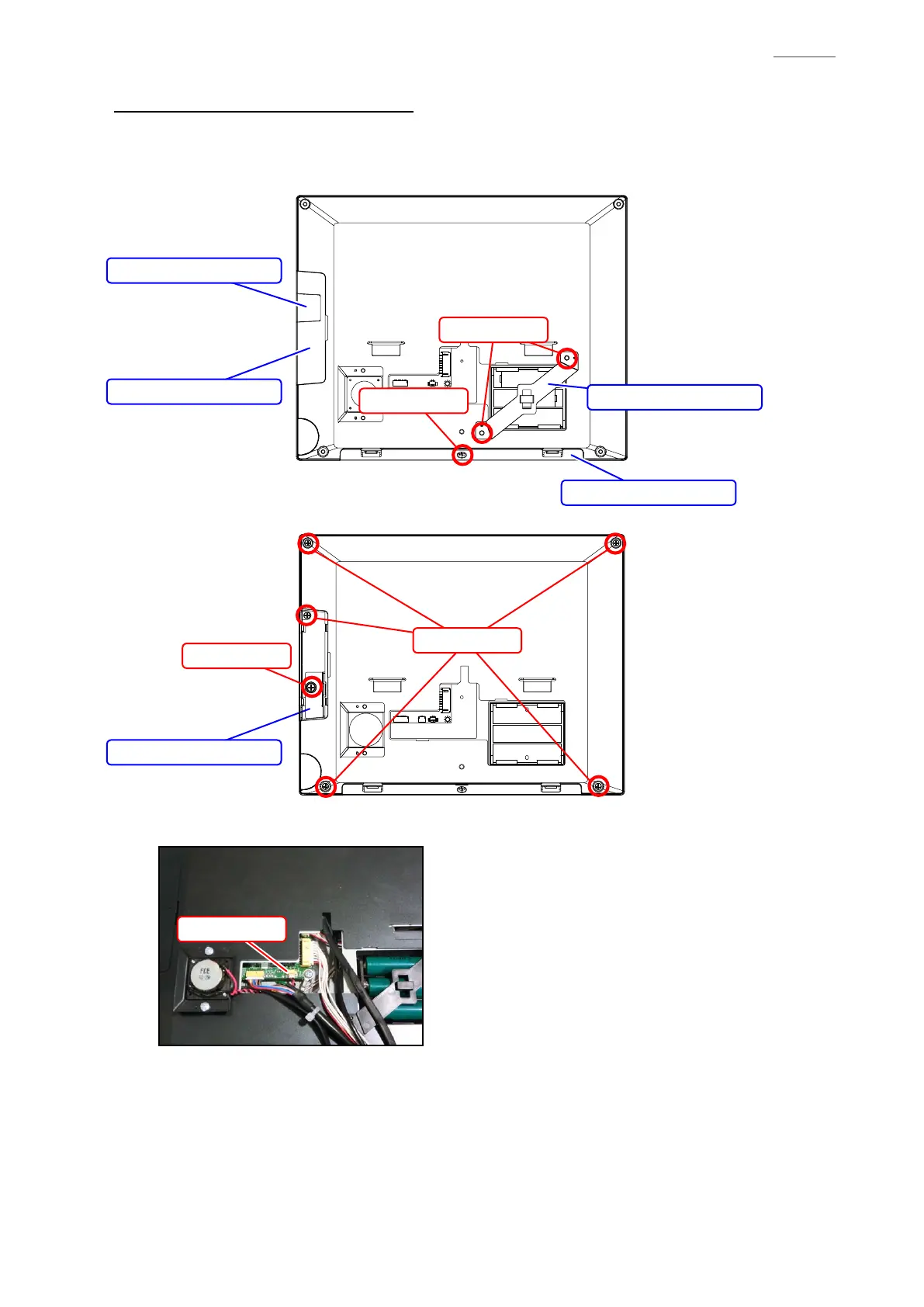

CN-COVER
SD-COVER
BAT-COVER
SHEET-COVER
USB-COVER
Screw (S7)
Screws (S8)
Screw (S7)
Screws (S13)
I. R-CASE-ASSY / HNG CHASSIS
I-1. Remove CN-COVER and USB-COVER.
I-2. Undo one screw and remove SHEET-COVER.
I-3. Undo two screws and dismount BAT-COVER.
I-4. Undo six screws.
I-5. Remove SD-COVER.
I-6. Detach the connector of the speaker.
Connector
