V-R100
– 24 –
L. F-CASE-ASSY (TOUCH-PANEL-ASSY)
L-1. F-CASE-ASSY (TOUCH-PANEL-ASSY)

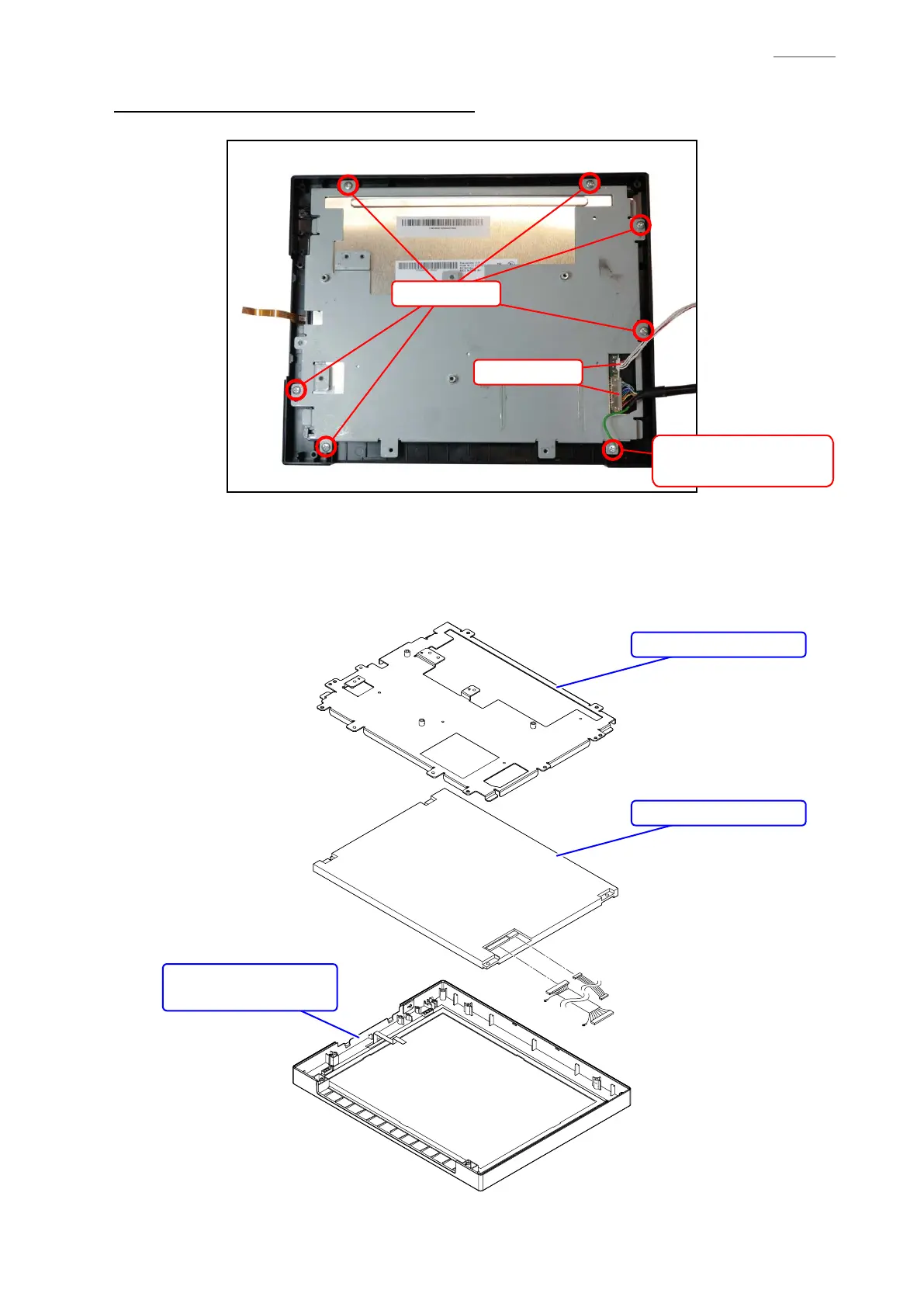

1. Detach two connectors.
2. Undo seven screws.
3. Dismount LCD-CHASSIS.
Connectors
Screws (S10)
LCD-CHASSIS
LCD-UNIT
F-CASE-ASSY
(TOUCH-PANEL-ASSY)
Screw (S10)
Tighten with ground wire.
