Casio V-R100 Service Manual

V-R100
– 23 –

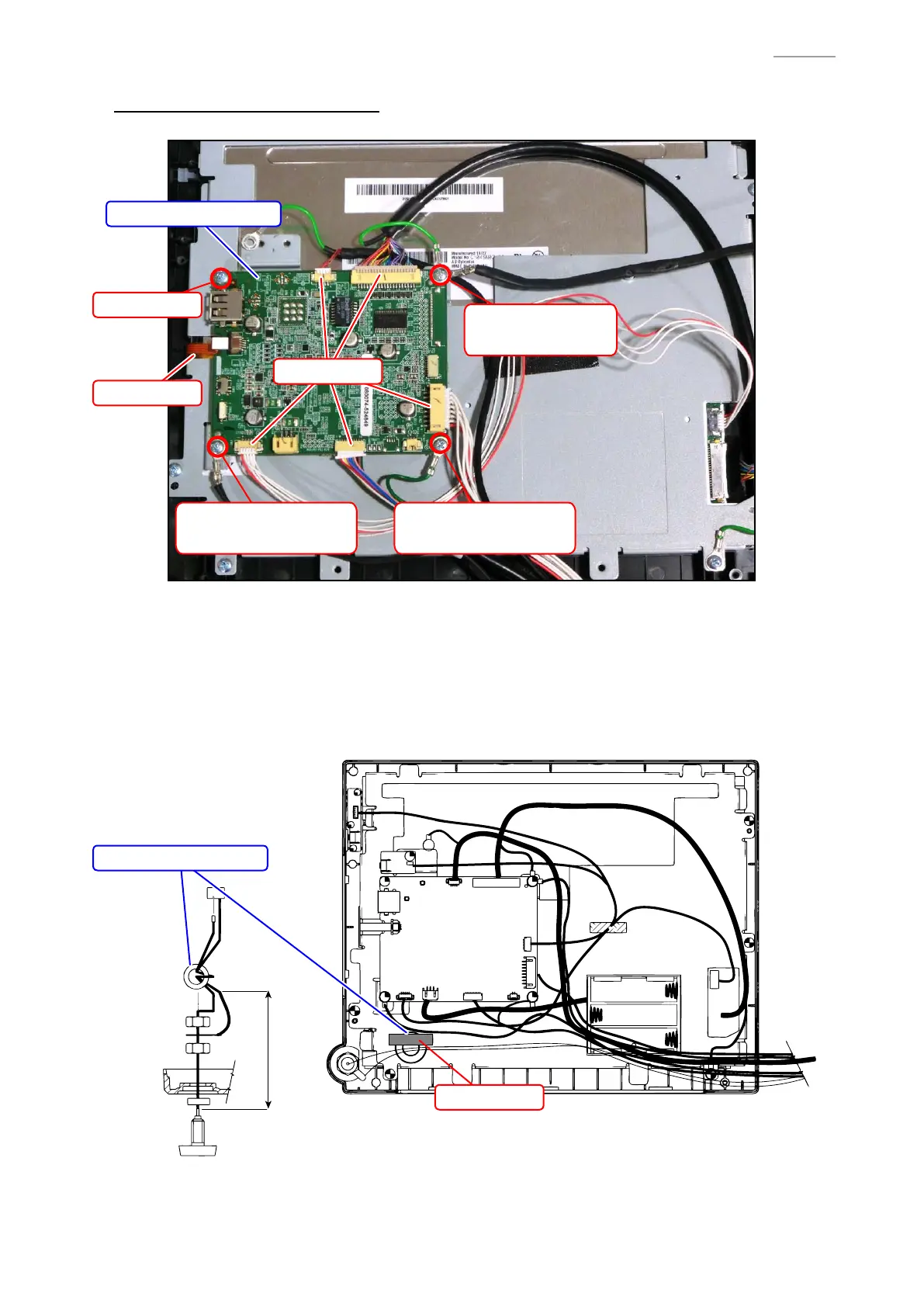

K. E840-1 PCB / DALLAS KEY
K-1. E840-1 PCB
1. Detach ve connectors.
2. Undo four screws.
3. Release the locks of the connector and disconnect one FPC.
4. Remove E840-1 PCB.
K-2. DALLAS KEY
50 mm
2 turn
E840-1 PCB
Screw (S9)
Fixing two ground wires
Screw (S9)
FPC
Connectors
Tape
Ferrite core
Screw (S9)
Tighten with ground wire.
Screw (S9)
Tighten with ground wire.
