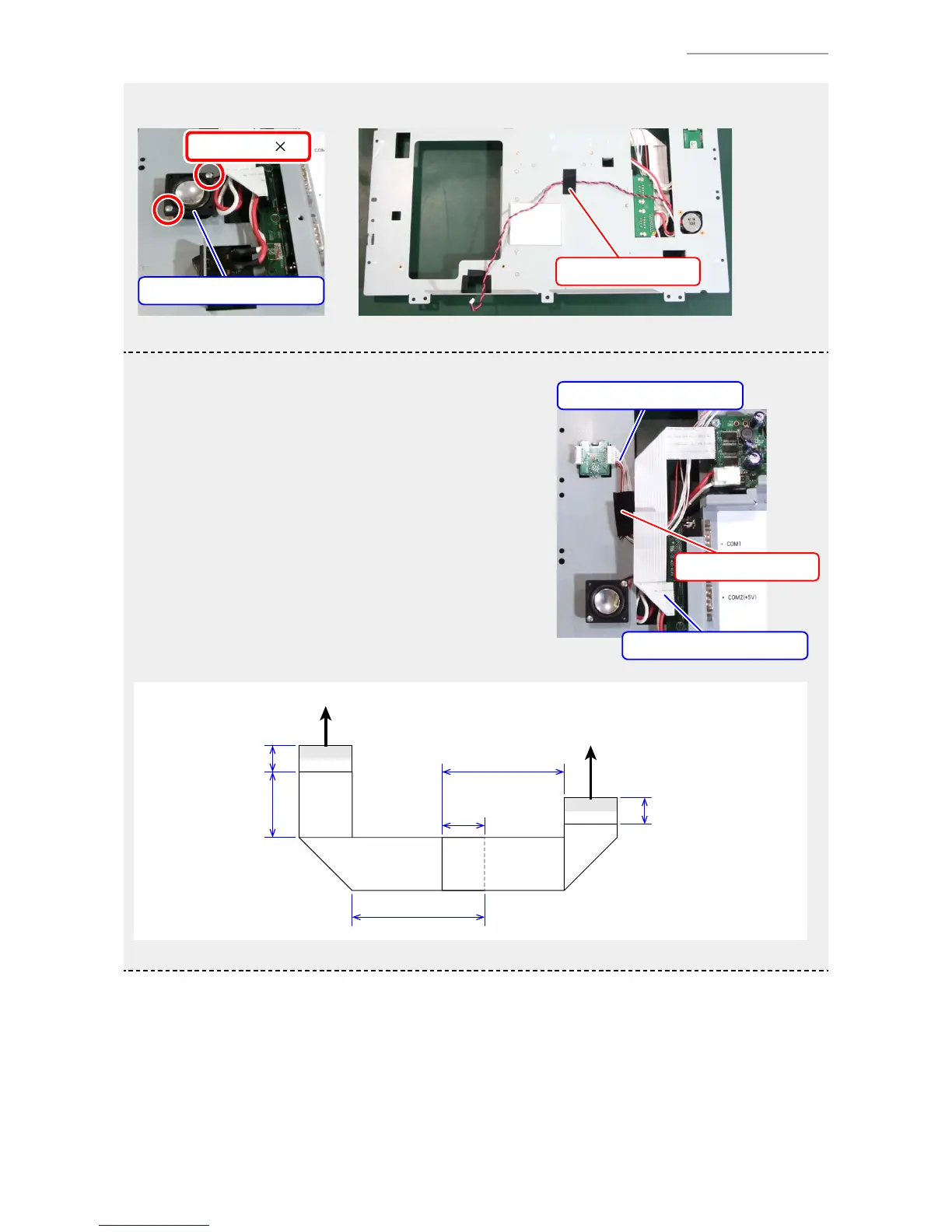

V-R7000/V-R7100
– 40 –
• SPEAKER
Fix with one tape.
SPEAKER
Screw (S6) 2
Tape
• Cable (CABLE/MCR)
Fix with one tape.
Tape
CABLE/FFC/IOC
CABLE/MCR
• FFC (CABLE/FFC/IOC)
When replaced with a new one, fold it as shown below.
30 mm
Reinforcing plate
Reinforcing plate
50 mm
15 mm
45 mm
E870-IOC
E870-COM
