Casio WK-1600 User Manual

E-13
Sustain Pedal
• With piano tones, depressing the pedal causes notes to linger, much
like a piano’s damper pedal.
• With organ tones, depressing the pedal causes notes to continue to
sound until the pedal is released.
Sostenuto Pedal
• As with the sustain pedal function described above, depressing
the sostenuto pedal causes notes to be sustained.
• The difference between a sostenuto pedal and sustain pedal is the
timing. With a sostenuto pedal, you press the keys and then de-
press the pedal before you release the keys. Only the notes that are
sounding when the pedal is depressed are sustained.
Soft Pedal
Depressing the pedal softens the sound of the notes being played.
Rhythm Start/Stop Pedal
In this case, the pedal performs the same functions as the START/
STOP button.

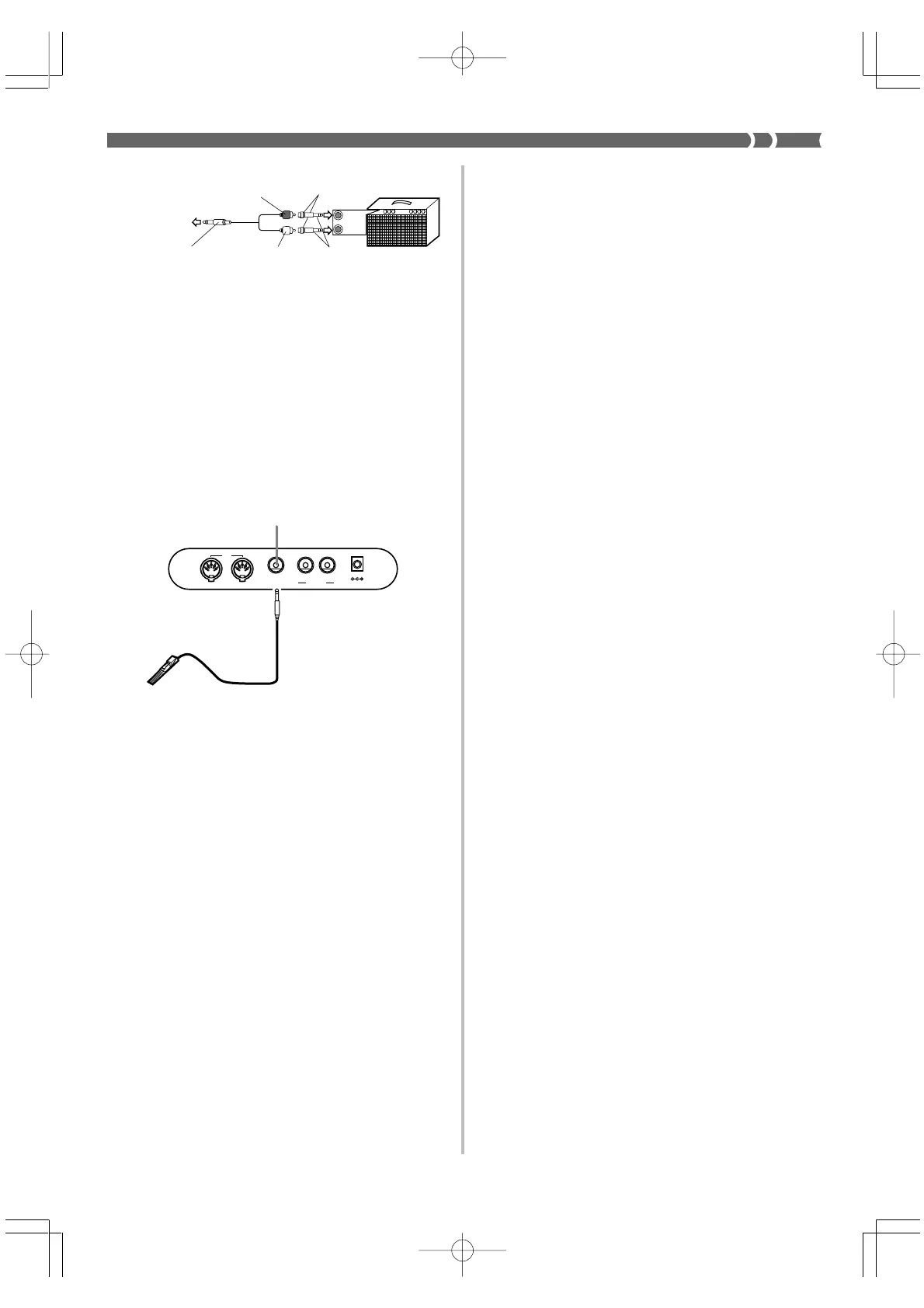

OUT IN
SUSTAIN/
ASSIGNABLE JACK
MIDI
LINE OUT
R L/MONO
DC 12V
SP-10
SUSTAIN/ASSIGNABLE JACK Terminal
INPUT1
INPUT2
PINjack
PIN plug (red)
PINplug(white)
Standardplug
Stereostandardplug

Tokeyboard's
PHONES/OUTPUT
terminal
Keyboard
or
guitaramp
733A-E-015A
❚ NOTE ❚
You can also connect the keyboard’s MIDI terminal to a computer or se-
quencer. See “MIDI” on page E-60 for details.
Sustain/Assignable Jack Terminal
You can connect an optional sustain pedal (SP-2 or SP-10) to the SUS-
TAIN/ASSIGNABLE JACK terminal to enable the capabilities de-
scribed below.
For details on how to select the pedal function you want, see “As-
signable Jack Function” on page E-59.
Connection Example
Accessories and Options
Use only the accessories and options specified for this keyboard. Use
of non-authorized items creates the danger of fire, electrical shock,
and personal injury.
WK-1800/1600(E)-08~15 03.7.31, 5:20 PMPage 13 Adobe PageMaker 6.5J/PPC
