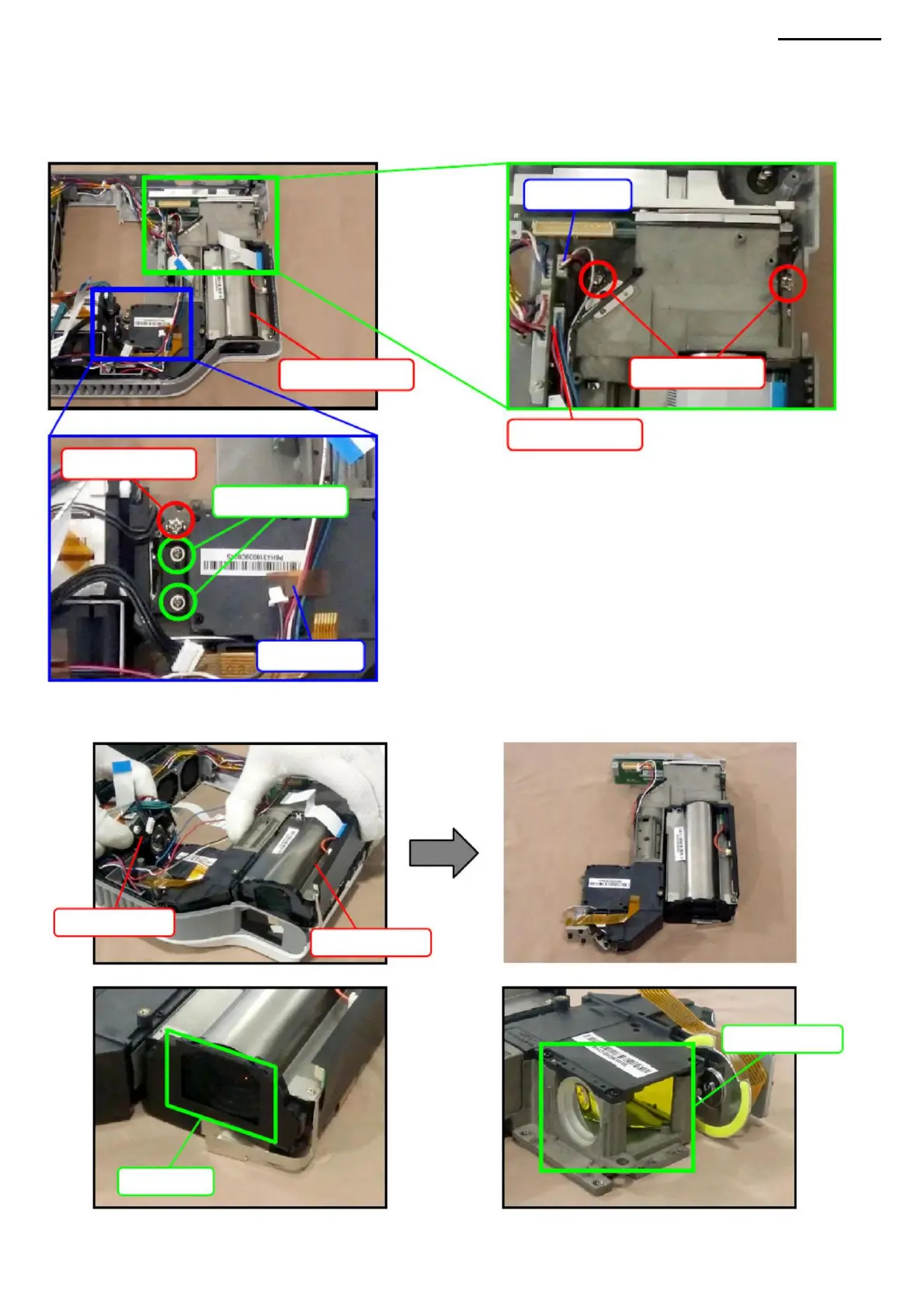

F. OPM MODULE
NOTE: Do not touch lens and reflector.
Screws (S9)
SALARY PWB-3
XJ-A240/A245
Screw (S6)
F-2. Remove the tape securing the fan B cables.
F-4. Lifting the LSB module slightly, remove the OPM module. NOTE:
When removing the LSB module and the OPM module, be careful not to touch the components around them.
F-1. Disconnect the connector attached to the PWB-3 board.
Tape
Connector
ORM MODULE
F-3. Unscrew five screws (S6, S9).
LSB MODULE
Screws (S6)
ORM MODULE
Lens
-22-
