Lens
Lens mounting plate
Reflector
Screws (S6)
Bushing

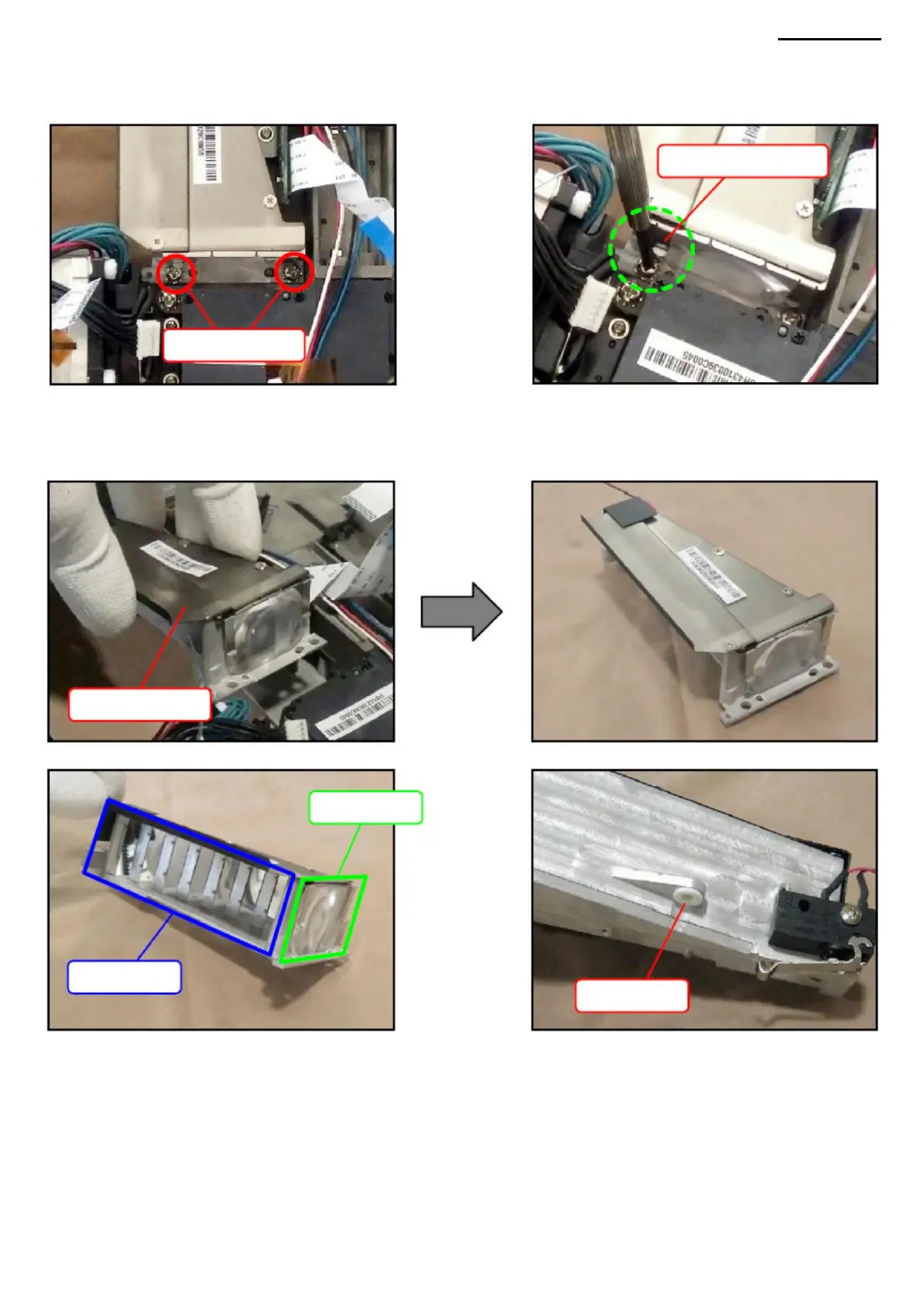

E-4. Remove the LSA-M module.
NOTE: Do not touch lens and reflector. NOTE: A bushing (S7) is
installed in the screw hole. Don't lose her.
XJ-A240/A245
MODULE LSA-M
E-3. Unscrew the two screws (S6).
NOTE: Be careful not to touch the lens mounting plate with the screwdriver.
-21-
