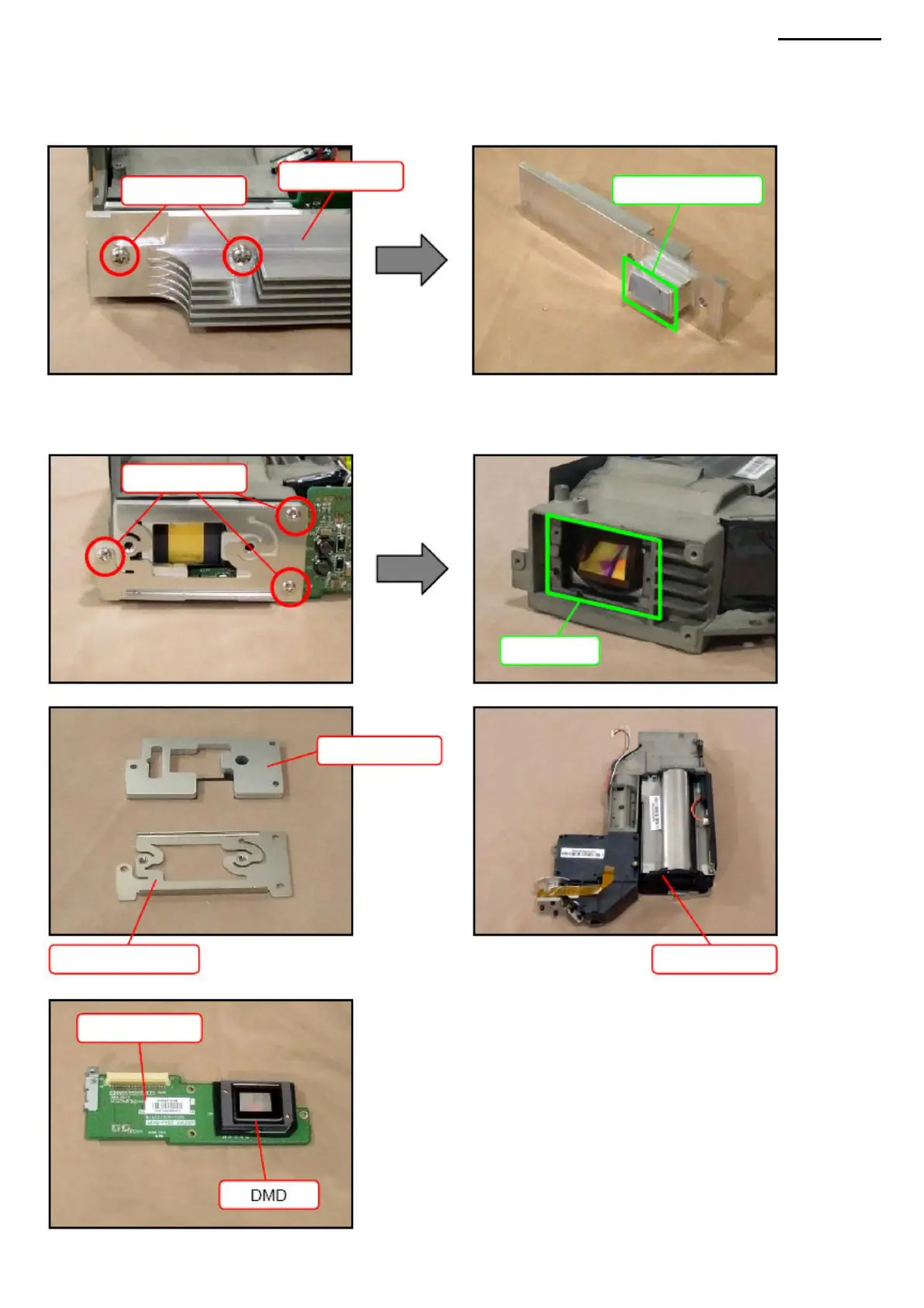

G. OPM/DMD/PWB-2 BOARD G-1. Unscrew
the two screws (S18) and remove the heatsink. NOTE: Do
not touch the heat shield attached to the heatsink.
Screws (S17)
Radiator
Salary PWB-2
Lens
Screws (S18)
heat shield
Salary DMD
XJ-A240/A245
Block ORM
G-2. Remove three screws (S17), remove DMD, PWB-2 board, DMD board and DMD-SP board.
NOTE: Do not touch the DMD and lens.
Salary DMD-SP
-24-
