Section D. ACS System Operations

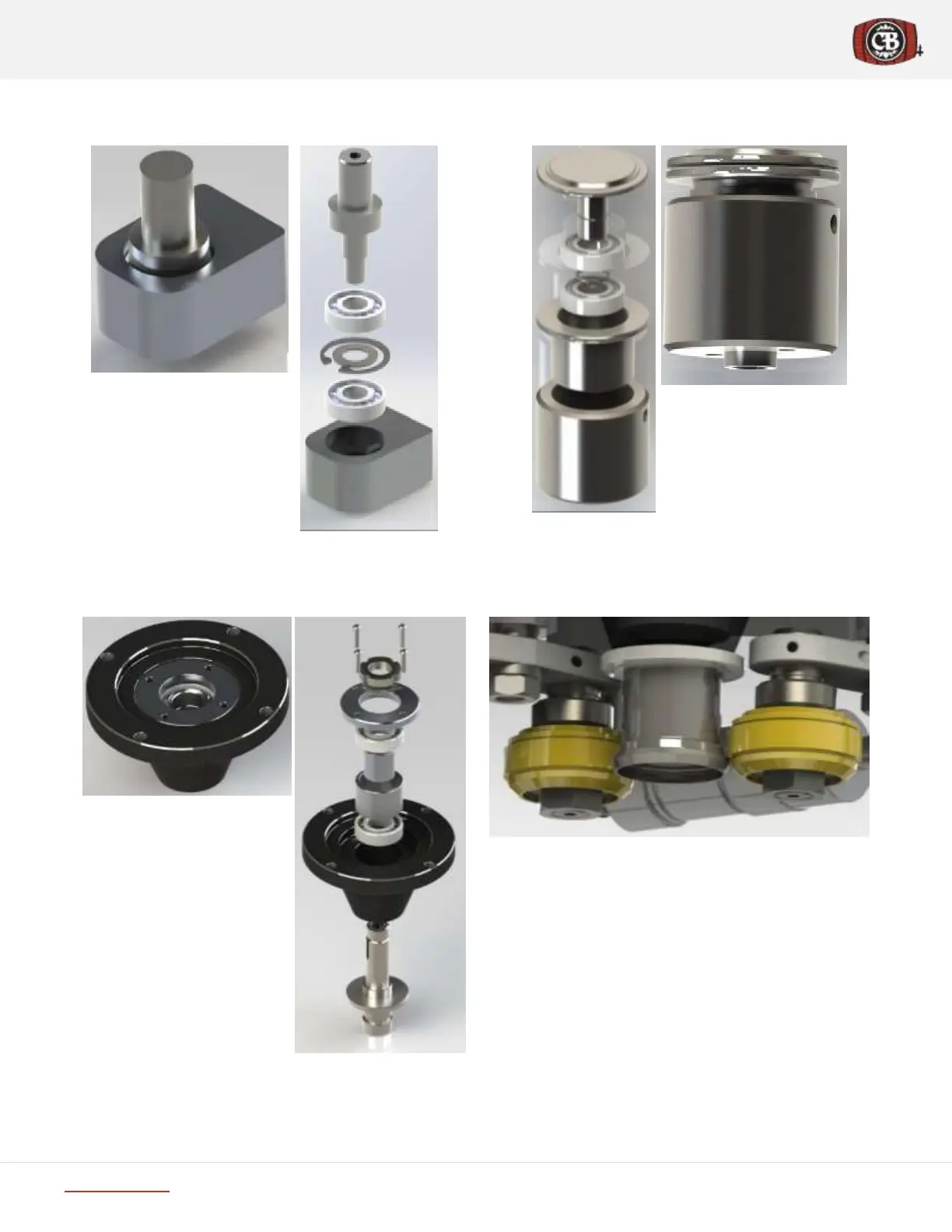

Figure 21 Exploded view of seamer pivot shaft assembly (1) and can table mount assembly (2)
Figure 22 Exploded view of (1) seamer spindle house assembly and labelled view of (2) seaming roll
1
2
A
B
C
D
E
A. Can Ball Top
B. Bearing
C. External Retainer Ring
D. Can Ball Top Male
E. Can Ball Top Female
1
A
B
C
E
D
A. Pivot Shaft Spindle
B. Bearing
C. Internal Retainer
Ring
D. Internal Shim
E. Adjuster Block
1
2
A
B
C
D
E
F
A
B
C
D
E
A. Spindle Housing
Bearing Retainer
B. Bearing
C. Inner Bearing Spacer
D. Outer Bearing Spacer
E. Spindle Housing
F. Seamer Spindle
A. Seaming Roll
B. Seaming Roll
C. Seaming Tool
D. Seaming Roll Spindle
E. Pivot Arm
