Section F. Can Seamer

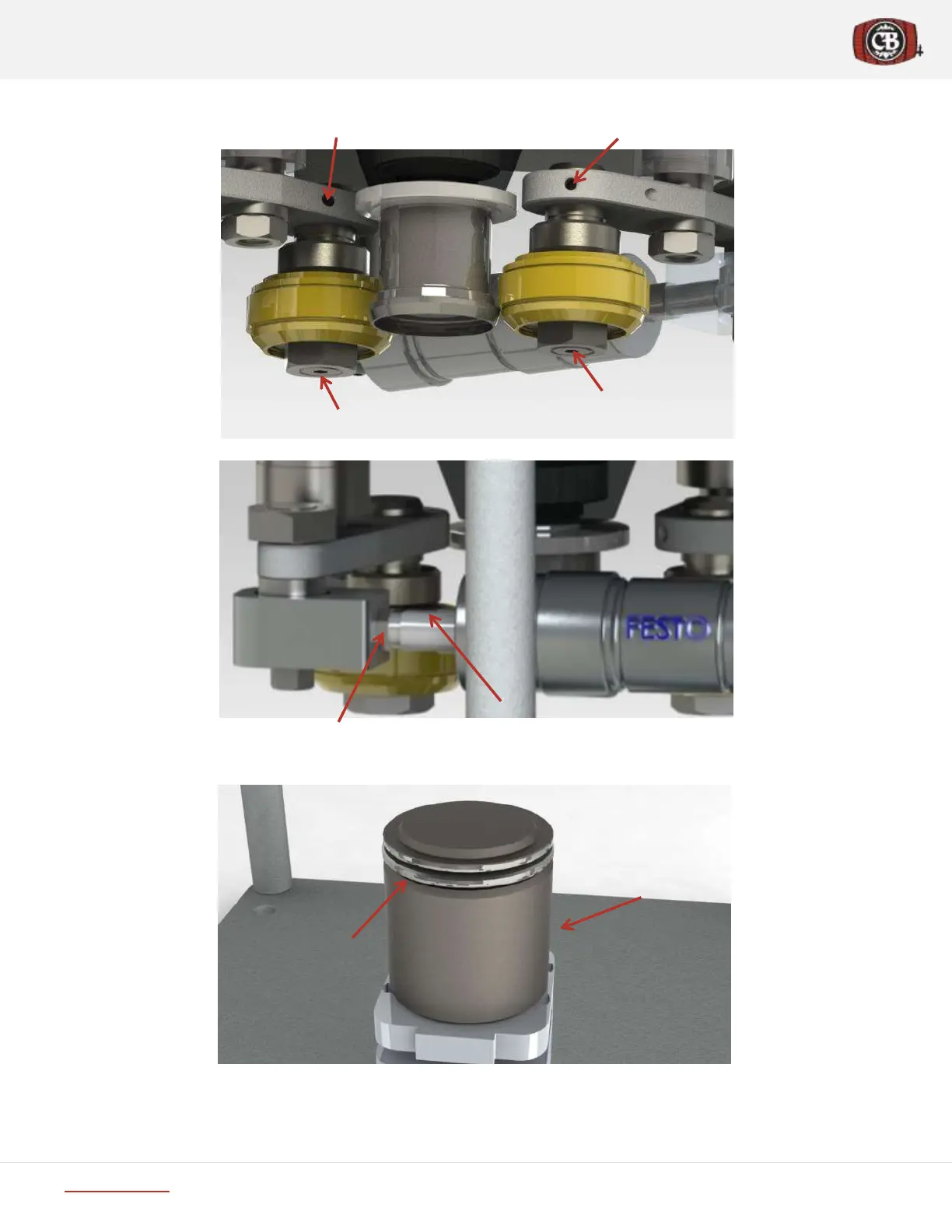

Figure 39 Can Seamer Adjustments
To ensure that the seam stays within specifications the following adjustments can be made.
Can Platform
Height Set Screw
(on back of table)
Can Platform
Height Adjust
CW – DOWN
CCW - UP
Turn clock-wise to
raise seam wheel
Seam Roll Height Set Screw
Seam Roll Height
Set Screw
Turn counter clock-wise to
lower seam wheel
Seam Wheel Lock Nut
Seam Wheel Proximity Adjustor
CW – In, CCW - Out
