Section F. Can Seamer

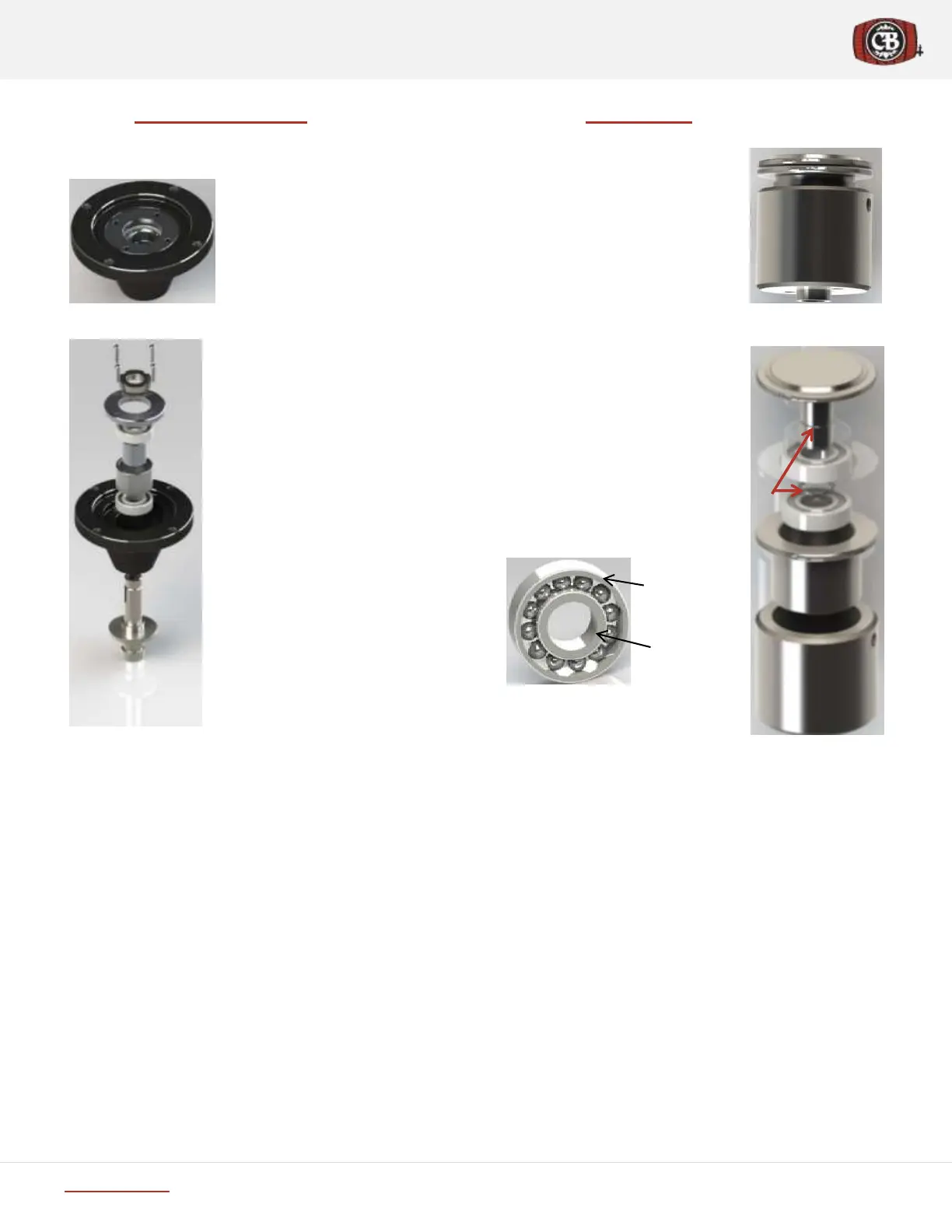

Figure 43 Spindle and Can Table Bearing Replacement schematic
IMPORTANT: WHEN INSTALLING BEARINGS ON SHAFT ALWAYS
PRESS ON THE INNER RACE. WHEN INSTALLING IN HOUSING
ALWAYS PRESS ON OUTER RACE.
SPINDLE HOUSING
CAN TABLE
1. Spindle
2. Spindle Housing, place
over top of spindle
3. Bearing slide onto Spindle
and into Spindle Housing
4. Spindle Housing Bearing
Spacer
5. Spindle Bearing Spacer
6. Bearing slide onto Spindle
and into Spindle Housing
7. Bearing Retainer Ring & 4
Bolts
8. Lock washer & Spanner
Nut
1
2
3
4
5
6
7
6
5
4
3
2
1
1. Can table top
2. Slide Bearing onto Shaft
3. Install Snap Ring Retainer into
Groove
4. Slide Second Bearing onto Shaft
5. Insert bearings and Can Table
Top into Can Table Top Housing
(External Threads)
6. Screw Table Top Housing into
Mate (#6)
INNER
RACE
OUTTER
RACE
Collapsed View
Exploded View
8
Collapsed View
Exploded View
