Cata INSB 6003 BK - Selection of Installation Equipment

4
• Make sure that you use heat-resistant and easy-to-clean finishes
(such as ceramic tiles) for the wall surfaces surrounding the hob.
• Ensure the hob will not be installed directly above a dishwasher,
fridge, freezer, washing machine or clothes dryer, as the humidity may
damage the hob electronics.
• Make sure that the appliance is installed in such a way that allows for
better heat radiation in order to enhance the products reliability.
Installation
SELECTION OF INSTALLATION EQUIPMENT

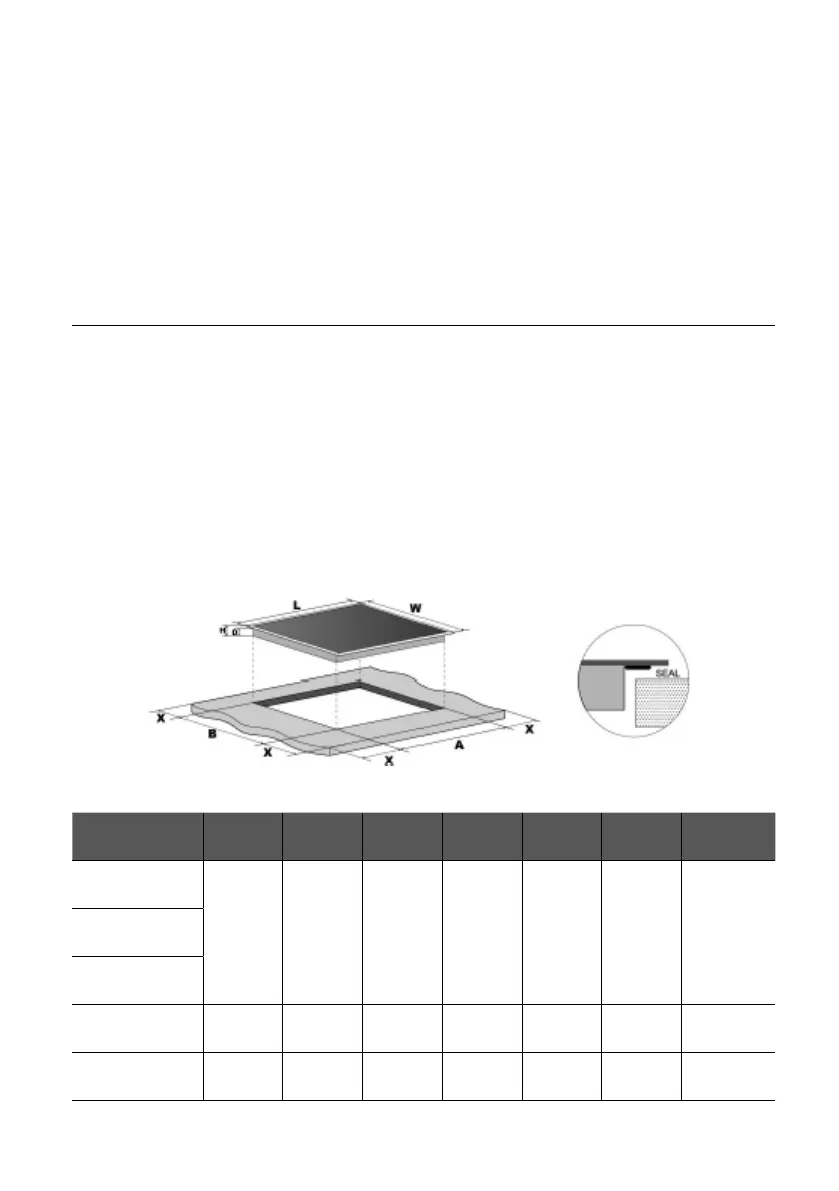

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall
be preserved around the hole.
Be sure the thickness of the work surface is at least 30 mm.
Please select heat-resistant work surface material to avoid any large
deformation caused by the heat radiation from the hotplate.
MODEL
L
(mm)
W
(mm)
H
(mm)
D
(mm)
A
(mm)
B
(mm)
X
(mm)
INSB 6003 BK
590 520 58 54 565 495
50
(minium)
INSB 6003 X
INSB 6004 BK
INSB 8021 BK 800 520 590 56 745 495
50
(minium)
INSB 9012 BK 900 520 590 56 875 495
50
(minium)
