FH100 Precision Variable-Speed Peristaltic Pump System Operating Manual 3-1Cole-Parmer
Inserting Tubing
Section 3 Operation
WARNINGS: Tubing breakage may result in fluid being sprayed
from pump. Use appropriate measures to protect operator and
equipment.
Turn Pump System off before removing or installing tubing.
Fingers or loose clothing could be caught in the pump
mechanism.
CAUTION: To avoid electrical shock, the power cord protective
grounding conductor must be connected to ground. Not for
operation in wet locations as defined by EN61010-1.
If the product is not used in a manner specified in the
instructions, the protection provided by the equipment
may be impaired.
The Pump Head has two tubing retainers, which hold tubing in place.
The occlusion bed retracts when you open the pump door and moves
forward when the door is closed.
To load tubing into the Pump Head do the following:
1. Make sure that the power switch is turned OFF.
2. Open the Pump Head door using the side latch.
3. Install any tube fittings, inserts or clamps before loading the tubing.
4. Open the top tubing retainer by using just one finger to open the
retainer, install tubing and release the retainer.

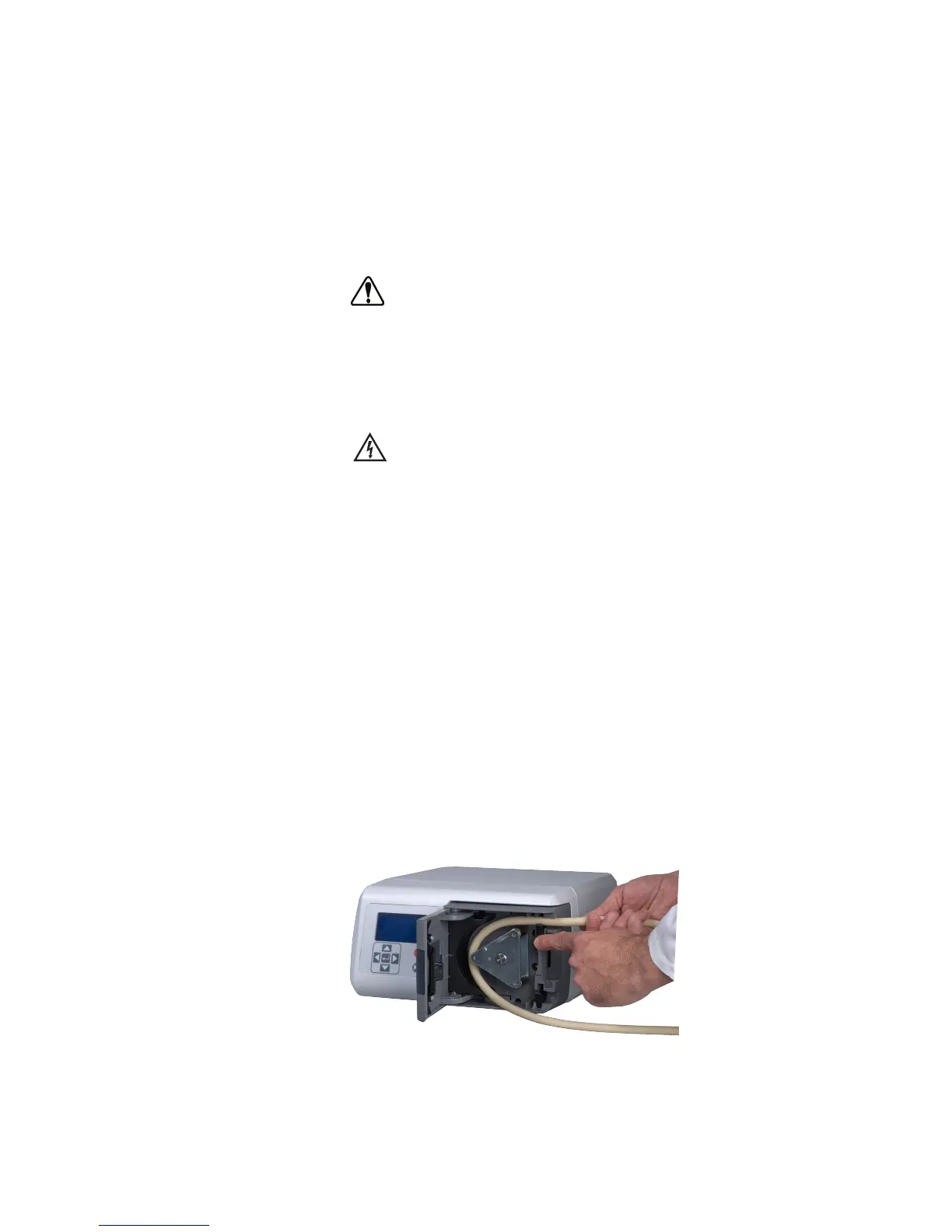

Figure 3-1. Tube Loading Upper Retainer
