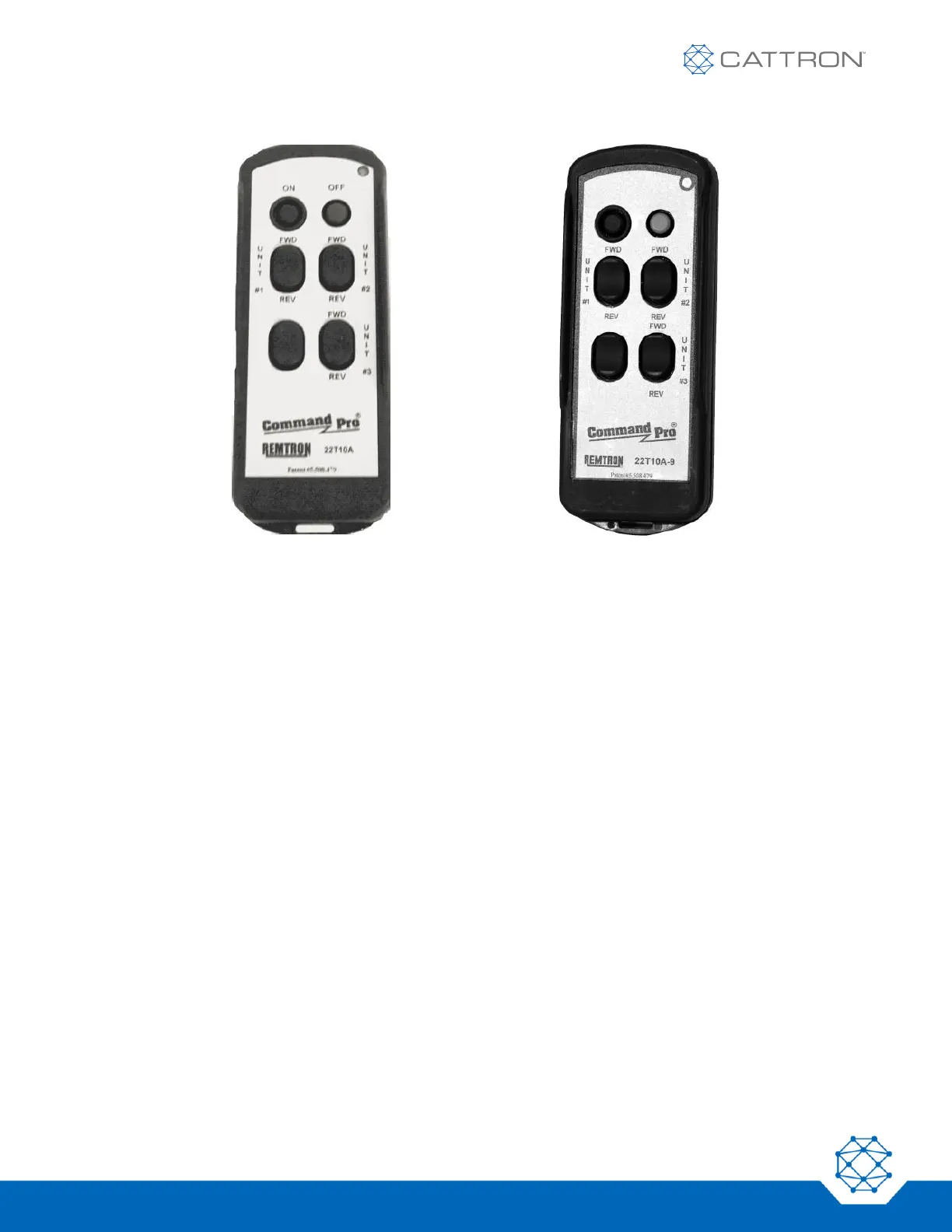

Figure 1: 22T10A Transmitter Maintained Link and Utility Mode
5.2 Transmitter Safety and Operational Features
The following describes the functions and operational features of the 22 Series transmitter. Refer to Figure 1.
5.2.1 Status LED
The status LED provides an indication of the transmitter operation. Refer to the Status LED Troubleshooting Chart
for a detailed description of the status LED indications.
5.2.2 Command Switches
The command switches are active only while depressed. Releasing a switch will stop a motion or function.
• If opposing commands are attempted, i.e., pressing the rocker-switch top and bottom at the same time,
no function will result
• Maintained ‘ON’ or ‘OFF’ functions require separate commands for ON and OFF. The 22T10A
(Maintained Link Mode) transmitter offers the following additional features:
Radio On
‘Radio On’ puts the system in the active mode. The transmitter will remain active until the STOP button is pressed
or the transmitter turns itself off. The transmitter may be programmed to turn itself off if no commands have been
sent for a predetermined time. Normally this function is disabled for STOP controls.
STOP
While depressed, this button sends a STOP command to the receiver. The transmitter does not need to be
actively ‘ON’ to send this command. When this button is released, the transmitter will be switched off.
