Cattron CT24 Series - Page 18

CT24 MCU
User Manual
18
9M02-7608-A001-EN
Version 2.0

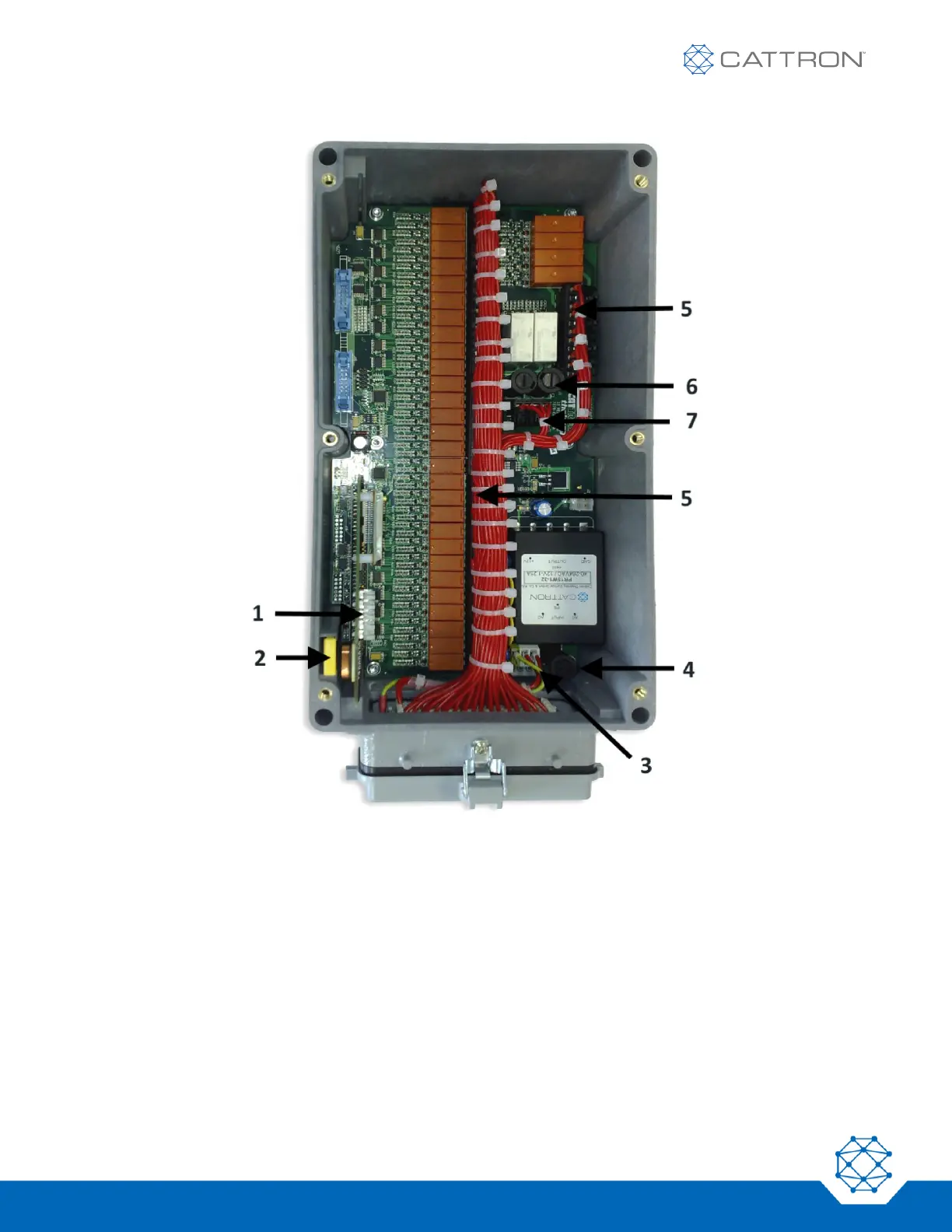

Figure 5: CT24-32 MCU
NB: Optional HAN style connector shown fitted
The following items are identified in Figure 5:
1. Status-LEDs
2. TransKey
3. Terminal main voltage
4. Fuse mains
5. Removable terminal strips for function relays
6. Fuses for main contactor safety relays
7. Terminal strip for main contactor safety relays
