CT24 MCU
User Manual
23
9M02-7608-A001-EN
Version 2.0

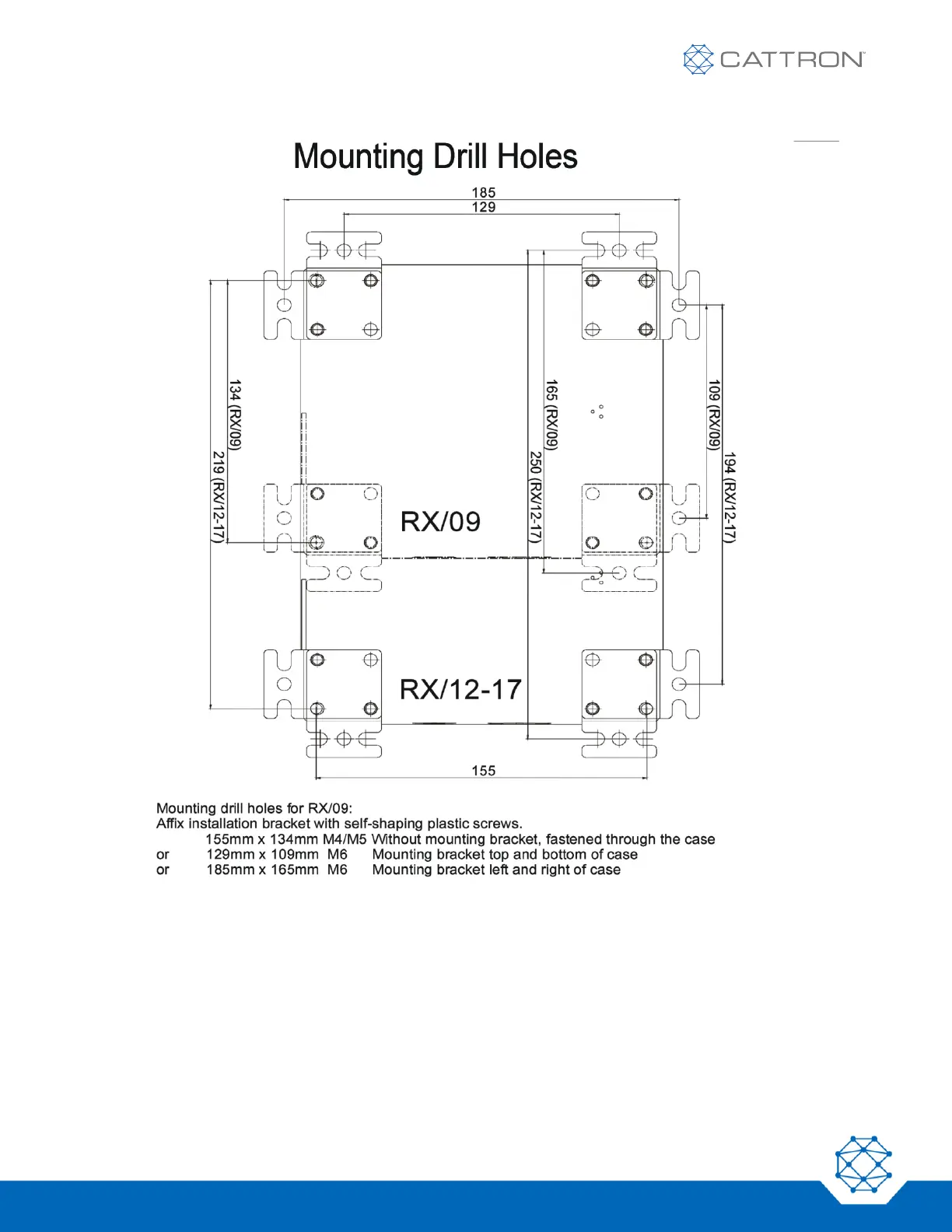

Figure 9: CT24-9 and CT24-17 MCU Enclosure Mounting Drilling Drawings
