Guideline and grid properties window contains the following features:
Naming and rotation angle for horizontal guidelines
Naming and rotation angle for vertical guidelines
Calculation of distances between selected guidelines (up to 4 distances)
Options for how to display guidelines, guideline names and calculated distances on the
screen
Grid spacing and precision

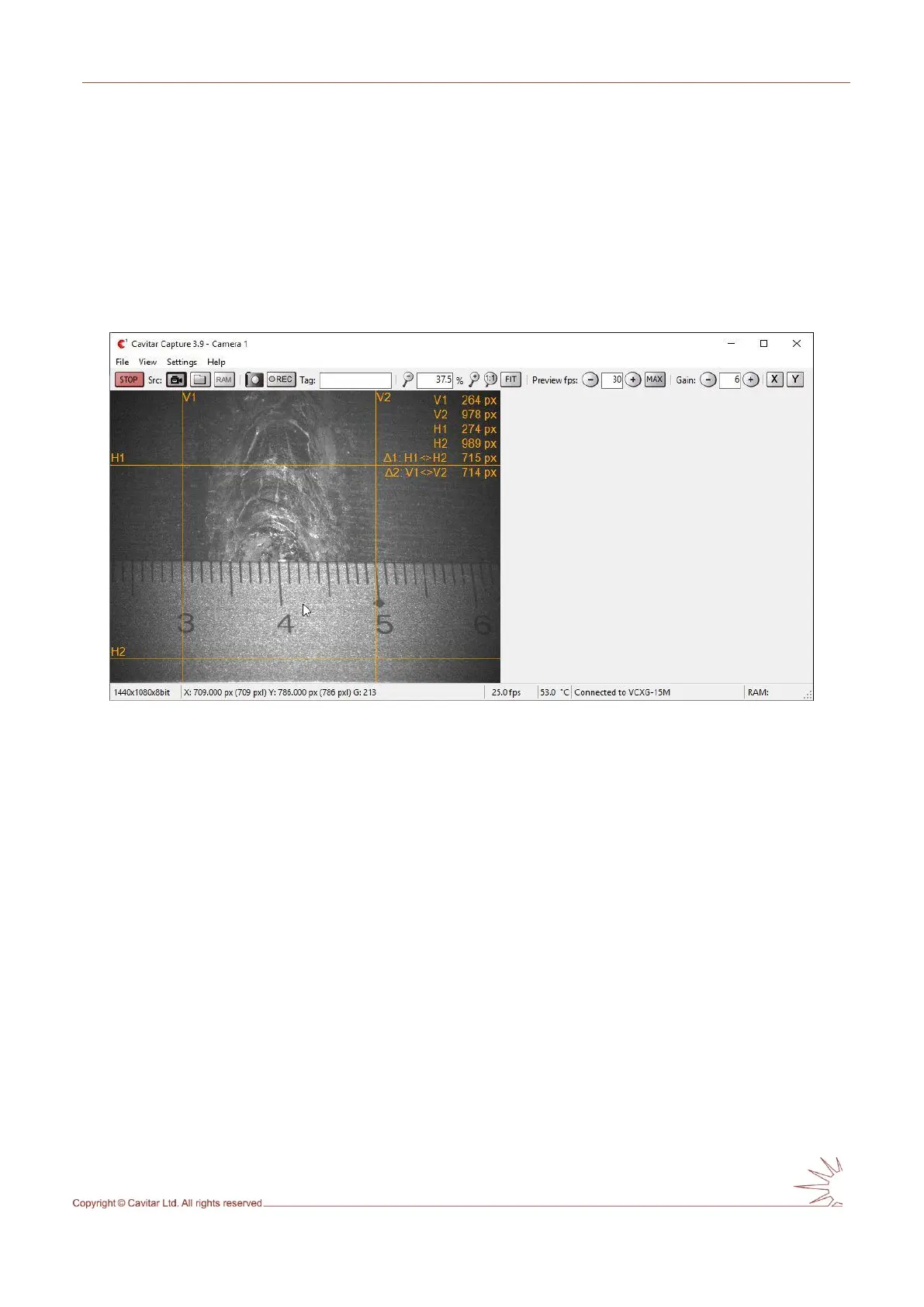

Fig. 5.17 shows the view after selecting lines for 1 and 2 and pressing “OK” in Fig. 5.16.
Fig. 5.17. Guidelines with calculated distances.
5.2.7 Calibration
Calibration feature enables the calibration of the image so that instead of pixel values it is
possible to get actual measures from the images in the desired unit (e.g. mm).
To calibrate the image, select “Calibration…” from “Settings” menu. This will open the
Calibration window (see Fig. 5.18).
