Technical manual 12/13/14VAC Power supply v1.3EN

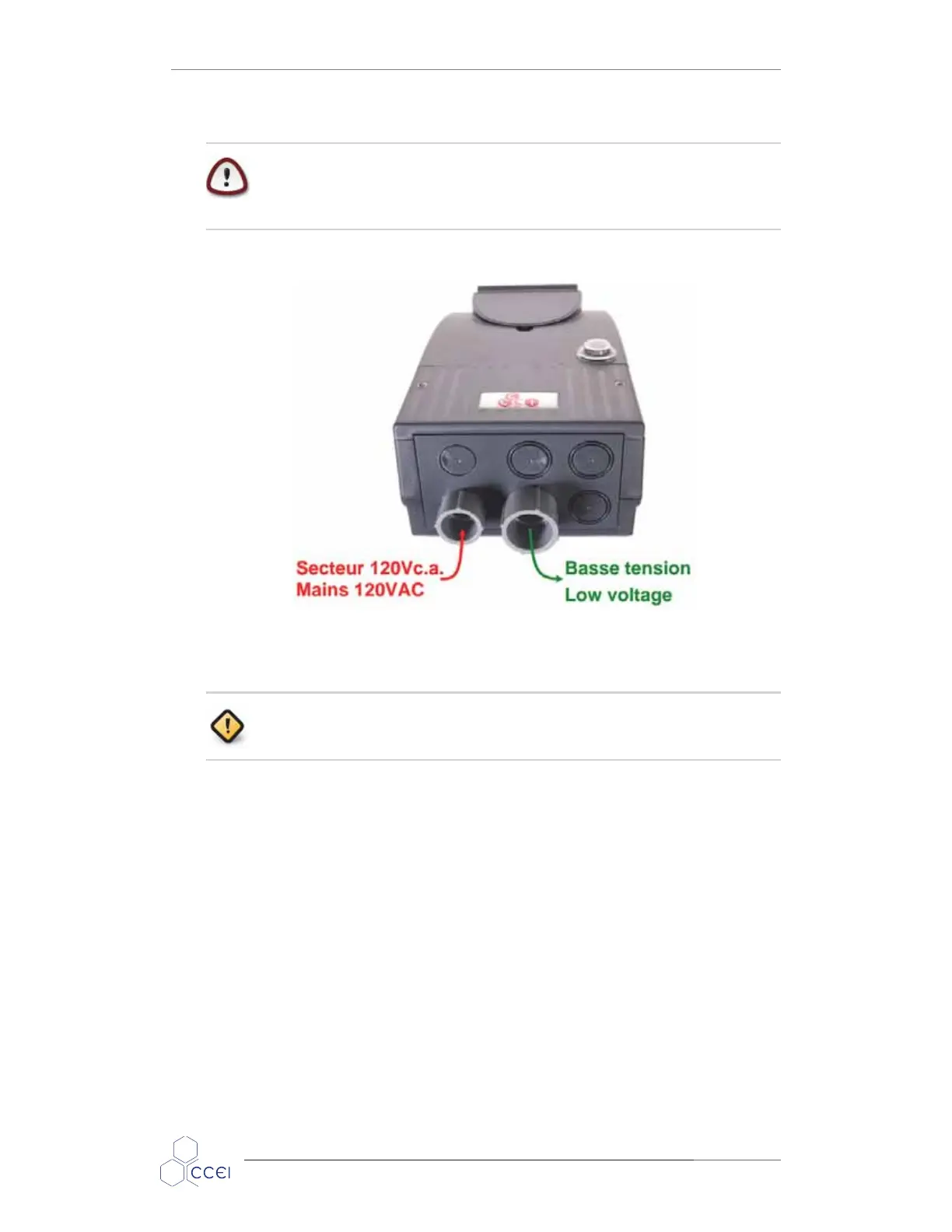

5.2. Electrical connection
Installation of this project involves a hazard of electric shocks. We strongly rec-
ommend you contract a professional installer. Incorrect installation places you in
danger and may irreversibly damage the product and the equipment connected
to it.
The box resists projected water but must not be placed in any place liable to flooding. To maintain its
water-tightness, the 2 screws on the front must be tightly fastened.
The supply box must be powered using 120V single phase current with 60Hz, and protected by a class A
differential device (ground fault circuit interrupter (GFCI)), capable of providing a sufficient intensity
(2A min). The cable section used for the supply must be suitable and functional over its entire length.
Green wire, on primary, has to be connected on earth conductor.
ccei.ca
4
