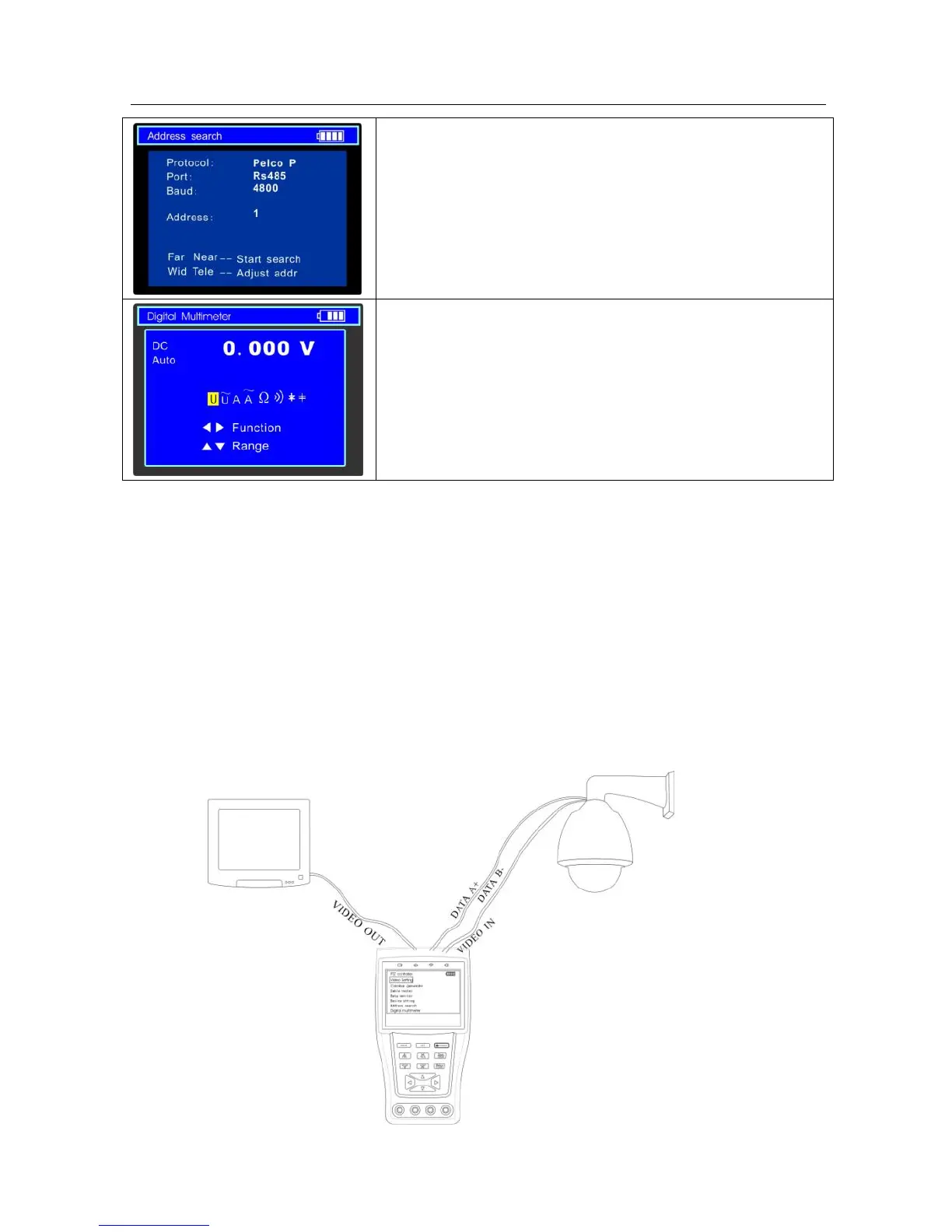

8. Digital Multimeter
Digital Multimeter performs AD/DC Voltage, AC/DC Current,
Resistance, Continuity, Capacitance and Diode test, Auto /
Manual Range, Data hold, Relative measuring.
3.3 PTZ Controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the
controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set
and call preset position.
The following connections should be confirmed before use
a. The Video In interface of the CCTV testerPRO and the output interface of camera
b. Data A+ of the CCTV testerPRO and A+ of the PTZ camera or controlling device, data B- of
the instrument and B- of the PTZ camera or controlling device
Note: Don’t connect communications interface with a circuit the voltage higher than 6V.
