CCTV tester PRO User’s Manual
Page.26.

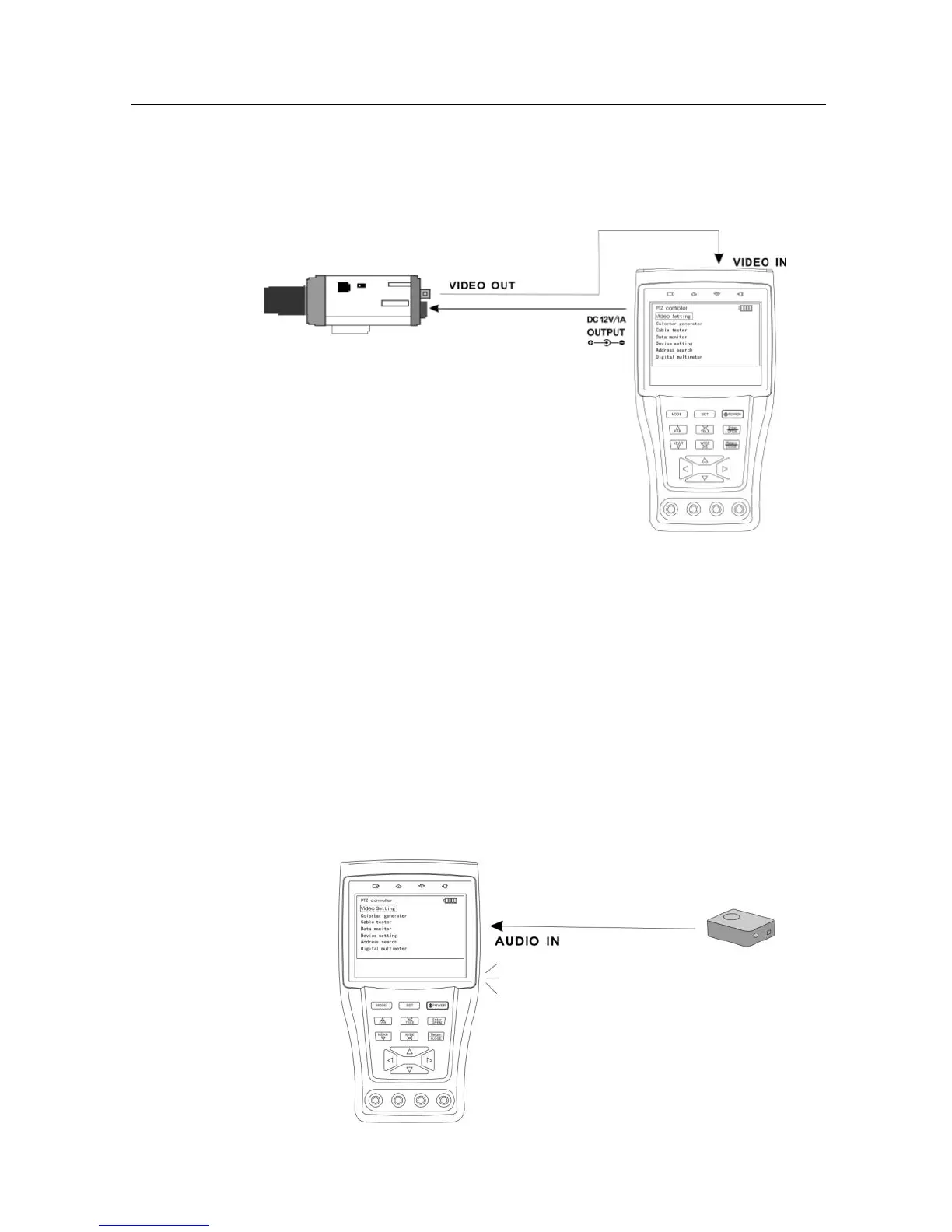

4. DC12V 1A power output
Power the camera with DC12V(1A) power output from the tester. It is helpful for demo and testing
where there is no power supply available.
Notice
a. Don’t input any power into the “DC12/1A OUTPUT” port of the CCTV tester to avoid destroy.
b. Don’t output this DC12V/1A power to the power input port of the CCTV tester to avoid destroy.
c. When the requirement of the camera is higher than 1A, the CCTV tester will enter protection
mode. Disconnect all the connections of the CCTV tester and then connect the CCTV tester with
power adaptor to resume the CCTV tester.
5. Audio input test
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
