Extraction mode
For extraction mode, set the lever “L” (Fig. 5) to position “A” (the left
hand side). The extracted air is then routed through the outlet “C” (Fig.
4).
Recirculation mode
For recirculation mode, set the lever “L” (Fig. 5) to position “F” (the

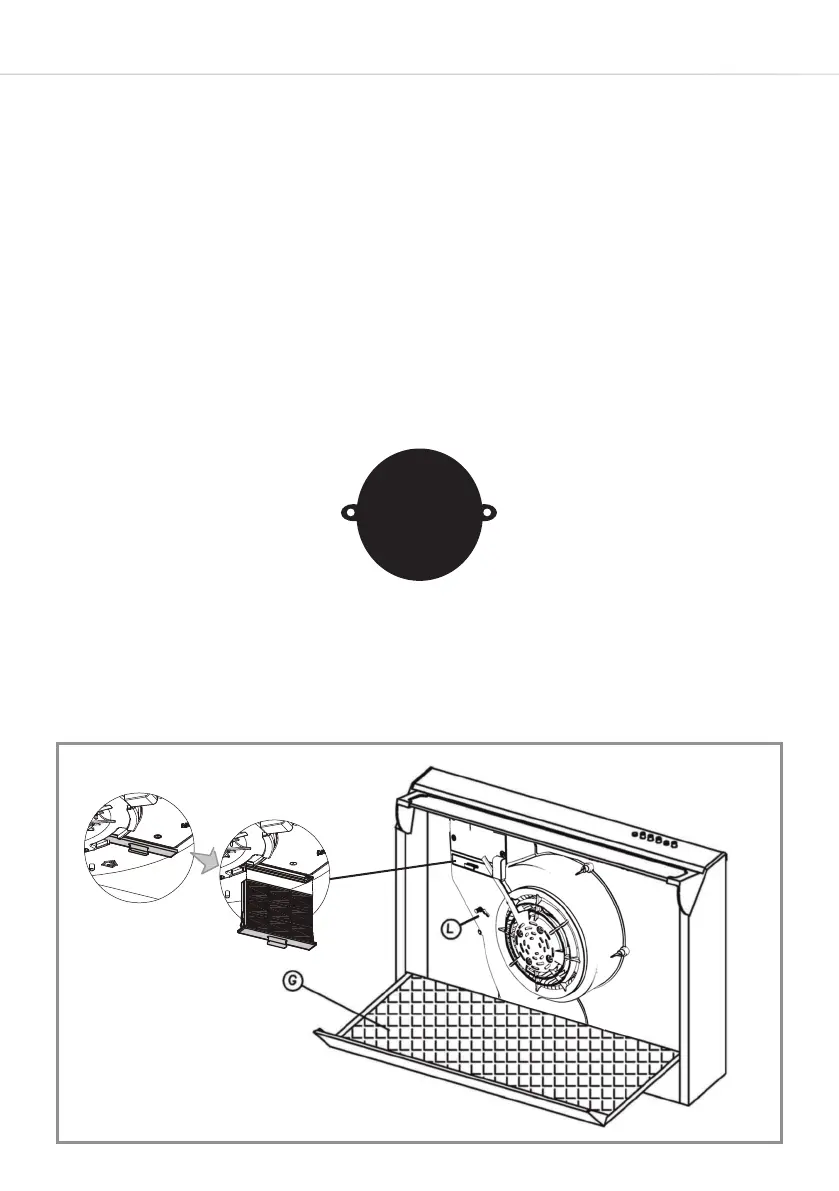

right hand side). Then, fit the outlet cover (pictured below) to the outlet
marked ‘C’ in fig. 4. Secure this cover in place with the two screws
provided.
Fitting the charcoal filter
For recirculation mode, fit a filter to the motor assembly. Remove any
old filter first and then insert a replacement until it clicks into place
(Fig. 6).
