Selecting operating mode
When setting up this extractor it is necessary to set an internal lever to
select either “extraction” (A) or “recirculation” (F) mode.

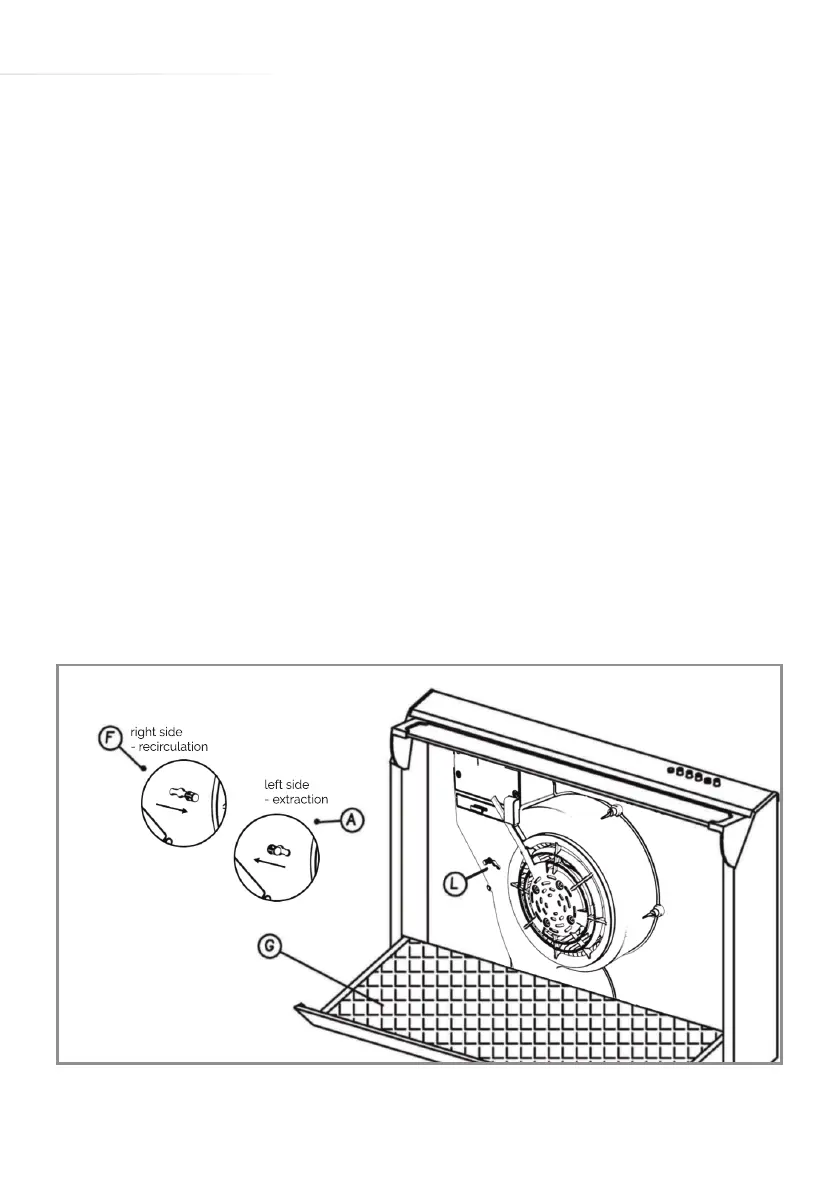

Fig. 5
To mount the hood on to a wall:
1. Remove the grease filter and cover.
2. Drill four holes as shown as “B” and “Z” in Fig. 4.
Please note: The size required for the holes is dependent on the wall
fixings to be used.
3. Insert wall fixings into all four holes.
4. Tighten the fixing screws “B”, leaving approximately 3mm proud of the
wall.
5. Hang the extractor on the fixing screws “B” and insert fixing screws
“Z” to secure into position.
6. Replace the grease filter cover.
