14
Installation
We recommend that you seek the help of another individual when
installing this product. Always wear adequate PPE (Personal
Protective Equipment) for the task at hand. This product may have
sharp edges; always protect your hands.

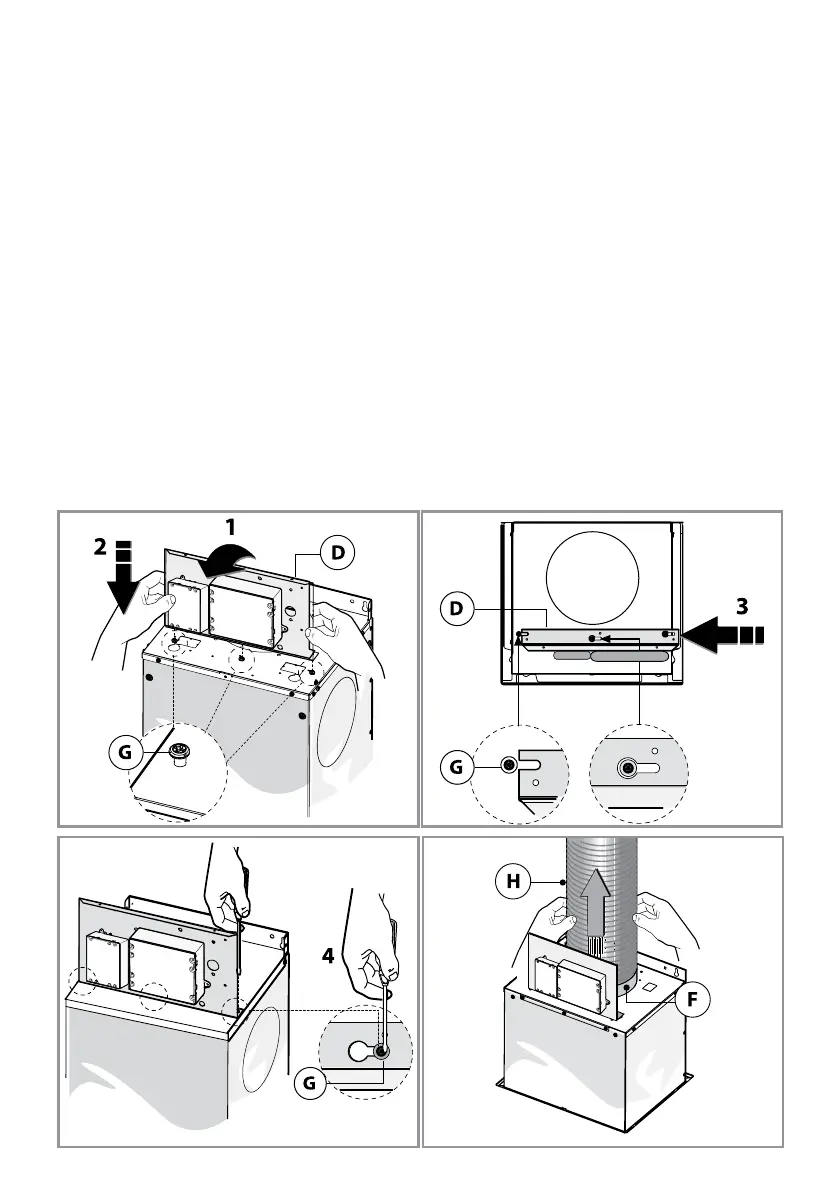

• Connect the electronic control box and ducting pipe to the motor
body before proceeding with the installation. To connect the
electronic control box, proceed as shown in Fig. 6, 7 and 8 using
the screws marked G.
• Attaching the ducting to the ducting adaptor and place on the
exhaust outlet, as shown in Fig. 9.
Fig. 6 Fig. 7
Fig. 8 Fig. 9
