Installation -
assembly

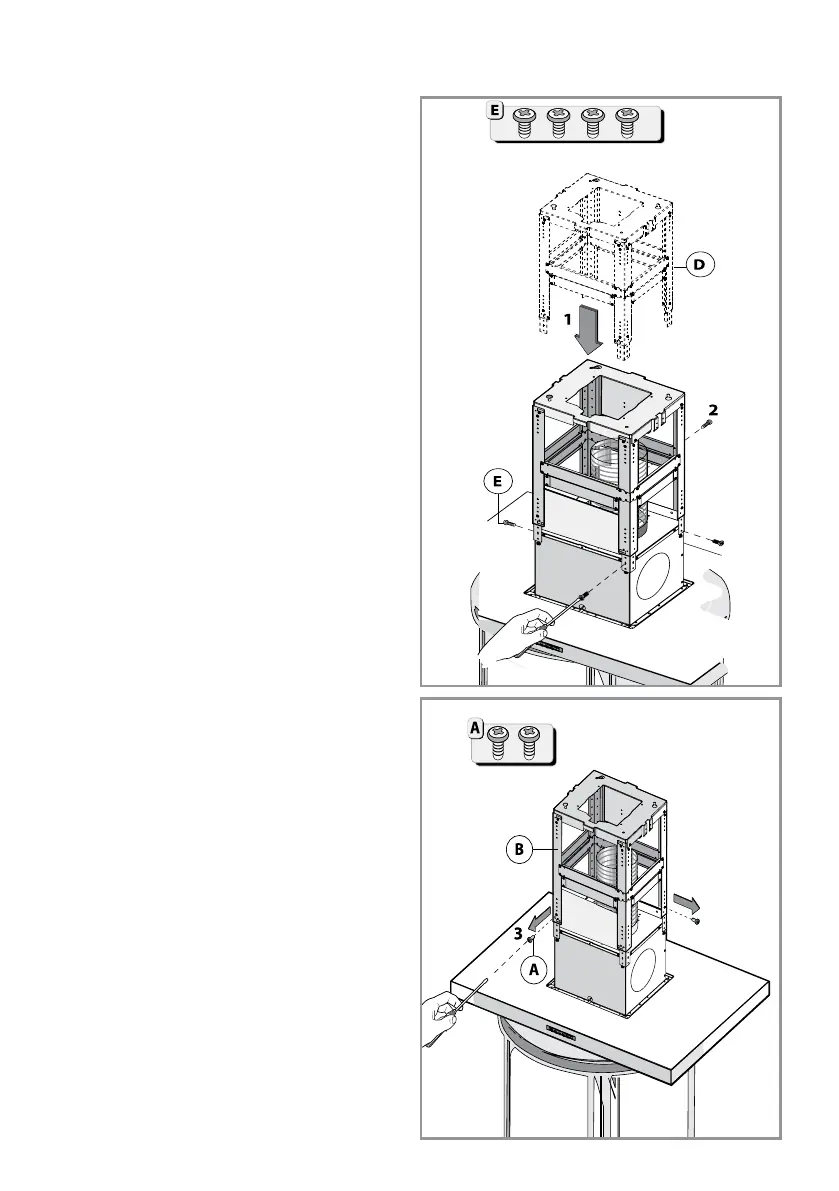

1. Place the extractor body on a
protected table & fix the cage
sections (D in Fig. 10) using the
supplied screws (E in Fig. 10).
2. Remove the screws (A in Fig. 11)
fastening the lower and upper
cage sections (B in Fig. 11).
3. Measure the height of the
ceiling from the kitchen floor
& then measure the height
of the hob burners/zones
from the kitchen floor. The
final assembly height of the
extractor, including the body
should be equal to:
Ceiling height - (H + Hob height
from floor)
Where H = 600mm minimum
for electric hobs and 700mm
minimum for gas hobs.
IMPORTANT: If the exact height
cannot be set, use the next
highest mounting cage joining
hole to prevent any issues with
height above the hob.
Fig. 10
Fig. 11
