How to Install the Hob
How to install the hob:
Overall dimensions of the hob: Width: 580mm Depth: 510mm
Worktop cut-out dimensions: Width: 560mm Depth: 490mm
1. Make the required hole in the worktop. Note that before doing this,
check the instructions supplied with any cooker hood to ensure that
you will have the required clearance. The cut-out (Fig 4) shows a
61.5mm gap from the wall to the cut-out edge. The distance for the
hob, when fitted, to the back wall is 50mm.
2. Position the hob seal, as shown in the diagram below (Fig 6), ensuring
that the ends meet without overlapping. Do not use silicone type
sealant.
3. Secure the hob to the worktop using the fixing brackets and screws ,
spire clips supplied, as shown in the following diagram (Fig 7). Remove
any excess sealant after tightening the brackets.

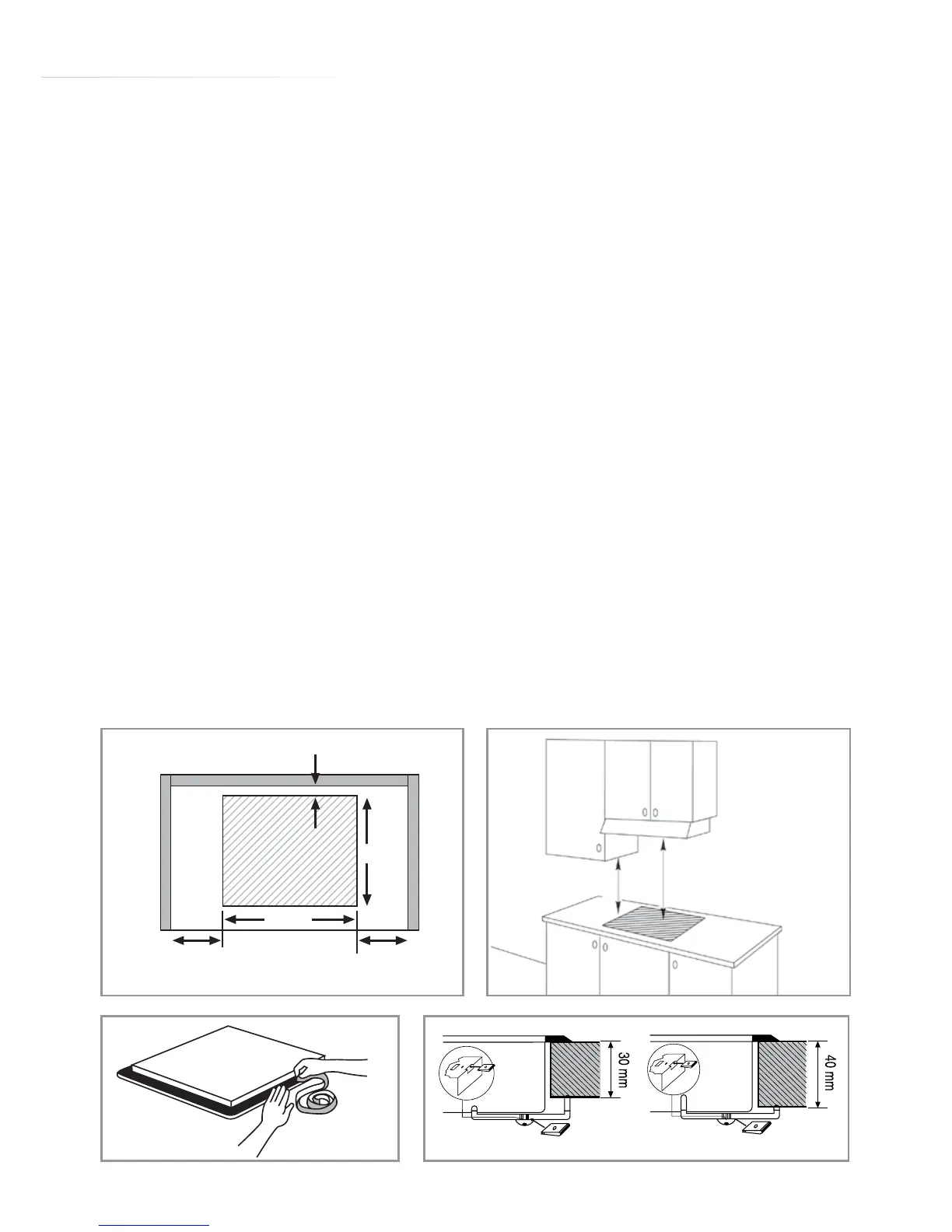

Fig.4
Fig.6 Fig.7
185mm 185mm
>60mm
560cm
190mm190mm
560mm
490mm
Fig.5
400mm
650mm
