9

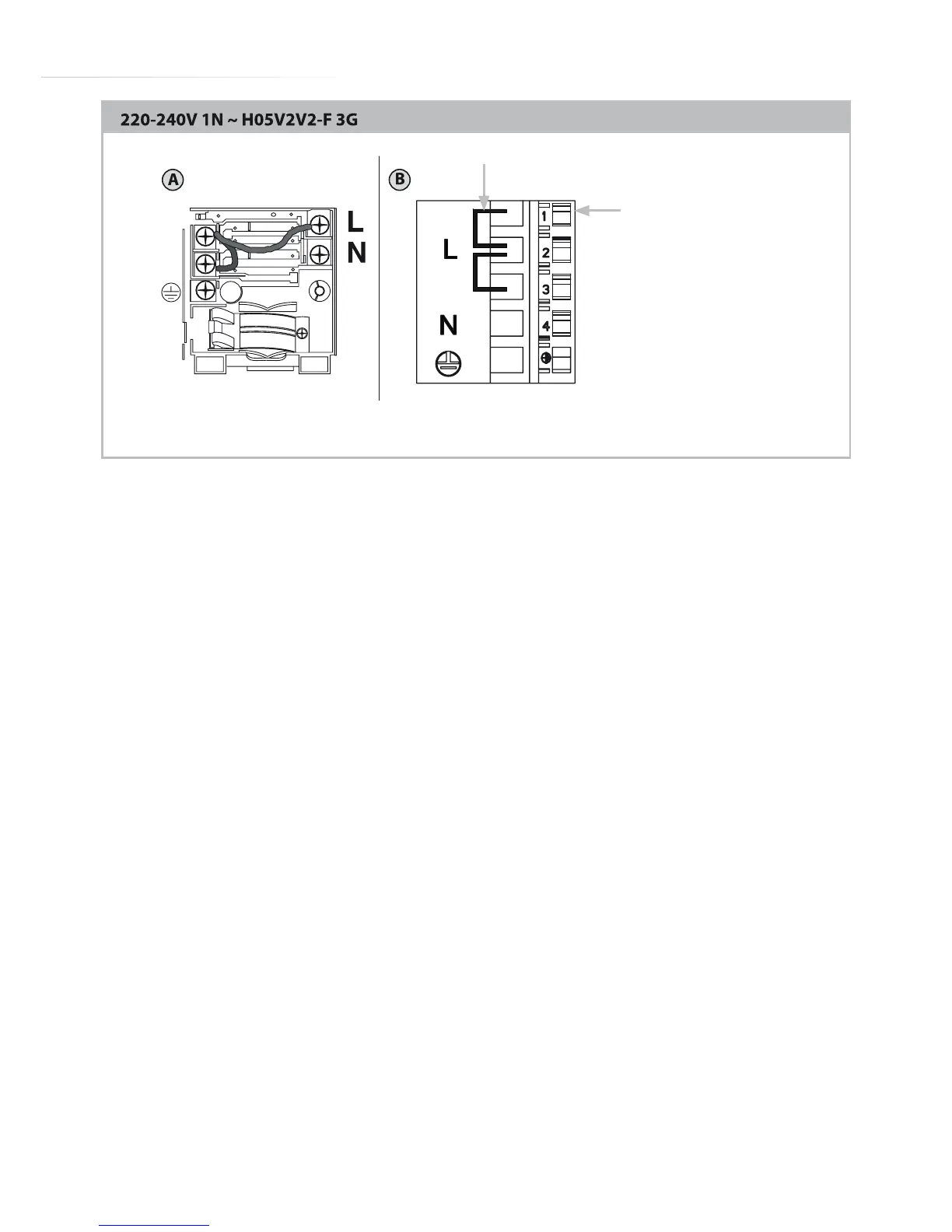

Fig.3
Use a 32A fuse breaker
link wire
Insert a flat blade
screwdriver to open
the terminals
Fitting The Hob
Unpacking the hob:
Take care not to lose or mishandle any parts.
Fitting position of the hob:
This appliance must be installed a minimum of 50mm from any
back wall and a minimum of 180mm away from any adjacent vertical
surfaces, e.g. a tall cupboard end panel. This may be reduced to
100mm if the adjacent surface is resistant to fire (tiles or steel, for
example). These dimensions are shown in Fig.4.
If fitting a cooker hood above the hob:
If a cooker hood is to be installed above the hob, the height of the hood
above the hob must be at least 600mm (650mm is recommended) (Fig.5).
If the instructions supplied with the hood dictate that the hood must be
installed at a height greater than 600mm, then that height is the minimum
required.
