CDA HC7621FR

6

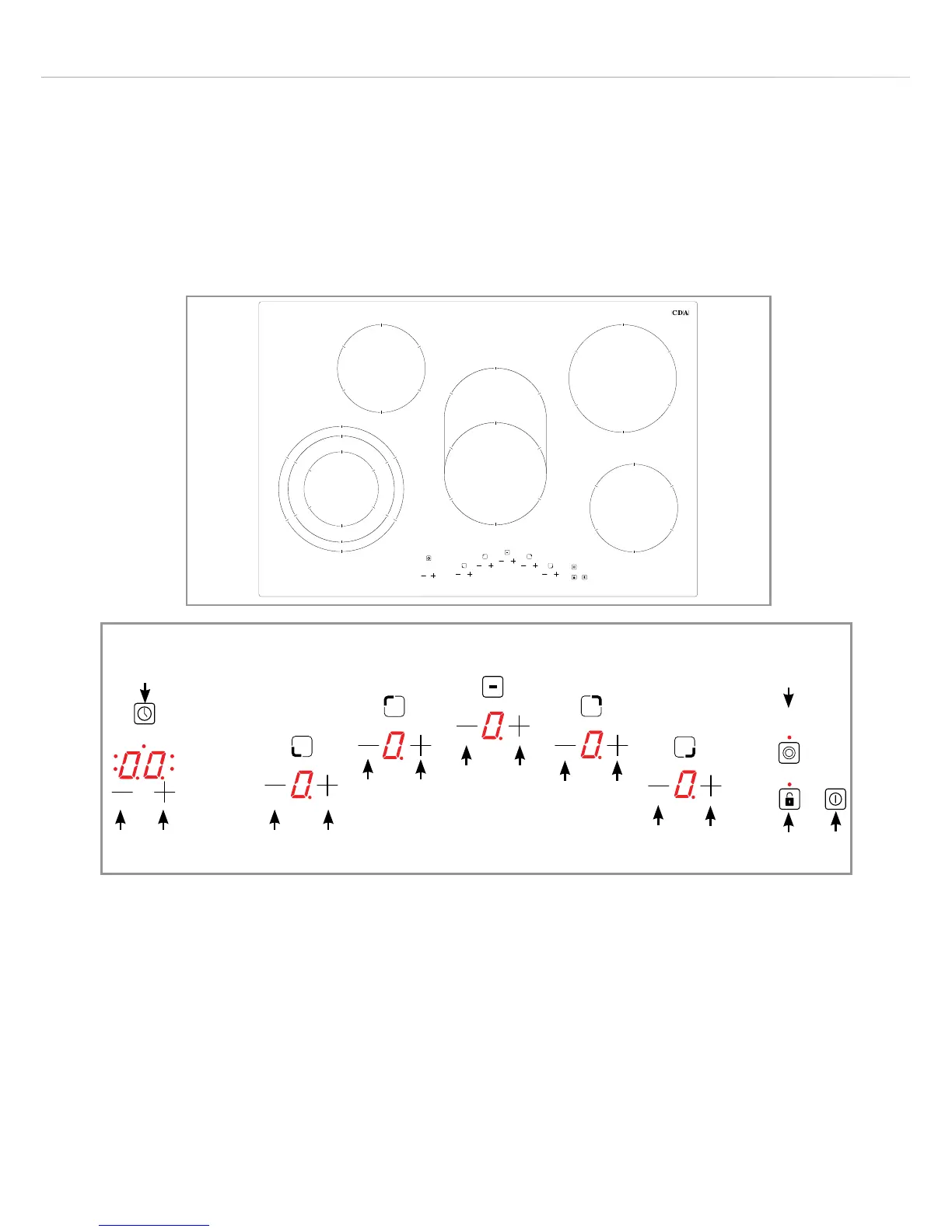

Using your hob
Zones:
1. Front left 2.3kW Ø210/175/120 mm 4. Back right 1.8kW Ø180 mm
3. Central 2.2kW Ø170 x 265 mm
2. Back left 1.2kW Ø145 mm 5. Front right 1.2kW Ø145 mm
Control panel:
1. On/o sensor 5. Timer plus setting sensor
2. Safety key lock sensor 6. Timer minus setting sensor
3. Zone plus setting sensor 7. Timer sensor and display
4. Zone minus setting selector 8. Triple zone sensor
Fig. 1
1
2
3
4
Fig. 2
5
1
4
2
4
3
4
4
4
6
7
8
3
3
3
3
5
