CDA RC9321 User Manual

40
LEFT OVEN
Oven burner and grill
burner replacement of
injectors

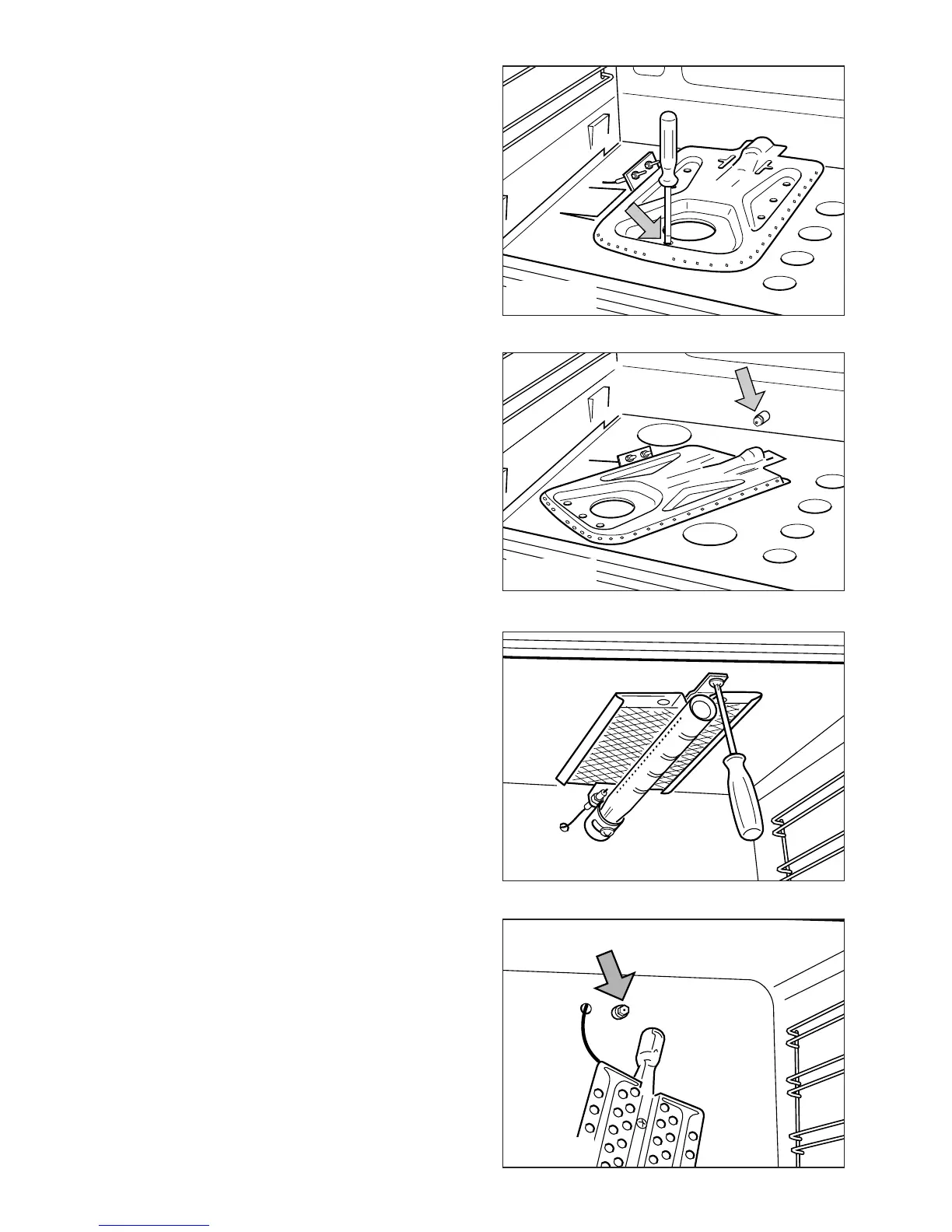

a) oven burner
– Lift and remove the lower panel
inside the oven.
– Remove the burner securing screw
(fig. 46).
– Withdraw the burner as shown in fig-
ure 47 and rest it inside the oven.
Take care not to damage the wire to
the ignition electrode and the safety
valve probe.
– Using a 7 mm box spanner, unscrew
the injector (indicated by the arrow
in fig. 47) and replace it by the prop-
er one according to the kind of gas.
Then replace the burner repeating
the above steps in reverse order.
b) grill burner
– Remove the burner by unscrewing
the front screw (fig. 48).
Gently suspend the burner as shown
in figure 49. Be careful not to
damage the wire of the electric
ignition and the probe of the safety
valve.
– Using a 7 mm box spanner, replace
the injector (indicated by the arrow
in fig. 49) by the proper one
according to the kind of gas.
– Replace the burner repeating the
above steps in reverse order.
Fig. 46
Fig. 47
Fig. 48
Fig. 49
