3
User Instructions
Basic Functions (Quick Start)
0.0
1.PEAK FT-LBS
Figure 1
Install three fresh "AA" cells into battery holder.
DTC Power On Sequence
Note: Do not turn on DTC while torque wrench is mounted to checker, otherwise torque zero offset
will be incorrect and DTC will indicate a torque reading when torque is removed. If this occurs,
remove torque wrench from DTC and re-zero by momentarily pressing POWER q button.
1. Turn On DTC.
Momentarily press POWER q button. CDI logo is displayed followed by torque re-zeroing
screen. After re-zeroing, the torque screen is displayed.
2. Select Mode Of Operation.
Toggle between PEAK, 1.PEAK and TRACK by repeatedly pressing ENTER button.
o PEAK = Used to check Dial and or Electronic Torque Wrenches
o 1.Peak = Used to check Click Style Torque Wrenches
o Track = Can be used to check Dial and Electronic Torque Wrenches
3. Select Units Of Measure.
Toggle between IN-LBS, FT-LBS and NM by repeatedly pressing UNITS button.
4. Peak Torque Recall.
Recall last peak torque applied by pressing and holding RECALL R button.
Main Menu
Main menu displays DTC
operational information.
1. From torque measurement screen, press and hold ENTER button for 3 seconds.
2. Use UP /DOWN buttons to highlight menu selection then press ENTER button.
AUDIBLE ALERT
MODE SELECT, MENU ENTRY
AND ENTER BUTTON
INCREMENT
BUTTON
ON/OFF
AND
RE-ZERO
BUTTON
DECREMENT
BUTTON

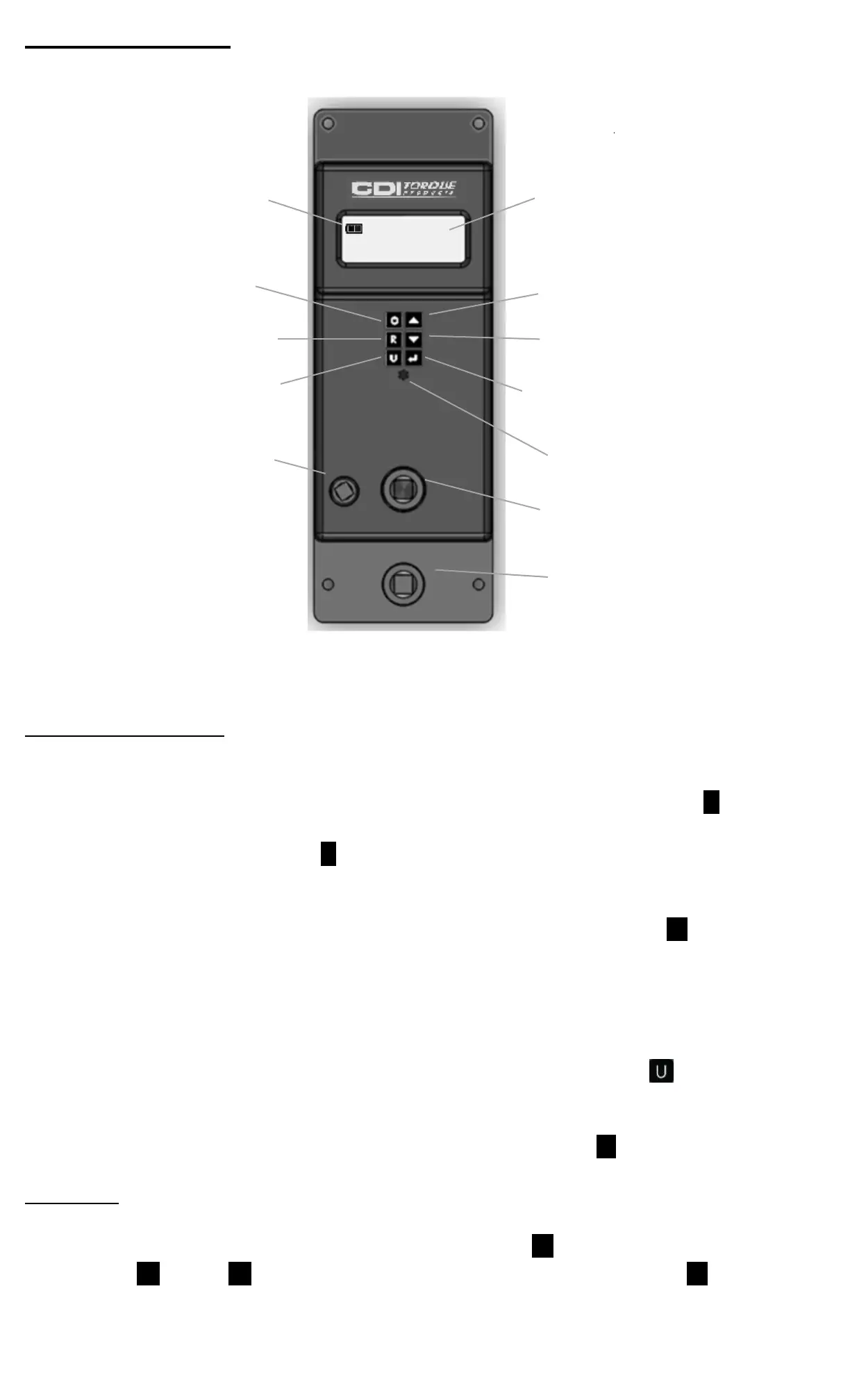

PEAK TORQUE
RECALL BUTTON
UNITS BUTTON
BATTERY
CONDITION
½” x
Socket Adapter
½” Female
Transducer Socket
½” Female
Cycling Socket
