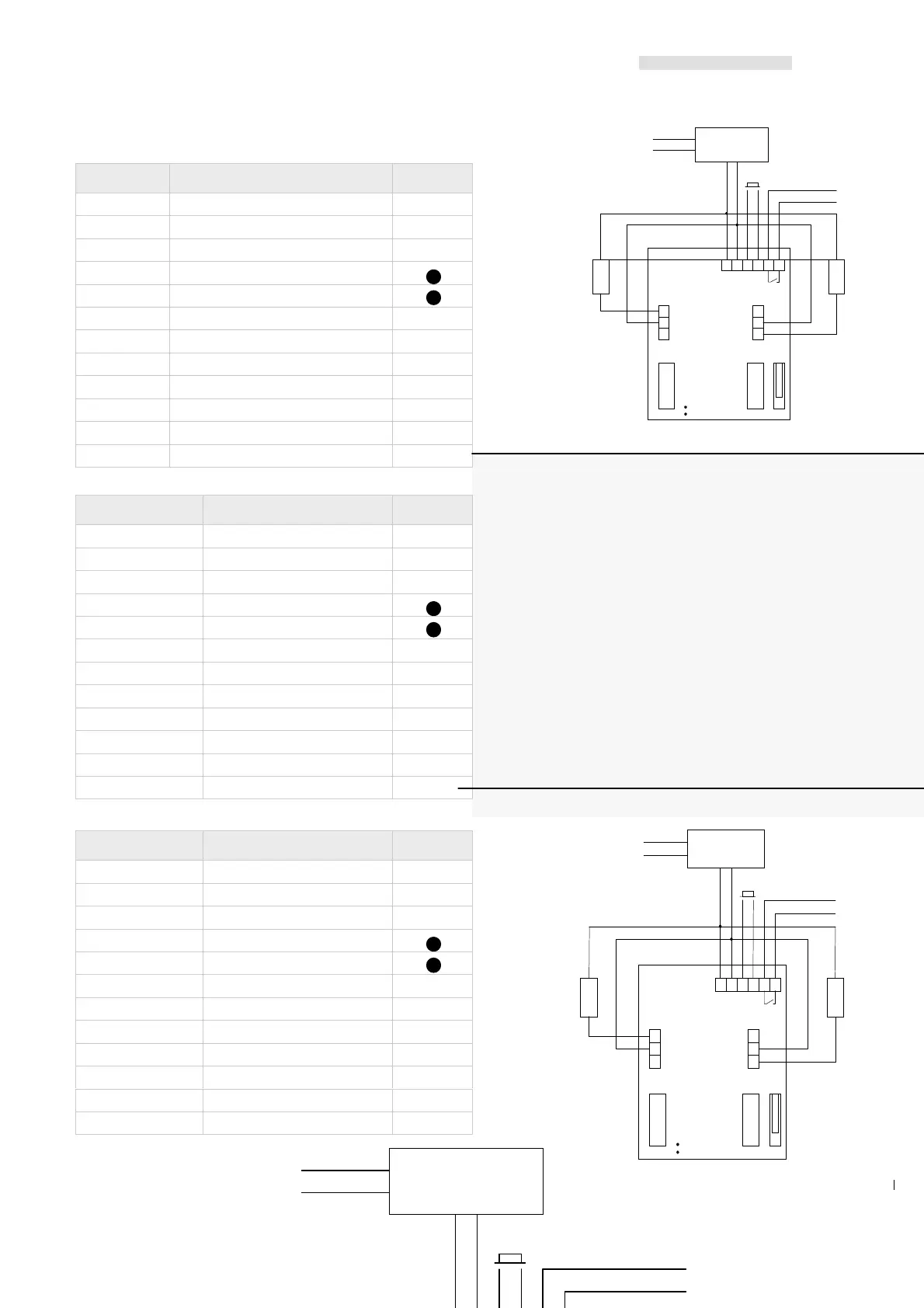

RACCORDEMENT/WIRING:
N°BORNE SIGNAL SORTIE
1 contact repos relais 1
2 commun 1
3 contact travail relais 1
4 alimentation 12V
5 alimentation 12V
6 entrée bouton poussoir 1
7 entrée bouton poussoir 1
8 contact surveillance
9 contact surveillance
10 contact repos relais 2
11 commun 2
12 contact travail 2
TERMINAL DESCRIPTION OUTPUT
1 N/C contact 1
2 Common 1
3 N/O contact 1
4 Power supply 12V
5 Power supply 12V
6 Request to exit input 1
7 Request to exit input 1
8 Tamper switch output
9 Tamper switch output
10 N/C contact 2
11 Common 2
12 N/O contact 2
TERMINAL N SIGNAL OUTPUT
1 Contatto N/C 1
2 Comune 1
3 Contatto N/O 1
4 Alimentazione12V
5 Alimentazione12V
6 Pulsante uscita 1
7 Pulsante uscita 1
8 Tamper switch output
9 Tamper switch output
10 Contatto N/C 2
11 Comune 2
12 Contatto N/O 2
3
5 8 9
12
11
10
1
2
4
RL2 RL1
Alimentazione
12 V
DC or AC
115V AC
STRIKE 1 STRIKE 2
Allarme
T
C
R
R
C
T
6 7
PB
jumper
3
5 8 9
12
11
10
1
2
4
RL2 RL1
ALIMENTATION
12 V
DC ou AC
230V AC
GACHE 1 GACHE 2
ALARME
T
C
R
R
C
T
6 7
BP
picots
ALIMENTATION
12 V
DC ou AC
230V AC
ALARME
BP
