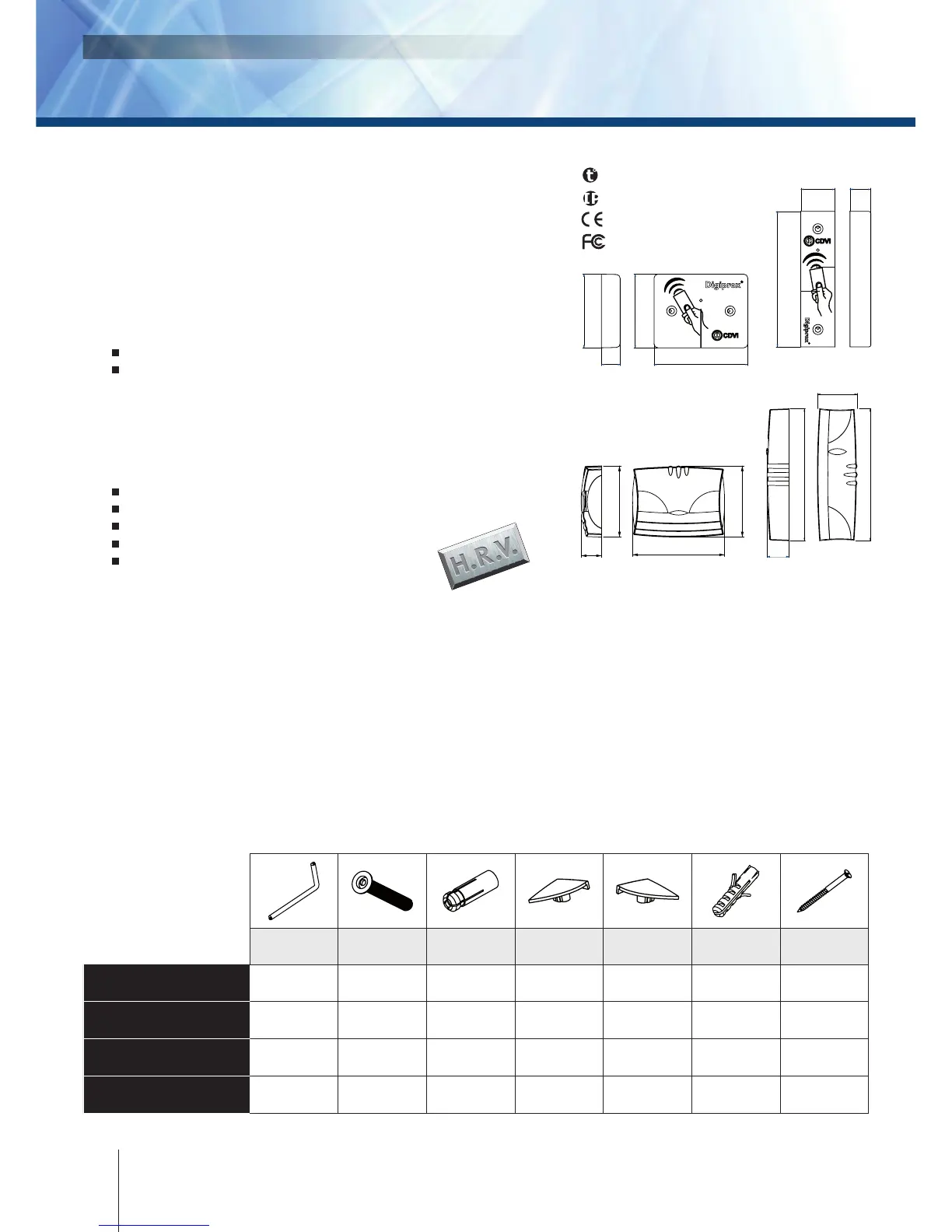

CDVI DGLP WLC 26 User Manual

98
77
77
19,5
140
35
21,5
80,5
104
80,5
23
42
140
140
23
DGLI WLC 26
DGLP FN WLC 26
DGLP WLC 26
DGLPM WLC 26
DGLI F WLC 26
53
2
cdvi.com
cdvigroup.com
Diax
®
spanner
Diax
®
screw
stainless steel
Brass
anchor
Top cover
Bottom
cover
Plastic
anchor
Wood screw
3 x 40 mm
DGLI WLC 26
1 2 2 - - - -
DGLP WLC 26
and DGLPM WLC 26
- - - 2 2 2 2
DGLI F WLC 26
1 2 2 - - - -
DGLP FN WLC 26
- - - 2 2 2 2
Proximity Card Readers - Wiegand Output
1] PRODUCTS OVERVIEW
The DGLP WLC 26 and DGLI WLC 26 are two Wiegand Proximity
card readers, available as standard version and narrow style
(DGLP FN WLC 26 et DGLI F WLC 26). The DGLM WLC 26 is a
Mifare
®
reader with similar casing than the DGLP WLC 26. These
readers are sealed with epoxy, therefore they are suitable for
external use and are rated as high resistance to vandalism.
Technical specications:
Completely sealed led with epoxy
Available in:
- stainless steel surface mount (Ref : DGLI WLC 26),
- stainless steel narrow style surface mount (Ref : DGLI F WLC 26),
- polycarbonate casing surface mount (Ref : DGLP WLC 26
et DGLPM WLC 26),
- polycarbonate casing narrow style surface mount
(Ref : DGLP FN WLC 26).
Surface mount
26-bits wiegand output
LED and buzzer
Input voltage: 12V DC
Consumption: 100mA
2] RECOMMANDATIONS
3] MOUNTING KIT
Optional
Single gang box mounting plate
for the DGLP FN WLC 26 reader
(Ref: MPLATE).
Recommended cables
CAT5 unshield 4 twisted pairs
-40°C to +70°C
INSTALLATION MANUAL
HIGH RESISTANCE
TO VANDALISM

CDVI DGLP WLC 26 Specifications

General

Brand	CDVI
Model	DGLP WLC 26
Category	Card Reader
Language	English
