INTEGRATED ACCESS CONTROL
CT-V900-A
2-Door Controller
CAT5 CABLE
(unshield 4 twisted paire cable)
DO
GND
D1
12V
OUT1
OUT2
OUT5
DO
-
D1
+
V (green LED)
R (red LED)
B (buzzer)
Reader wiring is shown with a
2-door controller CT-V900-A.
It may differ from other
controllers. Please consult
the manufacturer for details.
or
DGLP WLC 26
DGLI WLC 26
INTEGRATED ACCESS CONTROL
CT-V900-A
2-Door Controller
DO
GND
D1
12V
OUT1
OUT2
OUT5
GREEN
BLACK
WHITE
RED
YELLOW (green LED)
ORANGE (red LED)
BROWN (buzzer)
Reader wiring is shown with a 2-door controller
CT-V900-A. It may differ from other controllers.
Please consult the manufacturer for details.
DGLP FN
WLC 26
DGLI F
WLC 26
CAT5 CABLE
(unshield 4 twisted paire cable)

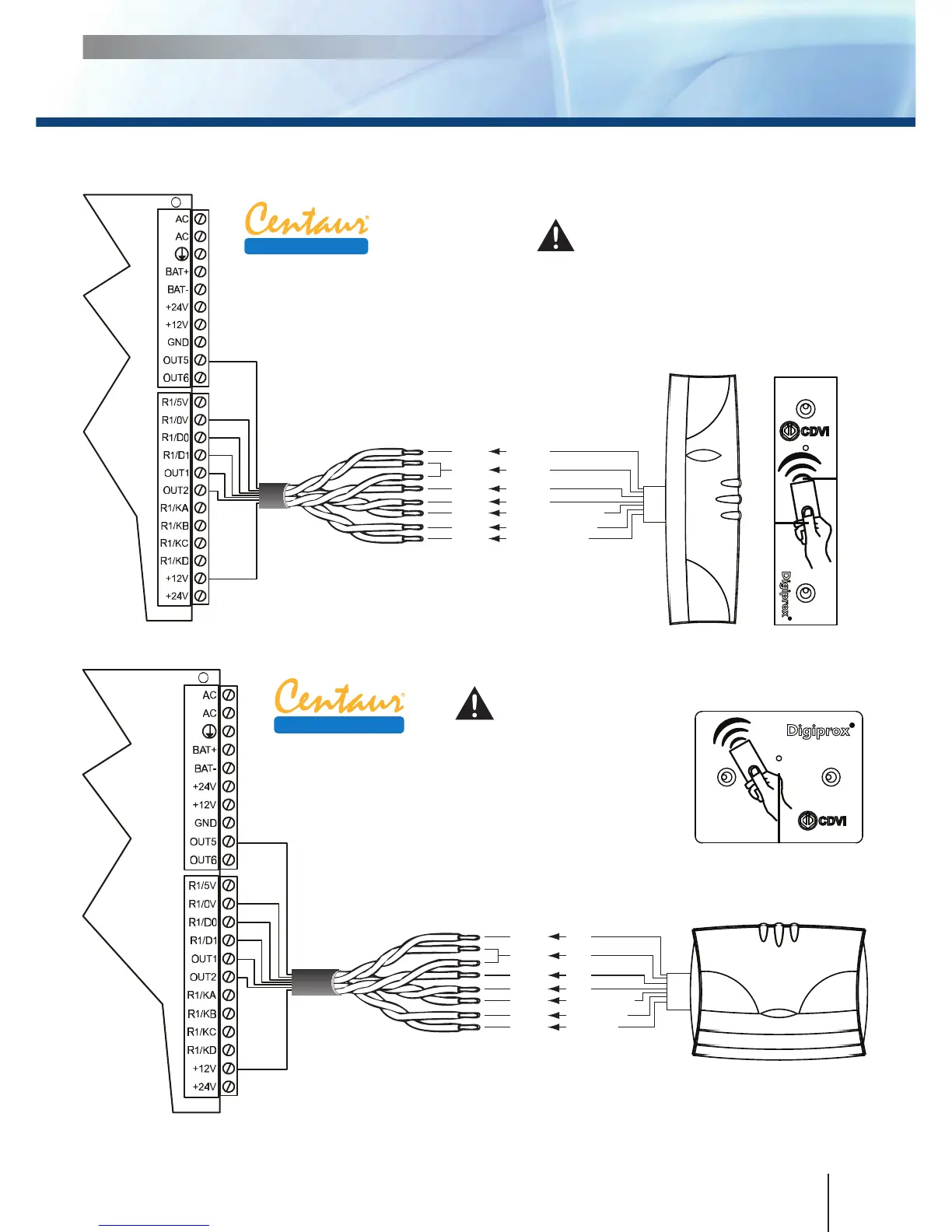

Proximity Card Readers - Wiegand Output
4] WIRING DIAGRAM :
INSTALLATION MANUAL
To Next Page
