Ref : DGLP FN WLC 26 and DGLI F WLC 26
Optional (MPLATE)
Single gang box mounting plate for the
DGLP FN WLC 26 mullion polycarbonate
proximity reader.
4

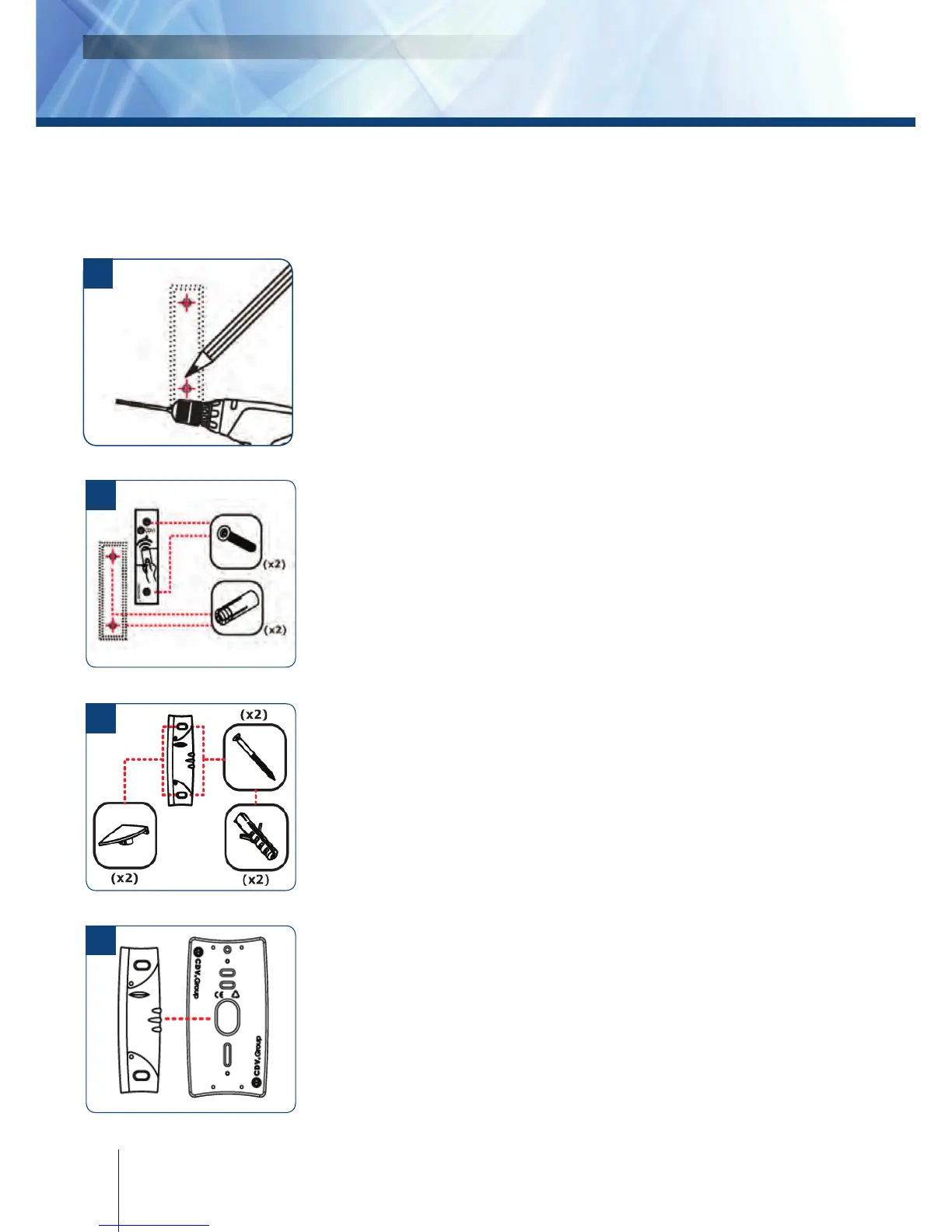

Measure and mark the center lines to de-
termine the reader position. Drill the xing
screw holes. Diametre: 4MM (.157”) for
the mounting plate and 6MM (.236”) for
the reader. Drill the wiring access area.
1
DGLI F WLC 26
Insert the brass anchors in the mounting
holes, connect the cable to the connectors,
then fasten the reader with the DIAX®
screws using the DIAX® spanner. Make
sure that the varistor is connected on the
lock (refer to page 2 «Recommendations»).
2
DGLP FN WLC 26
Insert the plastic anchors in the mounting
holes, connect the cable to the terminal
block, then fasten the reader with the
wooden screws. Put the covers on top of
the reader. Make sure that the varistor
is connected on the lock (refer to page 2
«Recommendations»).
3
Proximity Card Readers - Wiegand Output
INSTALLATION MANUAL
4
cdvi.com
cdvigroup.com
5] MOUNTING INSTRUCTIONS
