CDVI KCIN - NOTES AND RECOMMENDATIONS; Cable Specifications; Power Supply Recommendations; Mounting Recommendations

33
cdvi.se
cdvigroup.com
Remote
electronic
mounting
plate
Wire
sealed
cap
Varistor
Diax
®
screws
(M5x35)
Diax
®
Plastic
anchor
S crew
(M4x30)
Brass
anchor
Remote
electronic
1 2 - - - 2 2 -
KCIN
- - 1 2 1 2 2 2

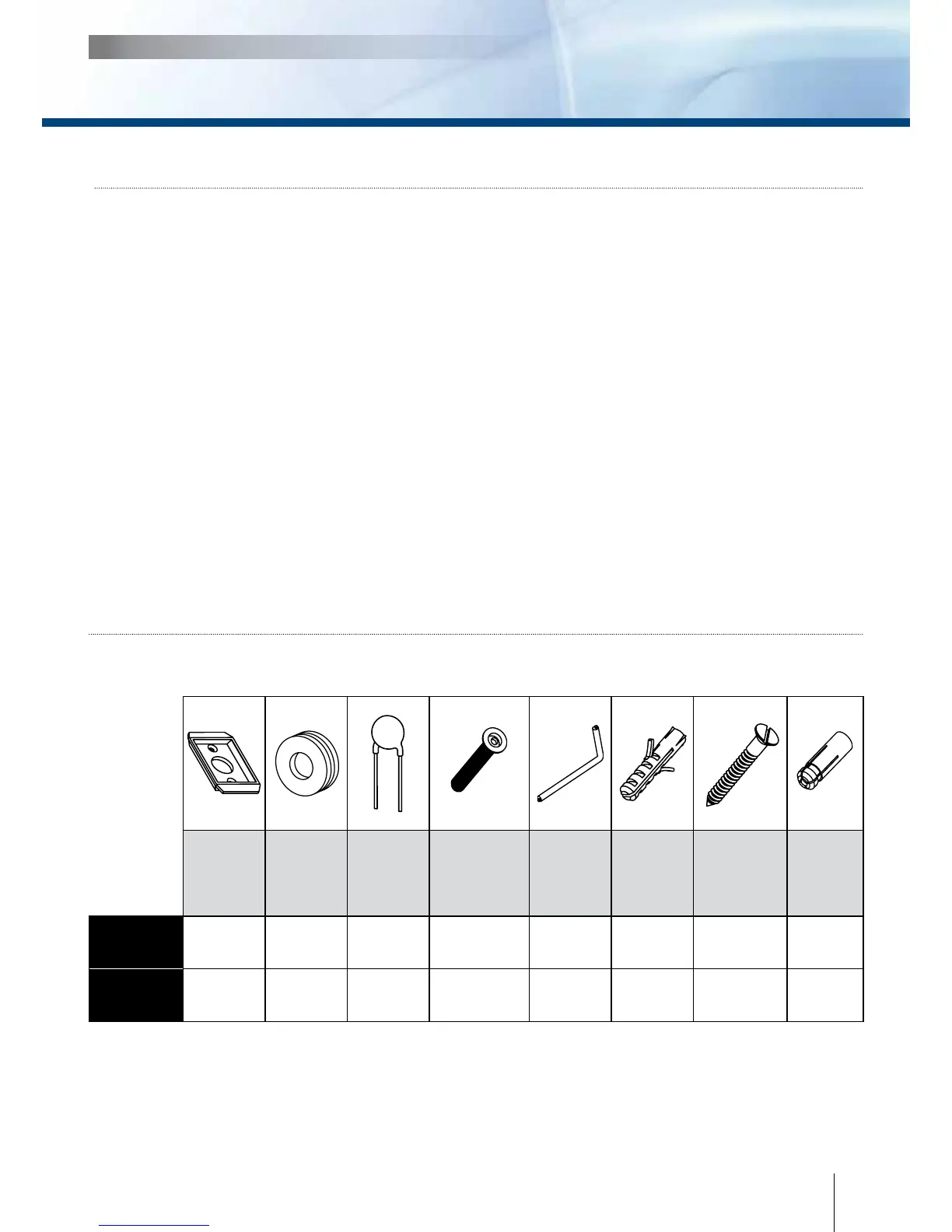

3] MOUNTING KIT
2] NOTES AND RECOMMENDATIONS
CABLE
- The distance between the KCIN
and the remote electronic can not exceed
more than 10 meters.
- Make sure that the cable is not near
by a high voltage cable (ex: 230 V AC).
Recommended cable between
The KCIN and the remote electronic
2-pair cables (4 wires) SYT1 8/10
ths
.
Recommended power supplies
suitable for the KCIN
- ARD12 (230V input)
- BS60 (230V input)
Mounting recommendations
Mount the keypad on a at surface to avoid
any vandalism and to insure the best mounting.
Security advice
- For security reasons, change
the factory default master code.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).
Back EMF protection
To secure the system from back electromagnetic
elds do not forget to mount the varistor
in parallel on the lock terminal.
KCIN
Illuminated weatherproof Keypad with Remote Electronics 1, 2 or 3 relays
INSTALLATION MANUAL
