CDVI V3S - Installation with Accessories; Installation with an Armature Base; Installation with Base for Glass Door

5] PROGRAMMATION
Electromagnetic locks surface mount series
INSTALLATION MANUEL
6
cdvi.com
cdvigroup.com

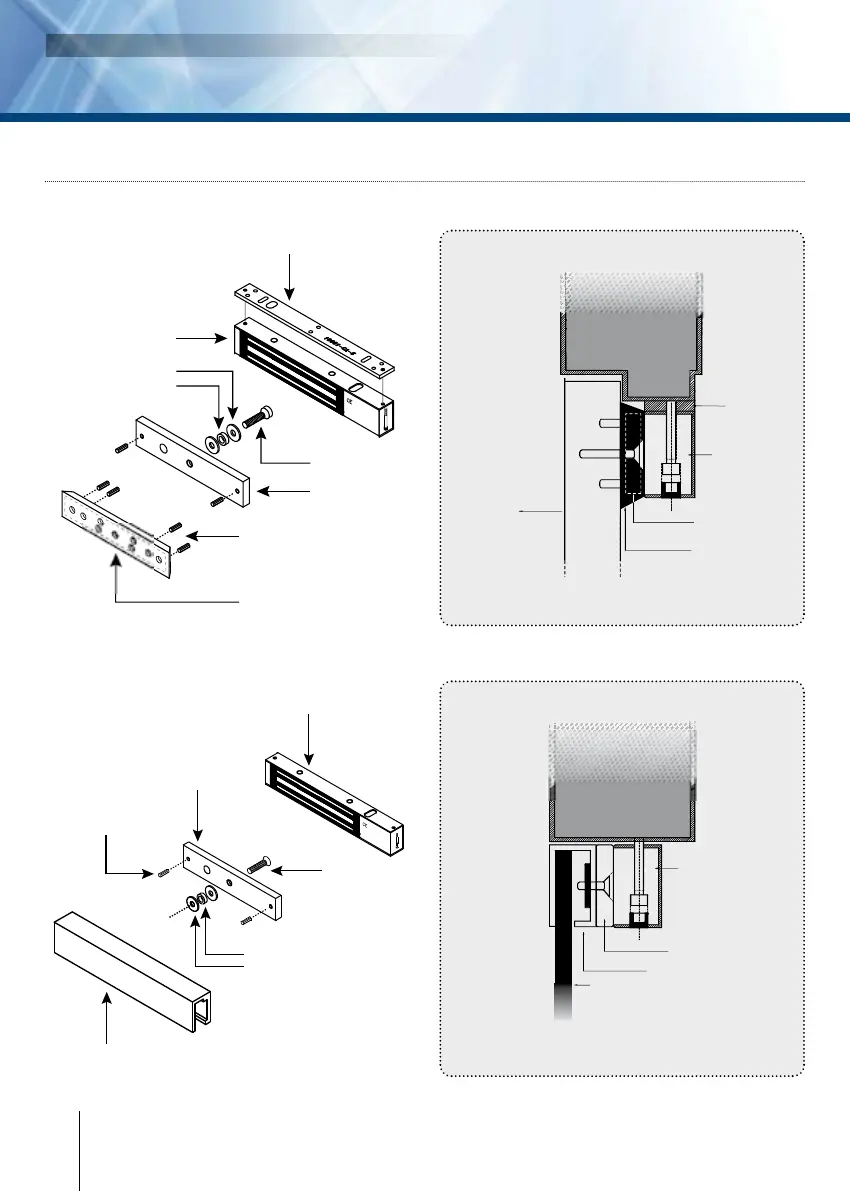

7] INSTALLATION WITH ACCESSORIES
Mounting plate
Armature base
AMA3/5
Armature
Armature
Electromagnetic lock
Electromagnetic lock
Armature base for glass door
UBK/U
Rubber washer
Rubber washer
Roll pin
Roll pin
Steel washer
Steel washer
Armature
screw
Armature screw
Inward opening door (Pull door)
(installed with UBK/U brackets)
Installation with base for glass door
Outwards opening door (push door).
OUTSIDE
OUTSIDE
INSIDE
INSIDE
Installation with an armature base
Door frame
Electromagnetic lock
Armature
Universal base for glass door
UBK/U
Door
Armature base
AMA300 et AMA500
Mounting
plate
Door frame
Electromagnetic
lock
Armature
Door
EXT.
opening
