Electromagnetic locks surface mount series
INSTALLATION MANUEL
7
cdvi.com
cdvigroup.com
8] FAULT FINDING
PROBLEM POSSIBLE CAUSE SOLUTION
Door locking
impossible
The lock is not receiving DC current.
- Check that the wires are connected to the right terminals.
- Check that the power supply is compatible.
- Check that the lock is connected to the circuit correctly.
Holding force
reduced
The lock and the armature are not lined
up with each other.
-
Check that the lock is connected to the circuit correctly.
-
Check that the electromagnet and the armature are properly aligned.
-
Check that the contact faces are free from dirt and rust.
- Check that the armature is soft mounted.
Low voltage or armature jammed.
- Check that the lock is receiving the correct power supply
satisfactorily.
- check the tightening of the armature and the condition of the rubber.
Faulty reed
switch
Voltage too low. Misalignment.
- Check the power supply.
- Cable cross section to be determined according to the power
supply and the locking.
- e.g.: 2 x 1.5mm2 ≥ 10m.

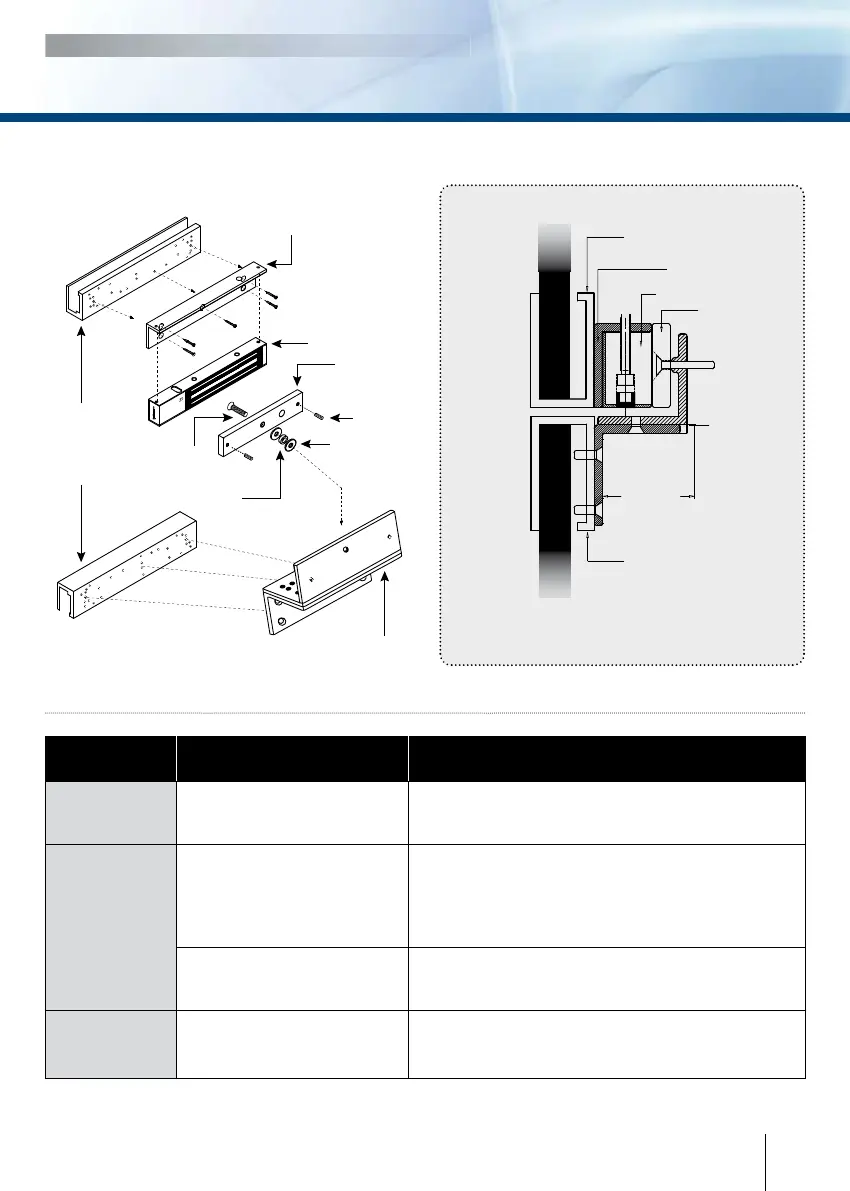

Electromagnetic lock
Z3/Z4/Z5
L3/L4/L5
Armature
Door
Door
Adjustable
UBK/P
Inward opening door (Pull door)
(installed with “UBK/P”, “L3/L4/L5”
and Z3/Z5 brackets)
Installation with base for glass door
Electromagnetic
lock
Universal
base for
glass door
UBK/P
UBK/P
Rubber washer
Steel washer
Armature
Armature
screw
Roll pin
