CEA PROJECT 1300 - Page 21

21
Pos.
PROJECT
1300
PROJECT
1600
Descrizione Description
11 235945 235945 Cavo linea Mains cable
12 435365 435365 Interruttore alimentazione Mains switch
13 486373 486373 Ventilatore Fan
14 353041 353041 Isolamento laterale coperchio Cover insulation
15 241259 241261 Complessivo inverter di potenza Power inverter assembly
16 453034 453034 Potenziometro scheda comandi frontale Front control PCB potentiometer
17 377076 377076 Scheda comandi frontale Front control PCB
18 455500 455500 Raddrizzatore primario Primary rectifier
19 377077A 377077 Scheda controllo PCB Control
20 240237 240227 Induttanza Inductance
21 481949 481949 Trasformatore di corrente Current transformer
22 478778 478779 Termostato raddrizzatore secondario Secondary rectifier thermostat
23 481405 481405 Trasformatore principale Main transformer
13
1415
16
17
18
19
20
21
2223
EN

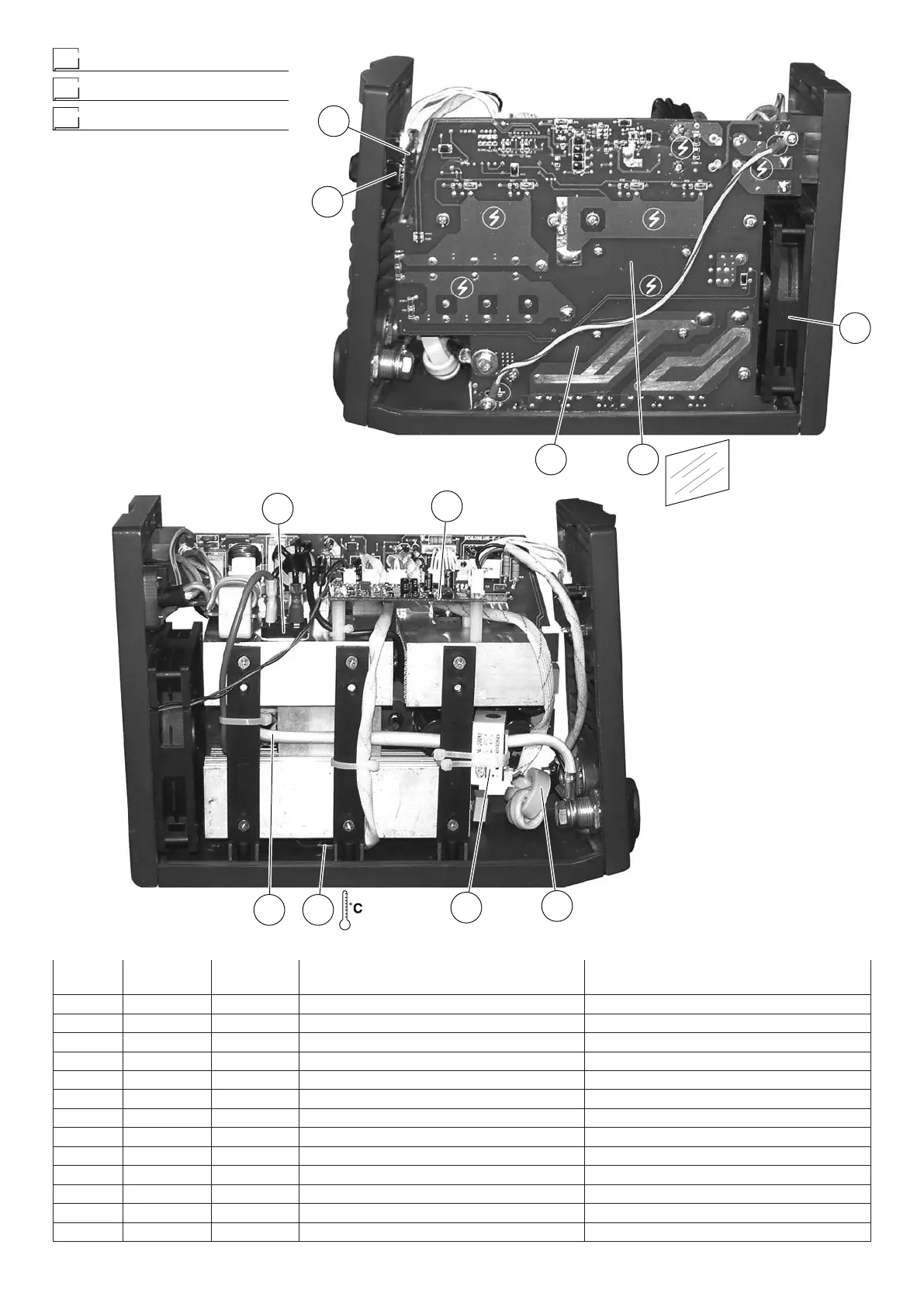

Spare parts list
RU
Список запчастей
Varuosade loend
EE
Pos.
Element
PROJECT
1300
PROJECT
1600
Kirjeldus Description
11 235945 235945 Toitekaabel Mains cable
12 435365 435365 Toitelüliti Mains switch
13 486373 486373 Ventilaator Fan
14 353041 353041 Korpuse isolatsioon Cover insulation
15 241259 241261 Inverteri komplekt Power inverter assembly
16 453034 453034 Esikülje trükkplaadi potentsiomeeter Front control PCB potentiometer
17 377076 377076 Esikülje trükkplaat Front control PCB
18 455500 455500 Primaaralaldi Primary rectier
19 377077A 377077 Trükkplaat PCB Control
20 240237 240227 Induktiivsus Rear panel
21 481949 481949 Voolutrafo Current transformer
22 478778 478779 Sekundaaralaldi termostaat Secondary rectier thermostat
23 481405 481405 Peatrafo Main transformer
