Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH
4.2 Filling up fuel / refuelling
Read the operating manual for the engine!
1. Remove the water container from the joint cutter (sec-
tion 4.9.2 and gures 4.6a and 4.6b)!
CF•13.3 B-L - water containerremoved, position of the fuel ller cap
Figure 4.6b
2. Fill up the tank with the appropriate fuel according to
the operating manual of the engine!
3. Put the water container back onto the joint cutter (sec-
tion 4.9.2)!

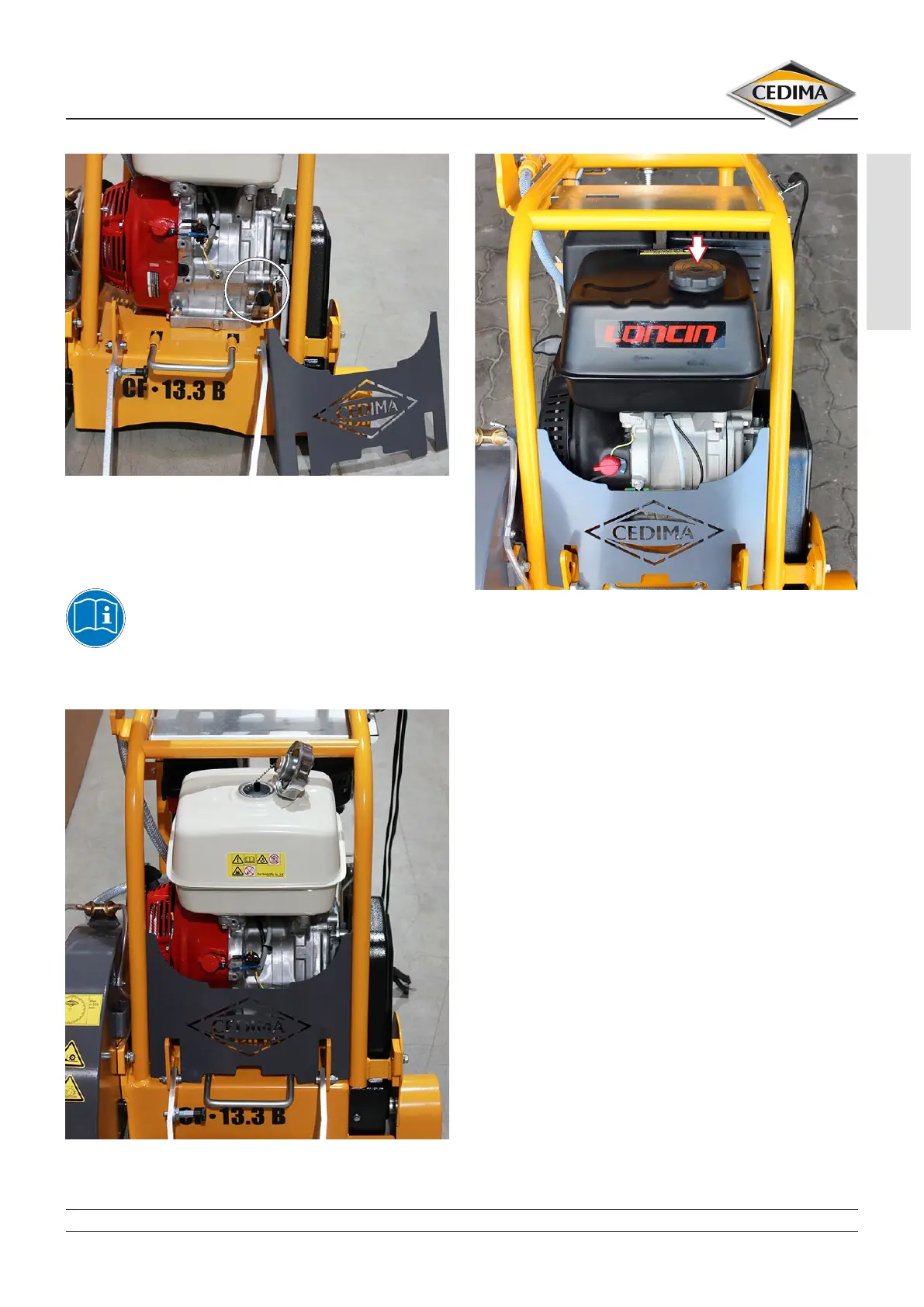

Front engine oil dipstick, ller lid
(front plate dismounted) Figure 4.5
CF•13.3 B - Water container removed and fuel ller lid open
Figure 4.6a
