Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH

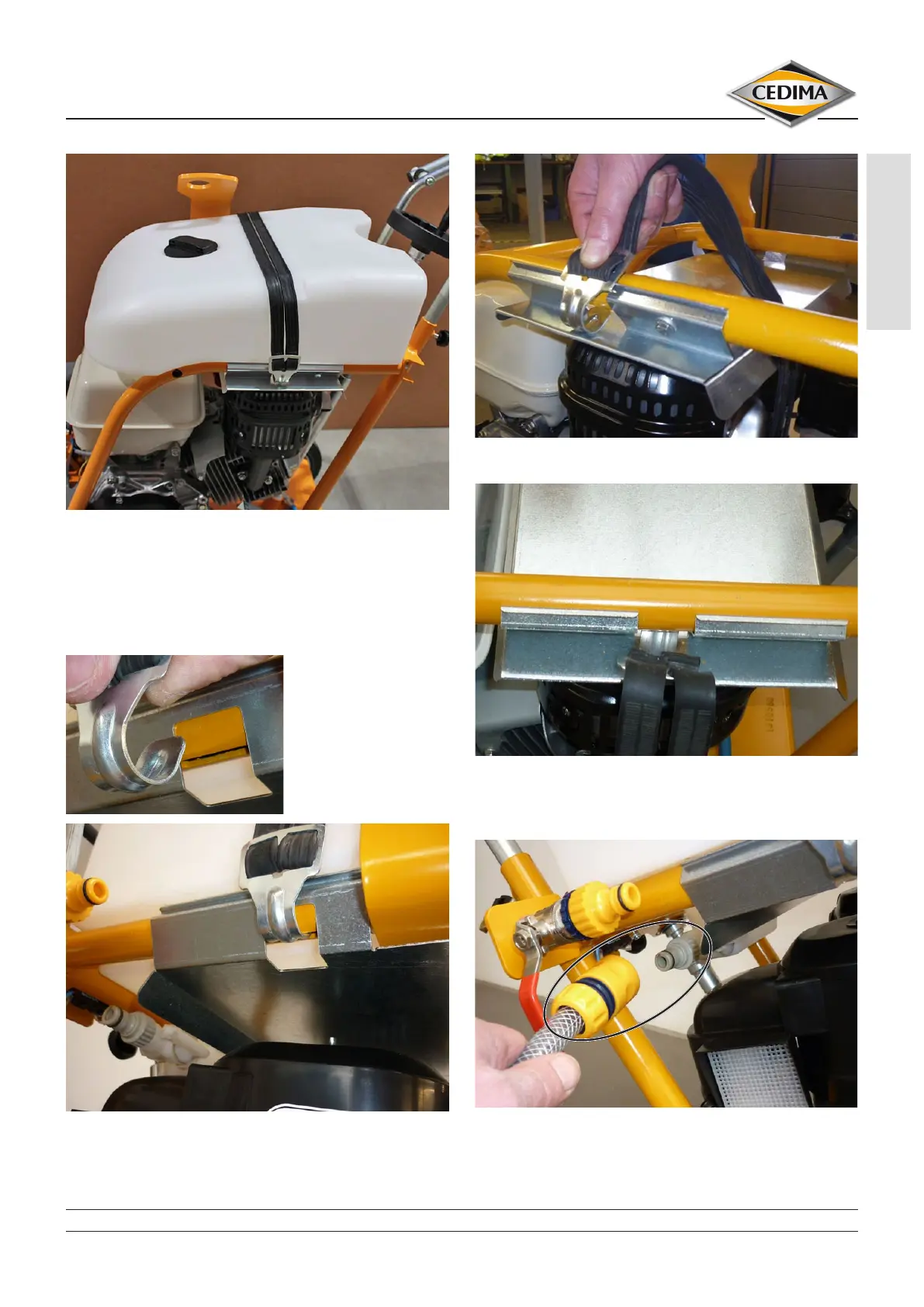

Water container mounted Figure 4.56
Securing the water container with rubber strap to the right of the
joint cutter frame Figure 4.57
Securing the water container with rubber strap to the left of the joint
cutter frame Figure 4.58
Connecting hose with Gardena coupling for connection to the
water container control/shut-o valve Figure 4.59
