Description of the joint cutter CF-22 E.800
The electrically driven CF-22 E.800 is suitable as a joint cutter for wet cutting with diamond saw blades in places where, due
to exhaust and/or noise protection regulations, machines with combustion engines may not be used (e.g. closed rooms).
Despite its compact design, the CF-22 E.800 achieves a cutting depth of 320mm, thus enabling even more demanding
cutting operations.
The 3 transport-friendly assemblies enable fast transport, e.g. in a hatchback car, and allow the CF-22 E.800 to be
assembled directly at locations that are dicult to access. The assemblies can be put together and taken apart in a few
simple steps, without requiring additional tools.
2.0 Description of the joint cutter CF-22 E.800
The arrangement of all components of the CF-22 E.800
joint cutter with the resulting weight distribution provides
sucient contact pressure on the diamond saw blade
while at the same time being easy to handle during
transportation and set-up.
The modular design facilitates cleaning, maintenance and,
if necessary, repair.

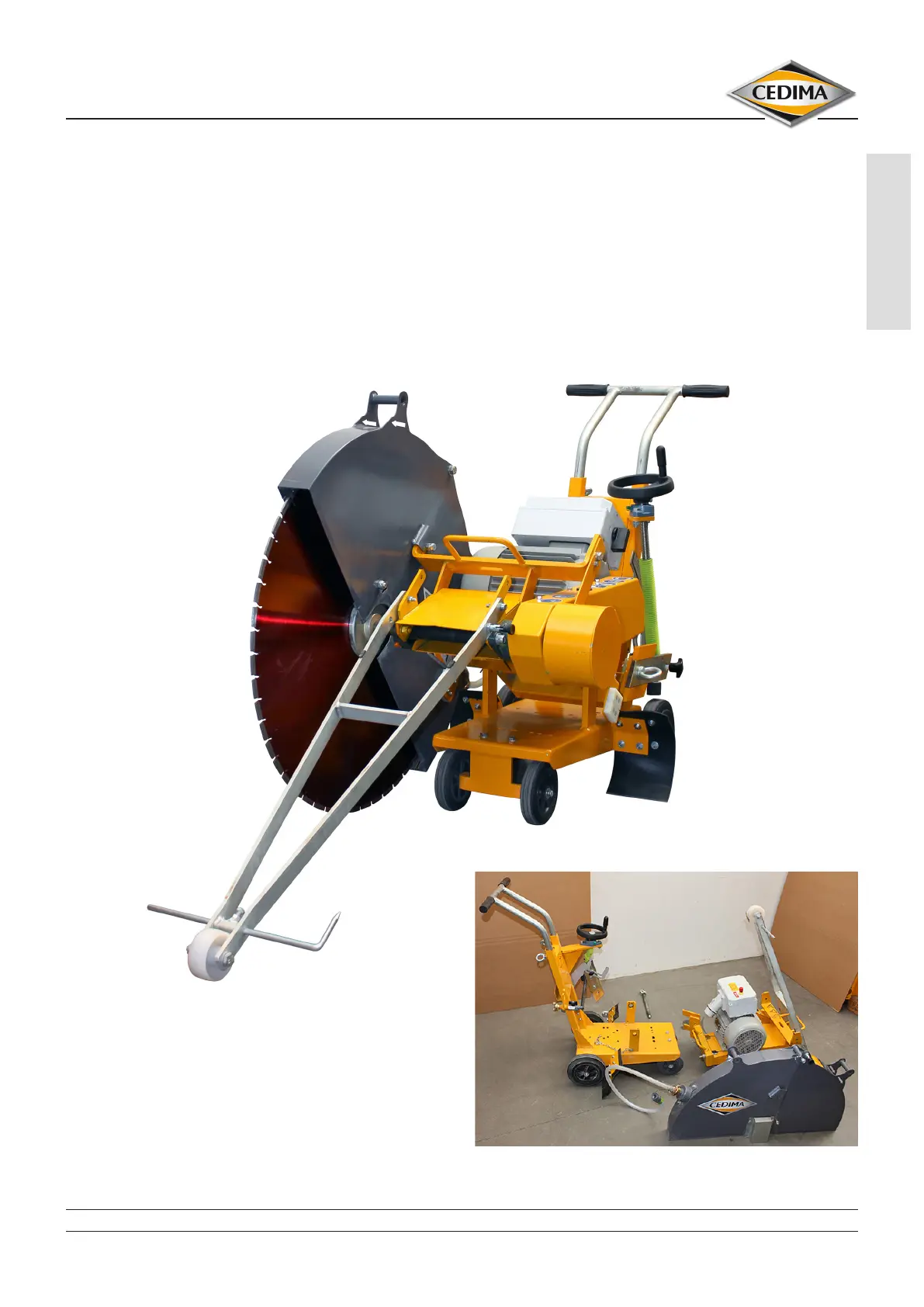

Figure 2.1
Separated into three assemblies Figure 2.2
