Description of the joint cutter CF-22 E.800
The cutting shaft, and with it the saw blade, is driven by an
electric motor via V-belts.
The blade can be mounted on the right or left side.
Theblade guard can be repositioned for this purpose.
Feed is achieved by pushing the adjustable push handle.
The saw blade is lowered and raised by means of a lockable
hand crank and a trapezoidal threaded spindle.
The cutting depth can be progressively adjusted up to
320mm.
The cutting shaft is mounted in two self-aligning pedestal
bearings. The precision-engineered shaft has a 25.4mm
diameter blade mounting ange.
The front pointer is mounted on the joint cutter frame.
Itenables the user to cut accurately along a line.
The diamond saw blade is supplied with pressurized water
via the Geka coupling and an adjustable shut-o valve.
The drive unit and cutting shaft's speed have been
designed to provide the best possible conditions for
cutting with CEDIMA® diamond saw blades.
For cutting, we recommend CEDIMA® diamond saw blades
which ensure protection of the joint cutter due to their
ease of cutting and their smooth movement.

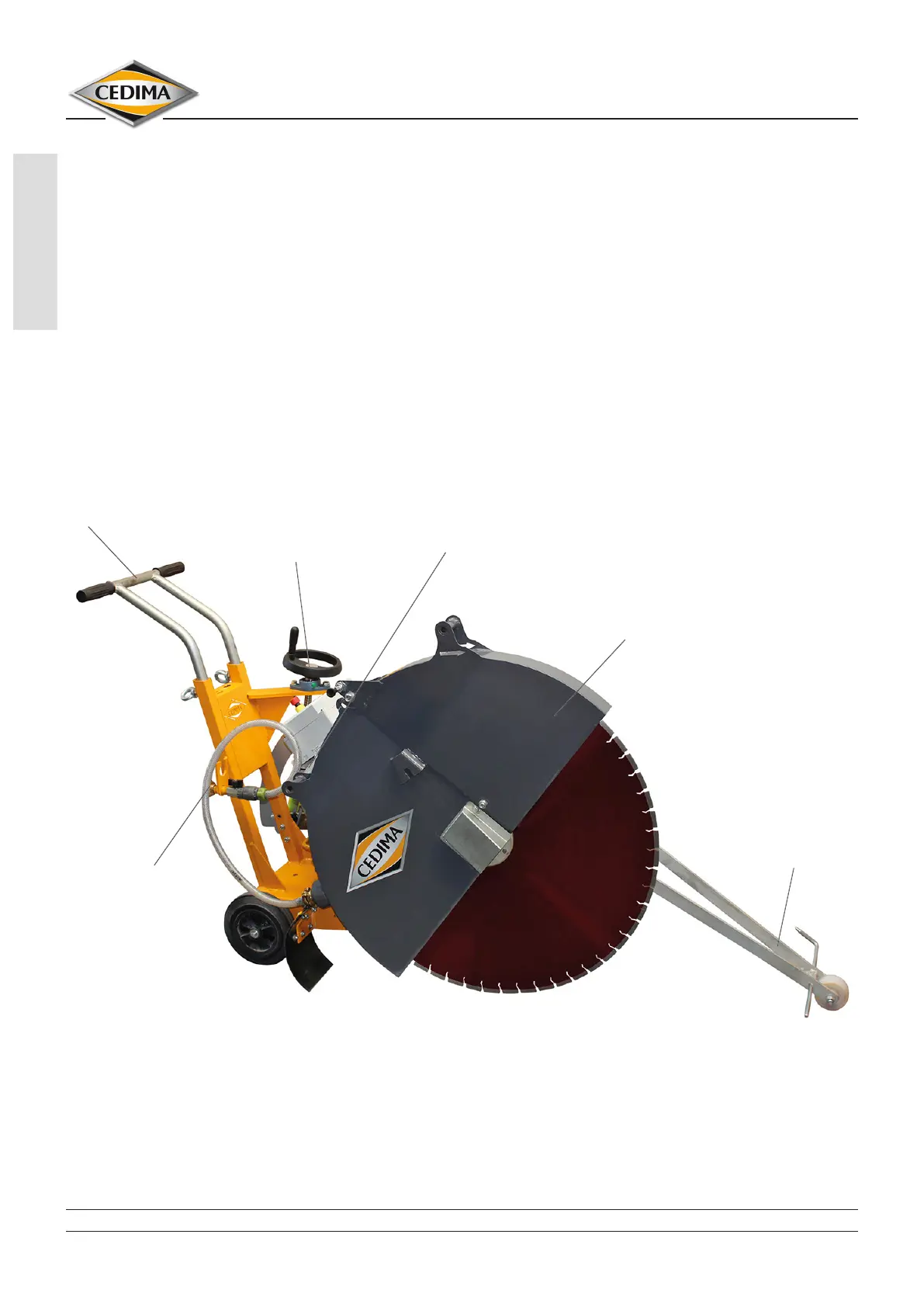

Figure 2.3
Visor
Lockable hand
crank for cutting
depth adjustment
Geka water
connection
with shut-o
valve
Powerful
electric motor
Blade guard
Adjustable/removable push
handle
