6
EN
NewTom GO 2D/3D - TECHNICAL MANUAL
COVER, HANDLES, MIRROR REMOVAL

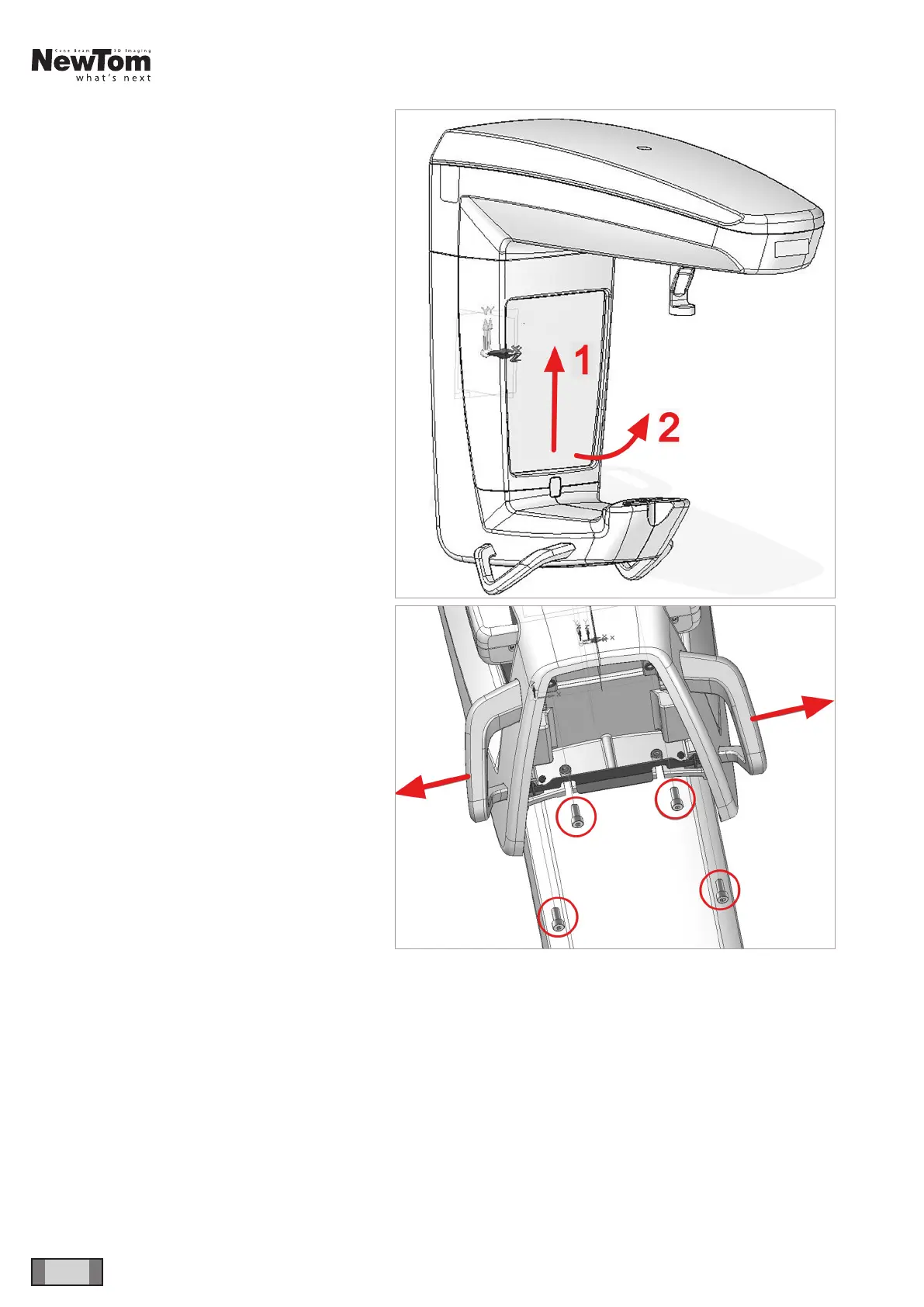

2.3 MIRROR
Slightly press the mirror against the column, move the
mirror upwards and turn it outwards to remove it.
2.4 HANDLES
Remove the accessory drawer and loosen the hi-
ghlighted screws to remove the handles.
