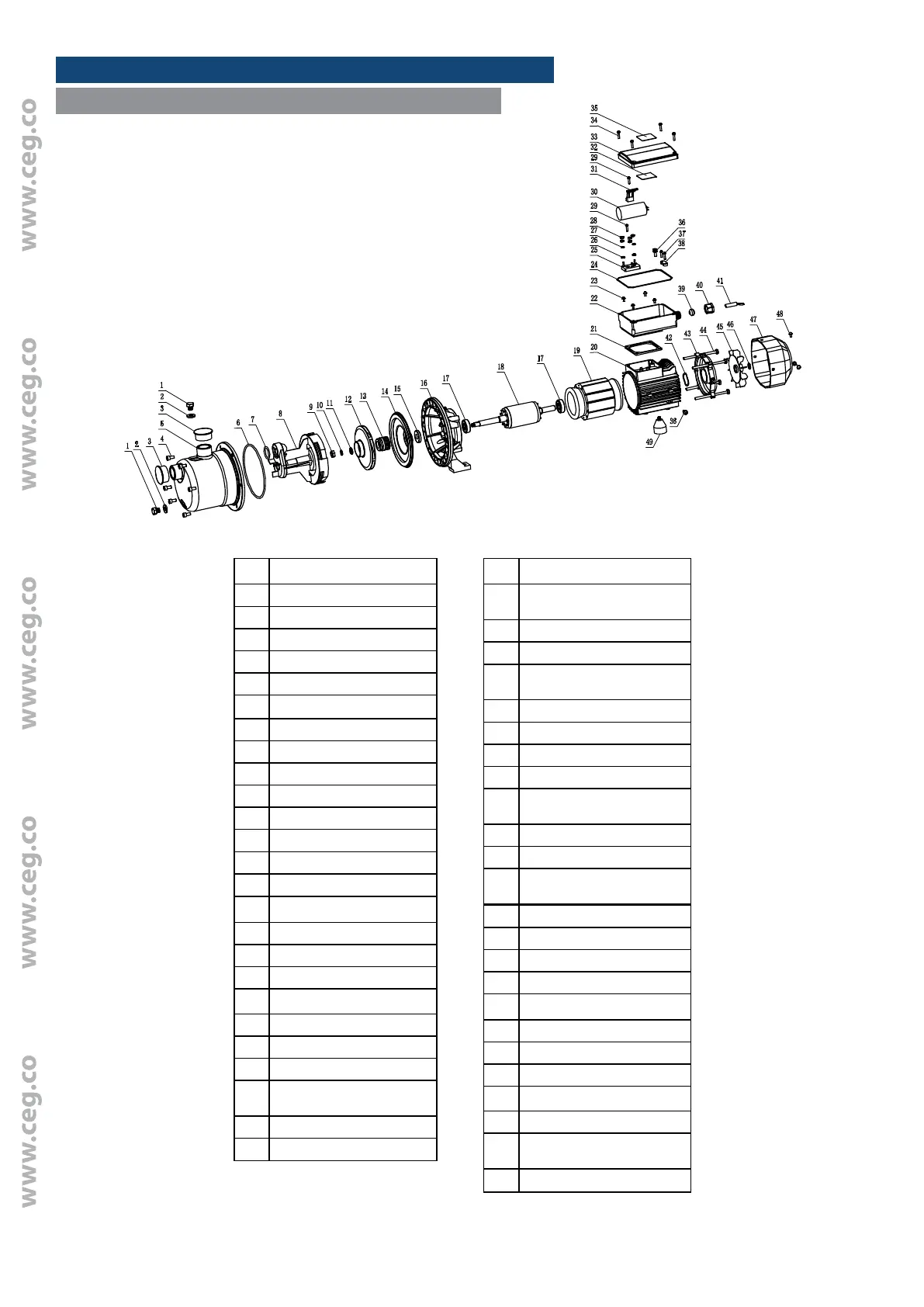

SPARE PARTS
ECOJET 500 STAINLESS STEEL SELF-PRIMING JET PUMP
Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products
which may dier slightly from those illustrated and described in this publication.
16
NOTE: When ordering any spare parts, please state all nameplate data.
ECOJET 500 STAINLESS STEEL SELF-PRIMING JET PUMP
No.
Name
1 Plug M10x1.25
2 Washer
3 Dust cap
4 Inside hexagonal bolt M6x12
5 Pump housing component
6 O-Ring d131x3.5
7 O-Ring d23.8x3.1
8 Ejector
9 Hexagonal nut M8
10 Spring Washer Φ8
11 Washer Φ8
12 Impeller
13 Mechanical Seal
No.
Name
26
Serrated lock washer external
teeth Φ4
27 Washer Φ4
28 Hexagonal nut M4
29
Cross recessed pan head tapping
screws ST3.5x12
30 Capacitor 10uF/450V
31 Capacitor Gland
32 Wiring diagram
33 Upper part of terminal box
34
Cross recessed pan head tapping
screws ST3.5x16
35 Name plate
36 Cross recessed pan screw M5x12
37
Cross recessed pan head tapping
screws ST3.5x16
14 Pump Cover
15 B type shaft seal ring
16 Front cover
17 Bearing 6201
18 Rotor assembly
19 Stator assembly
20 Motor base
21 Terminal box pad
22 Bottom part of terminal box
23
Cross recessed pan head screw
and washer assemblies
24 O-Ring d120x2
25 Connection pole
38 Cable gland
39 Nut plug for terminal box
40 Junction box nut
41 Cable
42 The three wave D32
43 Back cover
44 Hexagonal bolt M5x125
45 Fan
46 Shaft spring pad d11
47 Fan cover
48
Cross recessed pan head screw
and washer assemblies M4x8
49 Bracket
