CEG ECOJET 500PC - Product Description; Technical Data

Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products
which may dier slightly from those illustrated and described in this publication.
4

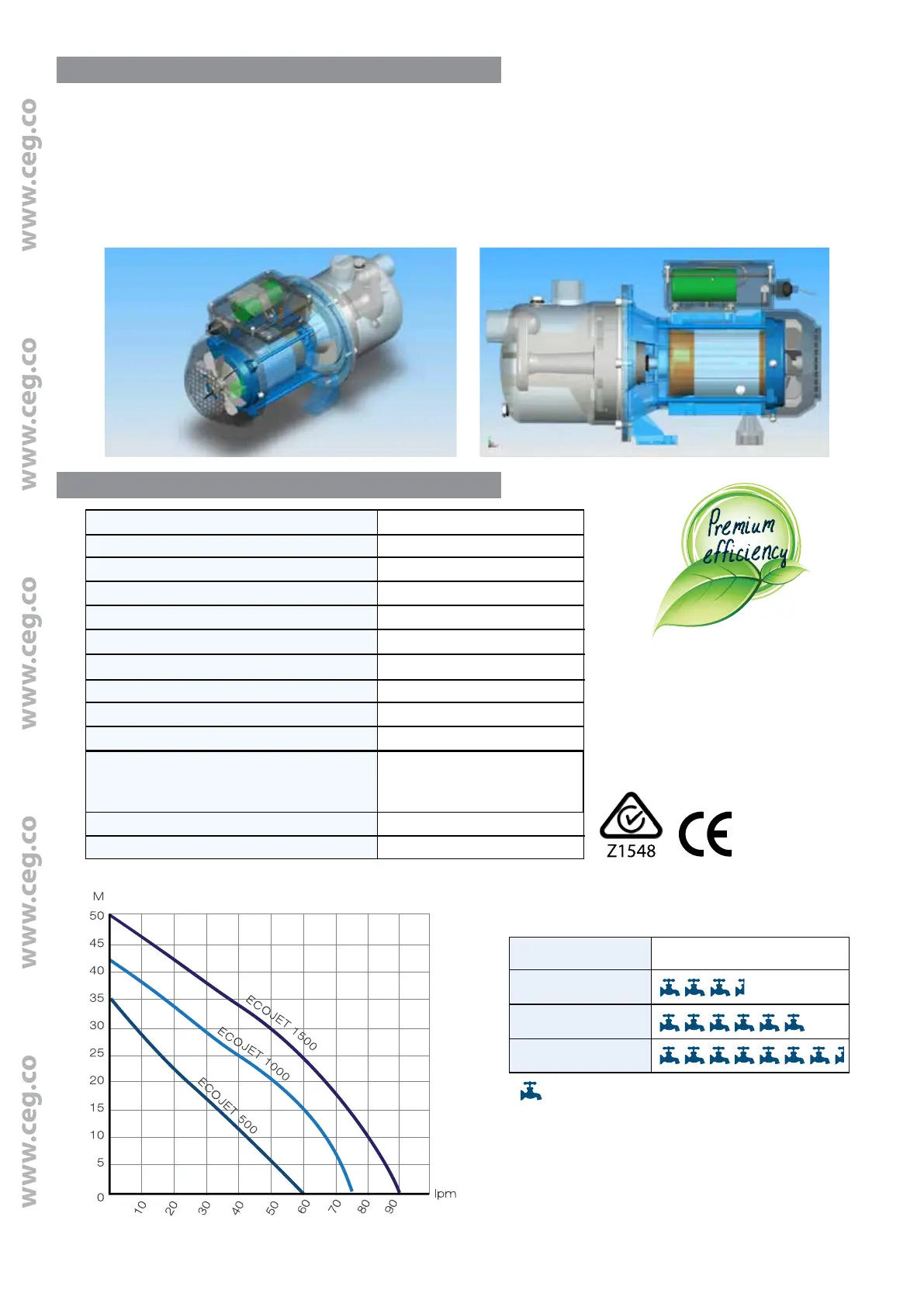

TECHNICAL DATA
Water temperature range min / max 5°C- 40°C
Maximum suction lift 8.5 m
Max working pressure 8 bar
Inlet/outlet pipe connection 25 mm BSP / 1” Inch BSP
Motor speed 2900 RPM
Insulation Class F
IP protection IP 55
Sound pressure Level 61 dBA
Total Head
Capacity
Performance Curve
ECOJET 500PC
ECOJET 1000PC
ECOJET 1500PC
Capacity
* = 10 lpm at 1.5bar (22psi)
Model
Max particle size
1 mm (non-abrasive material)
Electrical supply
220V - 240V, 50 Hz
With the ever increasing need for water and electricity to meet global demand and the continual increase in energy costs to
the consumer, thought had to be put into a new domestic water pump design with premium eciency. The method for design
of the ECOJET Premium Eciency Series was developed by focusing on the mechanisms causing water hydraulic loss. The
ECOJET was created for the Australian and New Zealand market using the latest CAD water hydraulic 3D design technology
and manufacturing processes that are currently only found in large commercial models. The ECOJET Series Premium Eciency
range are self-priming. All parts in contact with the liquid are made from long life, corrosion resistant materials such as stainless
steel AISI 304 and glass reinforced polymer. The ECOJET’s motor has an automatic built-in thermal overload protector that
switches o the motor on overload, then on again after a cooling down period.
PRODUCT DESCRIPTION
Electromagnetic compatibility (EMC)
EN 60335-2-41
EN 61000-6-1
EN 61000-6-3
Table 1.1
Mechanical Seal Carbon / Ceramic
Ambient temperature 0°C - 50°C
Electrical connection
AS/NZ plug tted to 1.5m lead
File Name: Ecojet_Series_CAD_left_top.SLD
File Description: CEG 3D CAD Water Hydraulic Design
File Name: Ecojet_Series_CAD_right_side.SLD
File Description: CEG 3D CAD Water Hydraulic Design
SolidWorks 2014 SolidWorks 2014
Graph 1.0
Table 1.0
