NOTE: When ordering any spare parts, please state all nameplate data.

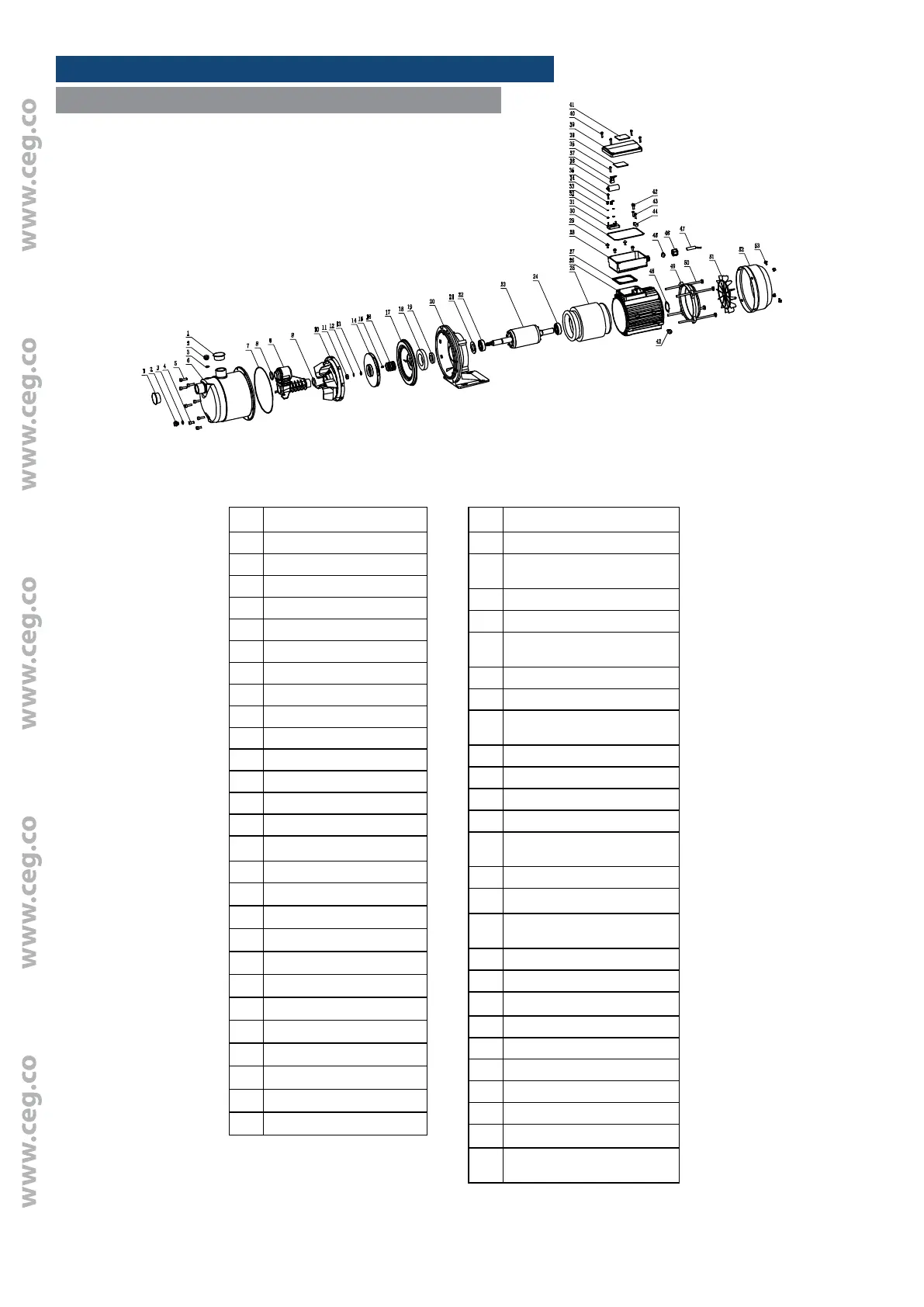

SPARE PARTS
No.
Name
1 Dust cap G2”
2 Air drain plug M10x1.25
3 Washer d9.2x2.4
4 Inside hexagonal bolt M6x12
5 Inside hexagonal bolt M6x18
6 Pump housing component
7 O-Ring d164x4.5
8 O-Ring d24x3.1
9 Ejector
10 Guide plate
11 Hexagonal nut M8
12 Spring Washer Φ8
13 Washer Φ8
14 Impeller Φ130 x Φ37.5x 5
15 Key C4x10
16 Mechanical Seal 560A-15
17 Pump Cover
18 Silent Block
19 B type shaft seal ring d15
20 Front cover
21 Rubber Gesket
22 Bearing 6202-2RS
23 Rotor assembly
24 Bearing AC6202-2RS
25 Stator assembly
26 Motor Base
27 Terminal box pad
No.
Name
28 Bottom part of terminal box
29
Cross recessed pan head screw and
washer assemblies M4x8
30 O-Ring d120x2
31 Connection pole
32
Serrated lock washer external
teeth Φ4
33 Washer Φ4
34 Hexagonal nut M4
35
Cross recessed pan head tapping
screws ST3.5x12
36 Capacitor 20uFx12
37 Capacitor Gland
38 Wiring diagram
39 Upper part of terminal box
40
Cross recessed pan head tapping
screws ST3.5x16
41 Name plate
42 Cross recessed pan screw M5x12
43
Cross recessed pan head tapping
screws ST3.5x16
44 Cable pressing block
45 Nut plug for terminal box
46 Junction box nut
47 Cable
48 The three wave D35
49 Back Flange
50 Hexagon Bolt M5x142
51 Fan
52 Fan cover
53
Cross recessed pan head tapping
screw and washer assemblies M4x8
ECOJET 1500 STAINLESS STEEL SELF-PRIMING JET PUMP
