CEG ECOJET 500PC - Ecojet 1000 Stainless Steel Self-Priming Jet Pump

Every care has been taken to ensure the accuracy of the information contained in this publication, but due to continuous development and improvement the right is reserved to supply products
which may dier slightly from those illustrated and described in this publication.
17
NOTE: When ordering any spare parts, please state all nameplate data.

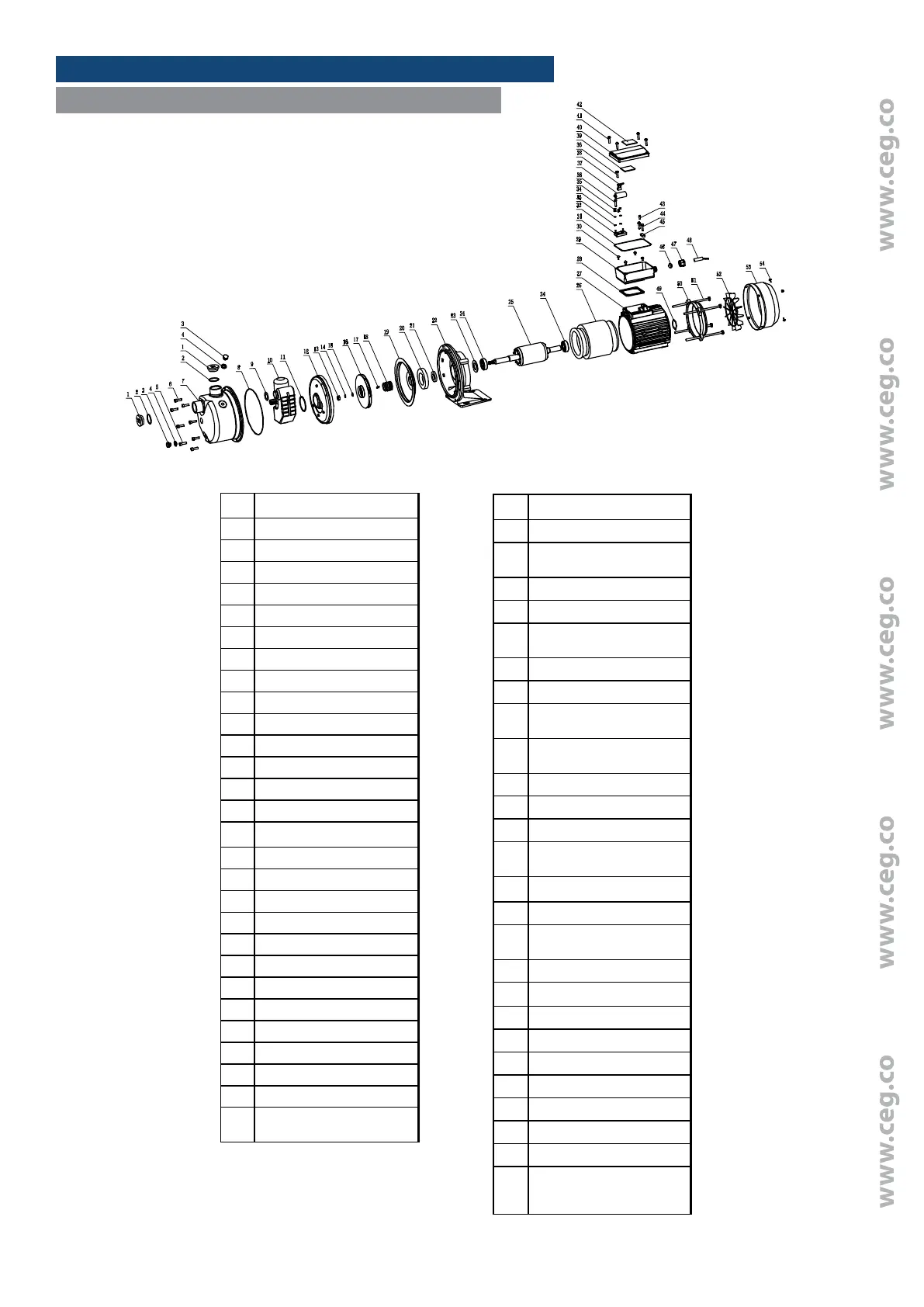

No.
Name
1 Dust cap
2 Dust proof
3 Air drain plug M10x1.25
4 Washer
5 Inside hexagonal bolt M5x10
6 Inside hexagonal bolt M5x18
7 Pump housing component
8 O-Ring d151x4.5
9 O-Ring d23.8x3.1
10 Ejector
11 Seal pad
12 Guide vane
13 Hexagonal nut M8
14 Spring water Φ8
15 Washer Φ8
16 Impeller
17 Key C4x5
18 Mechanical Seal 560A-15
19 Pump Cover
20 Silent Block
21 B type shaft seal ring
22 Front cover
23 Rubber Gesket
24 Bearing 6202-2RS
25 Rotor assembly
26 Stator assembly
27 Motor Base
28 Terminal box pad
No.
Name
29
Bottom part of terminal box
30
Cross recessed pan head screw
and washer assemblies M4x8
31
O-Ring d120x2
32
Connection pole
33
Serrated lock washer external
teeth Φ4
34
Washer Φ4
35
Hexagonal nut M4
36
Cross recessed pan head
tapping screws ST3.5x13
37
Capacitor 20uF/450V
(Φ40x63)
38
Capacitor Gland
39
Wiring diagram
40
Upper part of terminal box
41
Cross recessed pan head
tapping screws ST3.5x16
42
Name plate
43
Cross recessed pan screw M5x12
44
Cross recessed pan head
tapping screws ST3.5x16
45
Clamp
46
Nut plug for terminal box
47
Junction box nut
48
Cable 3x1.0mm
49
The three wave Φ35
50
Back Flange
51
Hexagon Bolt M5x142
52
Fan
53
Fan cover
54
Cross recessed pan head
tapping screw and washer
assemblies M4x8
SPARE PARTS
ECOJET 1000 STAINLESS STEEL SELF-PRIMING JET PUMP
