ASSEMBLY INSTRUCTION

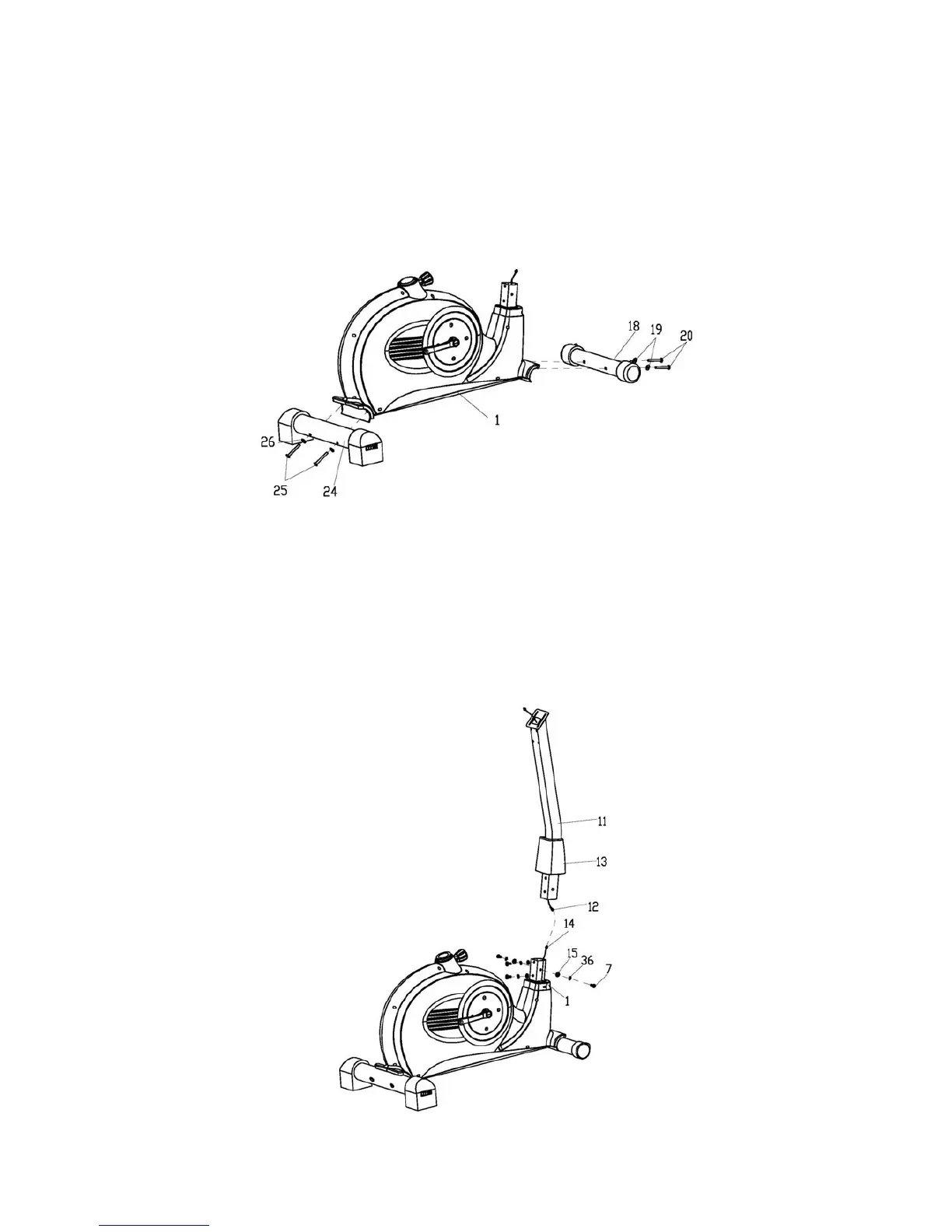

STEP 1
Attach the front Stabilizer (18) to the Main frame (1) with the Allen bolts (20) and Arc washers (19),
and then fix the rear Stabilizer (24) to the Main frame (1) with the Allen bolts (25) and Arc washers
(26) as shown.
Note: The Leveler end caps of the rear Stabilizer can be ADJUSTED to keep the equipment stable.
STEP 2
A: Slip the Mast shield (13) onto the Handlebar post (11);
B: Connect the lower Sensor wire (14) to the extension Sensor wire (12);
C: Fix the Handlebar post (11) on the Main frame (1), using the Allen bolts (7), Spring washers (36),
and Flat washers (15) as shown.
D: Slip down the Mast shield (13) and fit in the place.
