- 6 -
STEP 3

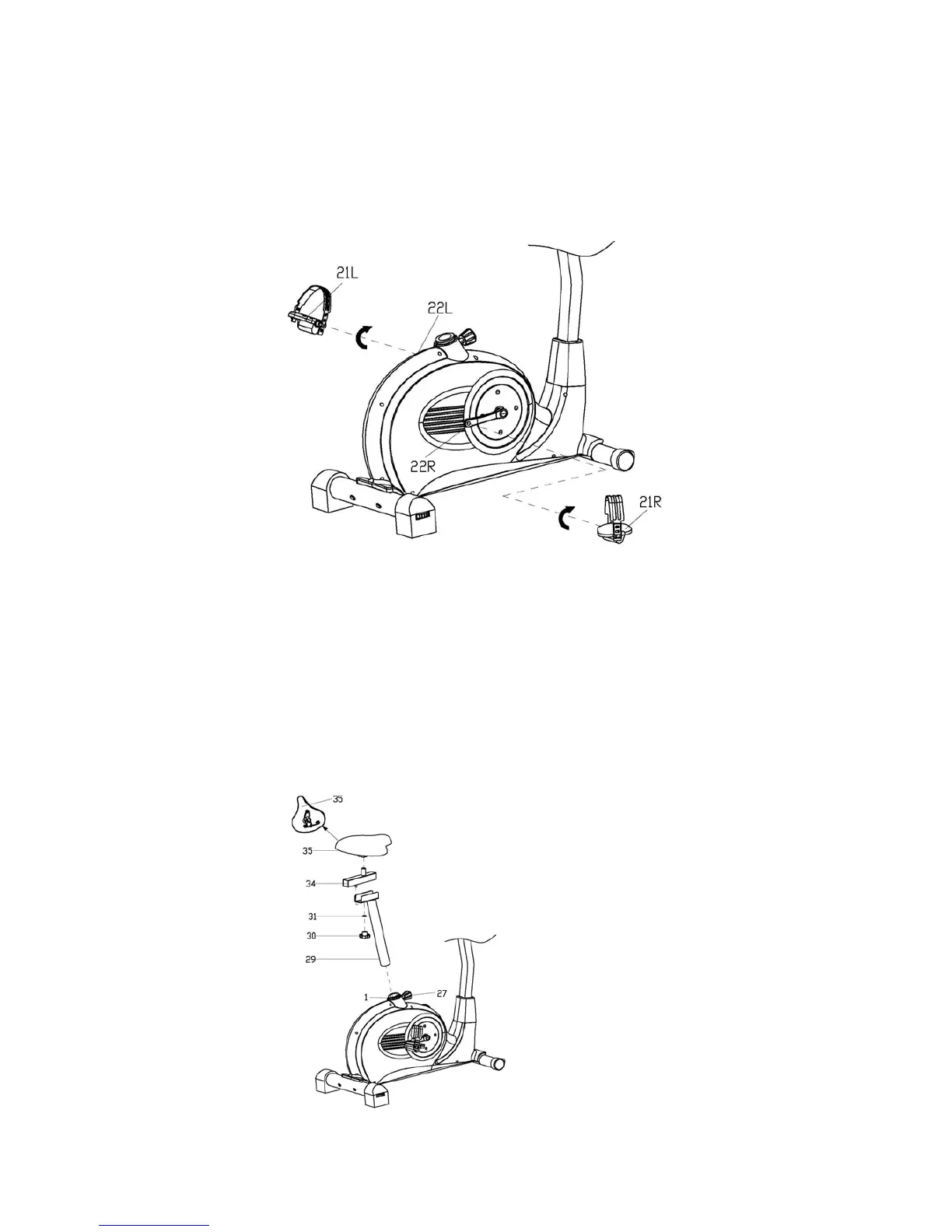

Attach the Pedals (21) to the Cranks (22) respectively, viewed from the rider’s exercising position.
Always make sure the Pedals are securely tightened before any exercise.
Note: Both pedals are engraved with L for left and R for right.
To tighten turn the Left pedal COUNTERCLOCKWISE and the Right pedal CLOCKWISE.
STEP 4
Attach the Saddle (35) to the horizontal Saddle post (34), secured the nut under the Saddle.
And then fit the horizontal Saddle post to the vertical saddle post (29), secured it with the Flat
washer (31) and Knob nut (30) as shown. Insert the vertical saddle post (29) into the Main frame (1),
secured with the Pop-pin Knob (27) at a proper height as shown.
NOTE: Spin the Pop-pin Knob (27), loosen the Pop-pin Knob (27) and pull it out, and adjust to the
suitable height according to the users’ height, and then tighten the Pop-pin Knob (27).
