CEM DT-337 - Page 11

10
12V
AC
80A
4A
80A
4A
OFF
V
600V
Hz/
%
V
V
mV

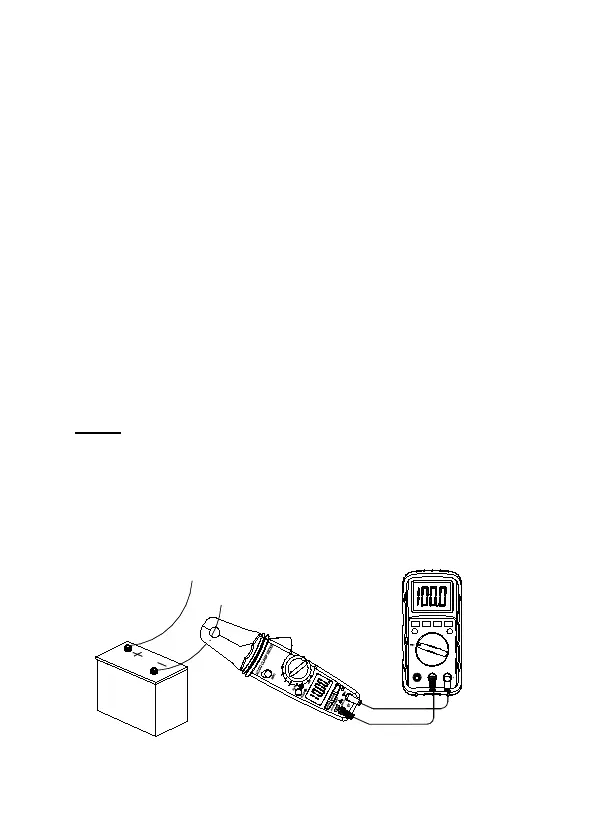

Analog Signal Output
1. Switch the function selector to DCA or ACA range.
2. Connect red test lead to “V
Ω
” terminal and black one to
the “ COM ” terminal.
3. Connect tip of the test leads to the meter or
oscilloscope input terminal.
4. Open the clamp by pressing the jaw-opening handle
and insert the cable to be measured into the jaw.
5. Close the clamp and get the analog voltage signal from
the meter.
Note:
If measuring DC via clamp, signal output will be DC voltage.
If measuring AC via clamp, signal output will be DC voltage.
If measuring AC via clamp, signal output will be AC voltage.
